Tractor · 2016Unverified

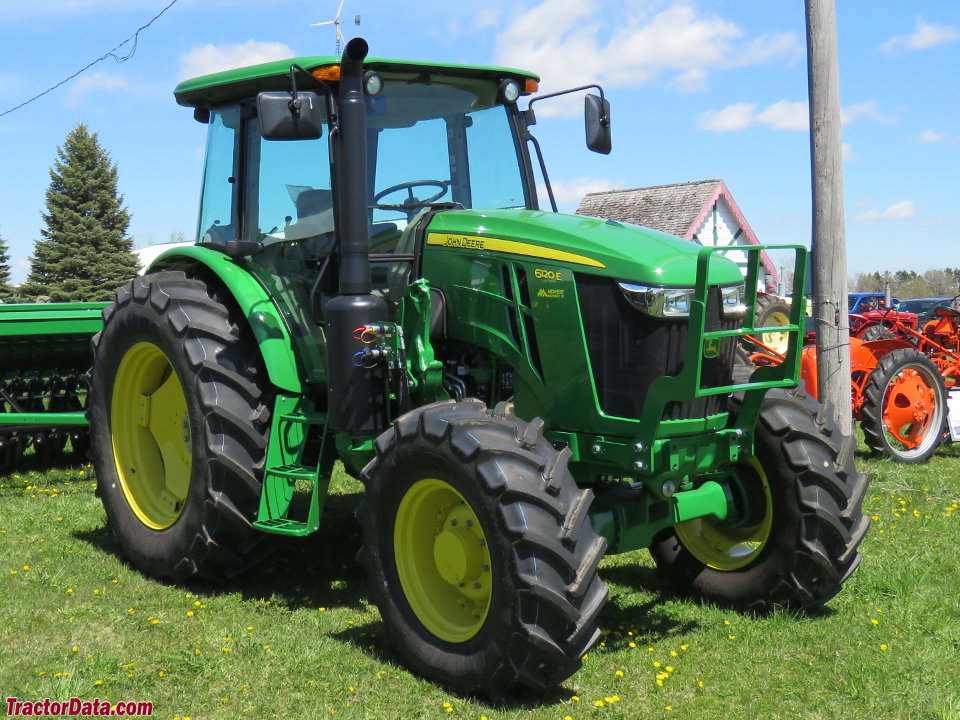

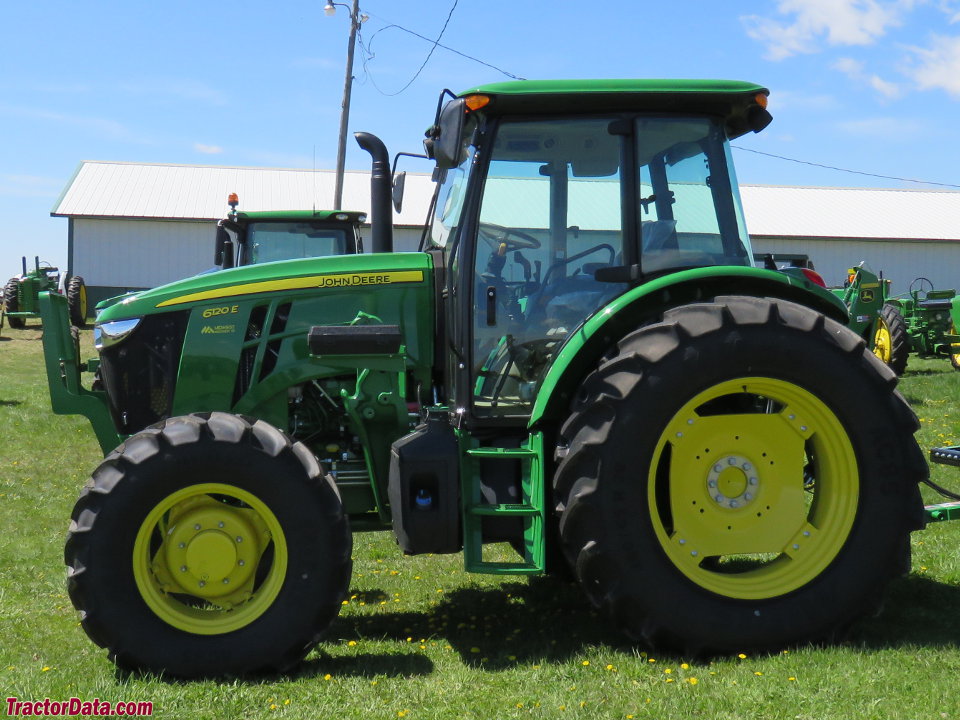

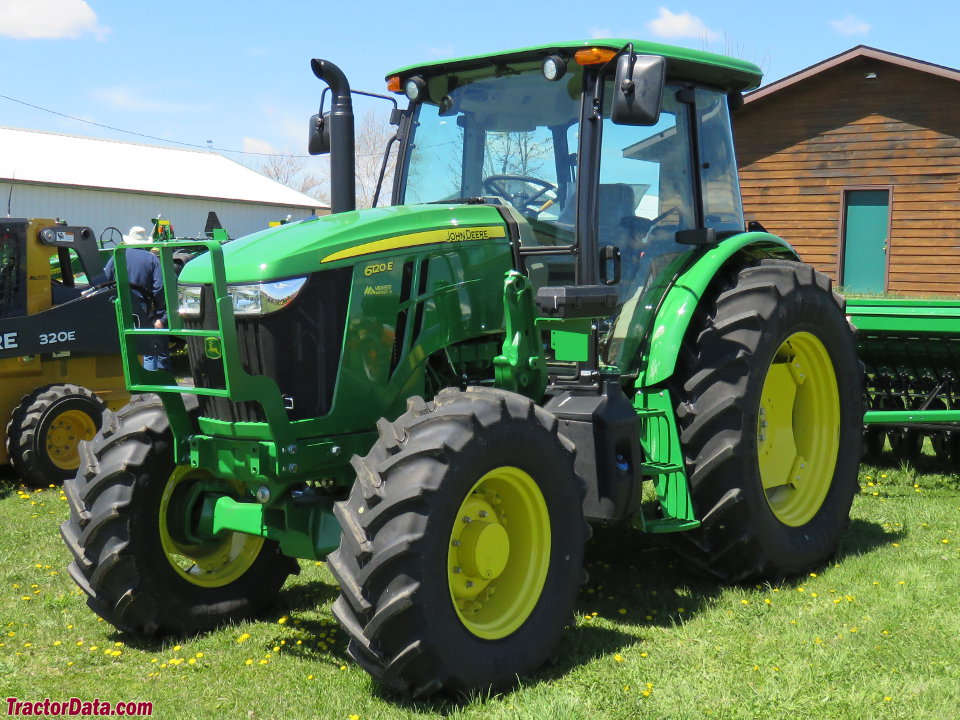

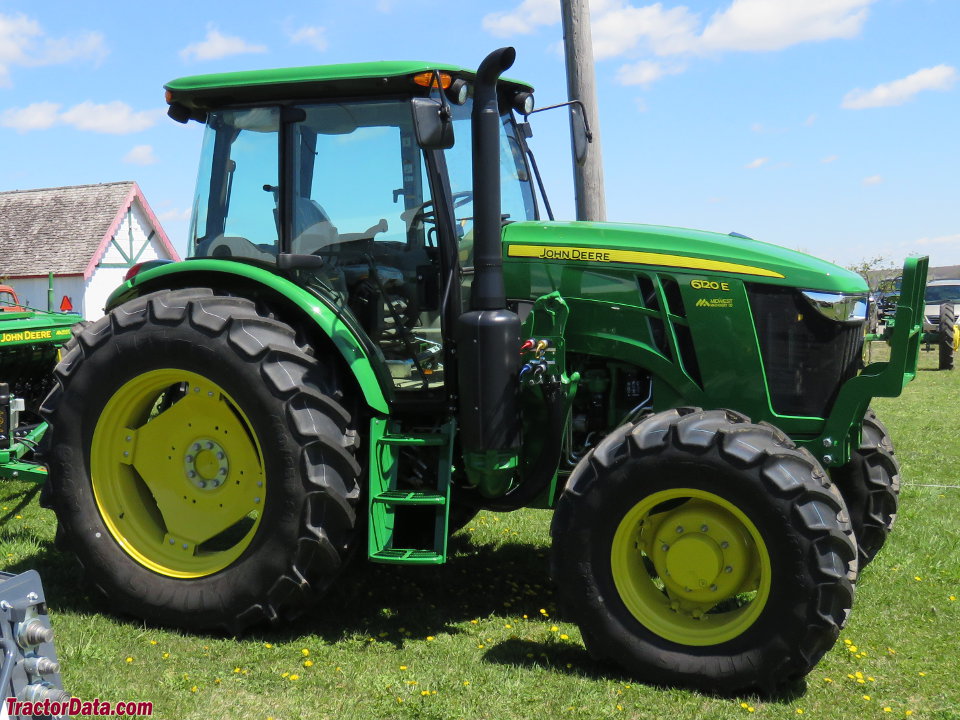

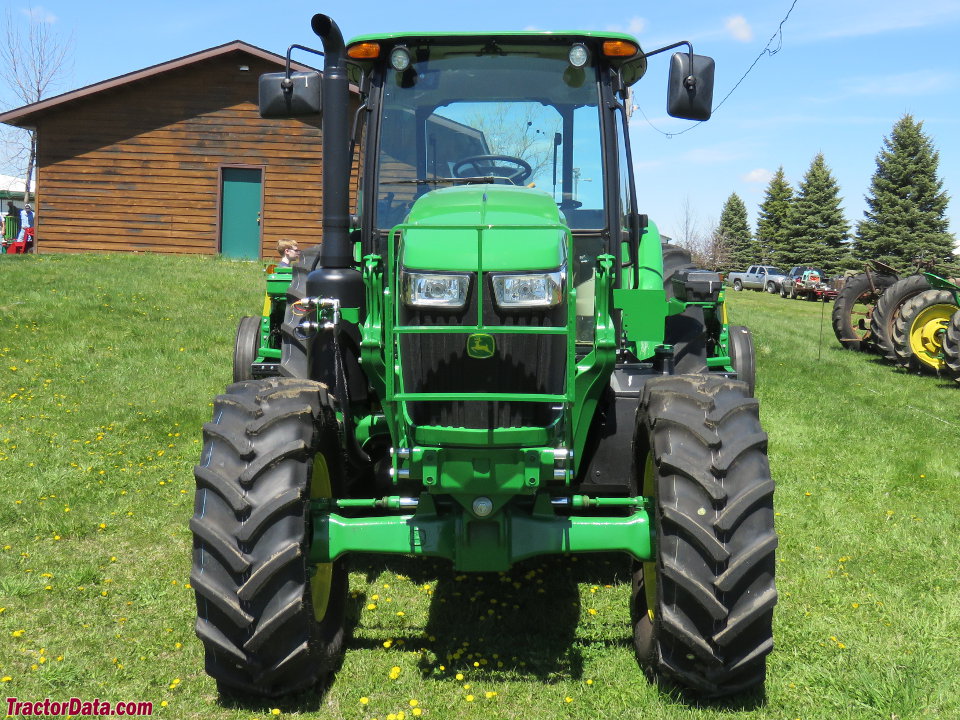

John Deere 6120E
John Deere 6120E — 6E Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Saltillo, MexicoReference
Original price$69,650 (2015 ROPS )Reference
Original price$79,014 (2015 Cab )Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
4WD Differential locklimited-slip frontReference
Two-post foldable ROPS. Cab optional with air-conditioning. AutoTrac ((Optional steering kit))Reference
Variants
6120EHhigh-cropReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)89.5 kWReference
John Deere PowerTech PWLReference
wastegate turbocharger with air-to-air aftercooling dieselReference
4-cylinder 16-valveReference
inlineReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier IVReference
Emission controlcooled exhaust-gas recirculationReference
Rated Power (gross)89.5 kWReference
Fuel systemelectronic high-pressure common railReference
Air cleanerdual stage dryReference
Compression16.8:1Reference
Rated RPM2200Reference
Idle RPM900-2275Reference
Operating RPM1800-2200Reference
Torque493.6 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
24-speed two-speed power shiftReference
TransmissionPowrReverserReference
Gears12 forward and reverseReference
Clutchwet discReference
Four gears (1-4) in four ranges (A-D) with shuttle lever. Range upshifts B-C and C-D, plus downshift D-C, are synchronized.Reference
TransmissionPowrReverser Hi-LoReference
Typetwo-speed power shiftReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)76.1 kWReference
Typeopen centerReference
Pressure195.0 barReference
Valves2 to 3Reference
Pump flow75.7 lpmReference
Rear TypeIIReference
Controldraft sensingReference
Rear lift (at 24"/610mm)249 kgReference
Rear lift (at 24"/610mm)3311 kgReference
Rear Armstelescopic draft armsReference
DrawbarCat. 2Reference
DrawbarCat. 2 HDReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2085Reference
Engine RPM1000@2067Reference
Dimensions
2WD Wheelbase245 cmReference
4WD Wheelbase245 cmReference
Flange rear axleReference
2WD Front tread153 to 204 cmReference
4WD Front tread151 to 201 cmReference
Ballasted6463 kgReference
Max Drawbar2494 kgReference
Max Drawbar3311 kgReference
6120E Serial Number Location
Serial number plate on the right side of the 6120E tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
Max capacity7999 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
