Tractor · 2008Unverified

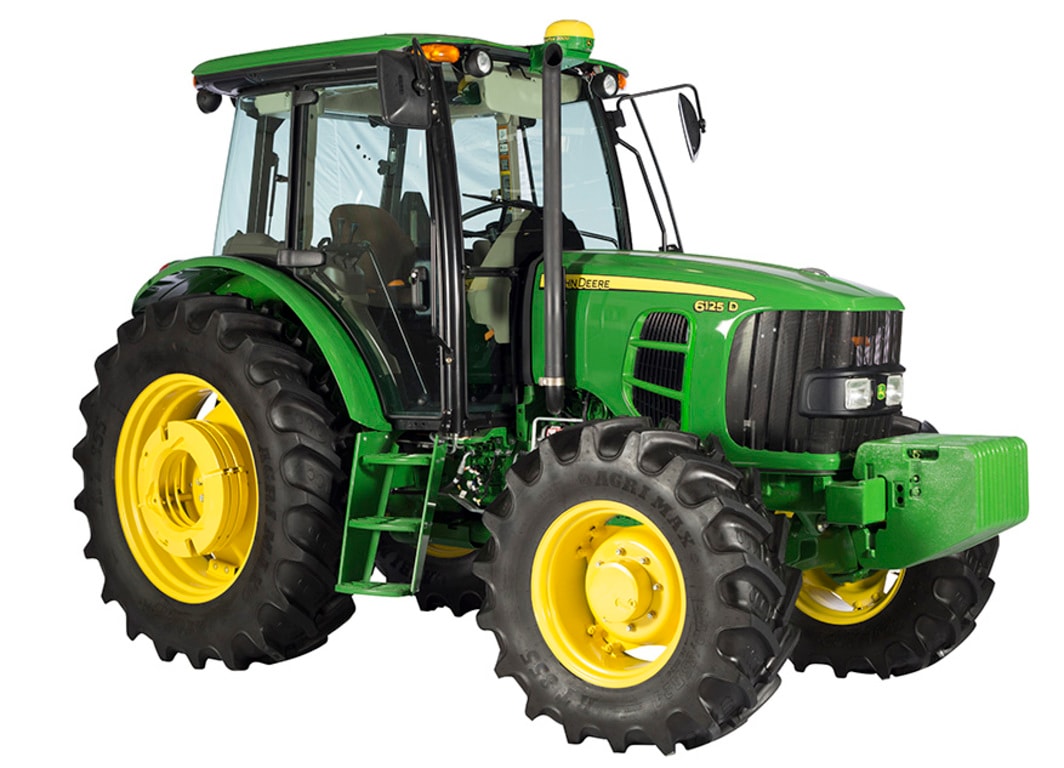

John Deere 6125D

Name: John Deere 6125D
Brand: John Deere

John Deere 6125D — 6D Series · 123 hp. Reference specifications; pending source verification.

The John Deere 6125D is a tractor with a rating of approximately 123 hp, positioning it at the higher power end of its class. It was manufactured in 2008. The tractor is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, and four-wheel drive with a hydrostatic transmission. Its operating weight is stated at 3870 kg, and it is suited for operations ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

123 hp

Weight

3870 kg

Catalogue coverage

Variants represented

Richest spec table

83 rows

Recorded power

123 hp

Recorded weight

3870 kg

Transmissions

9-speed unsynchronized gear

Production years

2008-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Saltillo, MexicoReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Engine (gross)91.7 kWReference

John Deere 4045H Power TechReference

turbocharged intercooled dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

Rated Power (gross)91.7 kWReference

Air cleanerdry element with pre-cleanerReference

Compression17:1Reference

Rated RPM2100Reference

Idle RPM950-2275Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity16.5 LReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity12.3 LReference

Oil change250 hReference

Oil change500 h (JD TorqGARD oil)Reference

Transmission

9-speed unsynchronized gearReference

9-speed partially synchronziedReference

TransmissionJohn Deere Collar ShiftReference

Typeunsynchronized gearReference

Gears9 forward and 3 reverseReference

Clutchdry discReference

Oil capacity57.9 LReference

Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Tractor must be stopped, and clutch used, to shift gear or range.Reference

TransmissionJohn Deere Top Shaft Syncronized (TSS)Reference

Typepartially synchronziedReference

Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shifts between gears, including to reverse, are synchronized using the clutch. Shifts between ranges are not synchronized, the operator must stop the tractor and use the clutch.Reference

PTO & Hydraulics

PTO (claimed)78.3 kWReference

Hydraulic system57.9 LReference

Typeopen centerReference

Capacity57.9 LReference

Pressure195.1 barReference

Rear valves2 to 3Reference

Pump flow66.6 lpmReference

Steering flow26.1 lpmReference

Rear TypeIIReference

Controlmechanical lower linkReference

Rear lift (at ends)3469 kgReference

Rear lift (at 24"/610mm)3150 kgReference

Rear PTOindependentReference

Clutchmechanical dry discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2100Reference

Engine RPM1000@2100Reference

Capacities

Fuel157.8 LReference

Front axle6.5 LReference

Front hubs2.0 LReference

Dimensions

Wheelbase234 cmReference

Weight3870 kgReference

Front tire14.9-24Reference

Rear tire23.1-30Reference

Standard tires (ag)Front: 14.9-24. Rear: 23.1-30Reference

Length421 cmReference

Width182 cmReference

Height (cab)273 cmReference

Height (exhaust)269 cmReference

Shipping weight3870 kgReference

Max weight6899 kgReference

Rear axle1828 mmReference

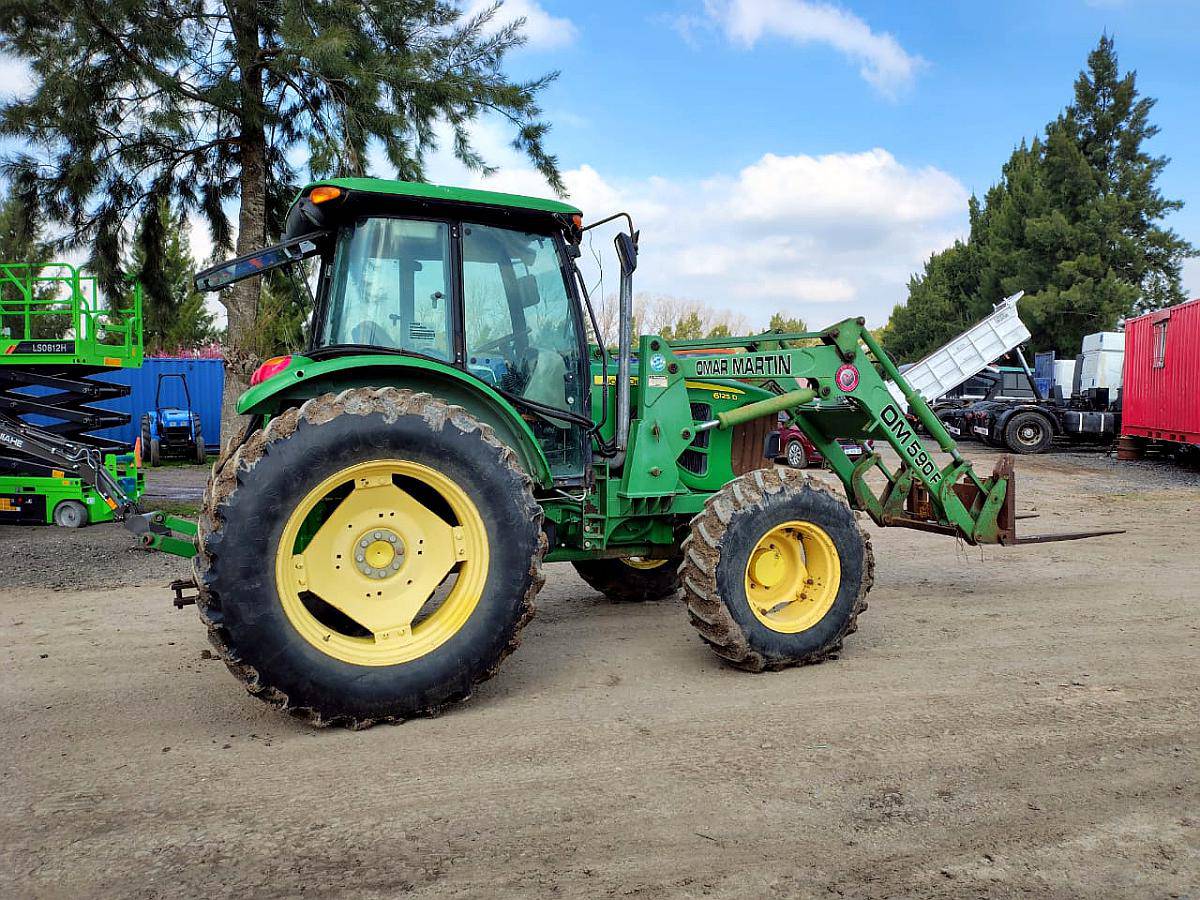

John Deere 6125D attachments

front-end loaderReference

6125D Serial Numbers

Location:Right side of main tractor frame above front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70 (ROPS)Reference

Charging amps90 (cab)Reference

Battery CCA550Reference

Battery volts12Reference

Battery AH102Reference

Battery Group27Reference

Speeds

With 18.4-34 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
