Tractor · 2010Unverified

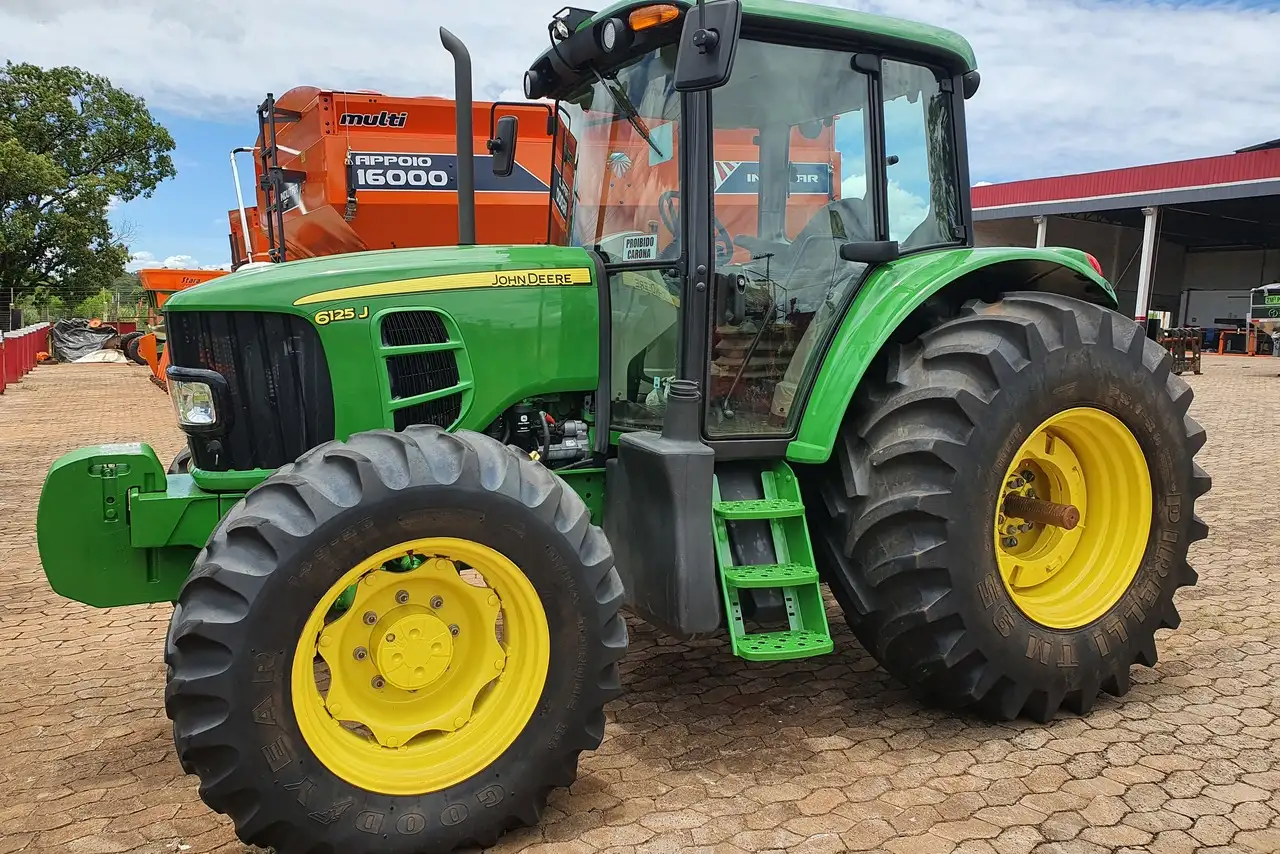

John Deere 6125J
John Deere 6125J — 6J Series · 106 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
106 hp
Weight
9678 to 10850 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Montenegro, BrazilReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank172.0 LReference
Fuel tank306.6 LReference
Engine93.2 kWReference
John Deere 6068 PowerTechReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power93.2 kWReference
Fuel systemrotary injection pumpReference
Rated RPM2300Reference
Torque496.0 NmReference
Torque RPM1400Reference
Starter volts12Reference
Coolant capacity25.0 LReference
Oil capacity19.0 LReference
Transmission
12-speed fully synchronizedReference
16-speed partial power shiftReference
TransmissionJohn Deere SyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutchhydraulic wet discsReference
Oil typeJD Hy-GardReference
Three synchronized gears (1-3) in four synchronized ranges (A-D).Reference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four power shift gears (1-4) in four synchronized ranges (A-D).Reference
PTO & Hydraulics
PTO (claimed)79.0 kWReference
Typepressure compensatedReference
Typeclosed center pressure-flow compensated optional (PFC)Reference
Pressure200.0 barReference
Valves2Reference
Pump flow65.0 lpmReference
Pump flow100.0 lpmReference
SCV flow60.0 lpmReference
SCV flow99.8 lpmReference
Oil typeJD Hy-GardReference
Rear TypeIIReference
Controlelectronic lower linkReference
Rear lift (at ends)3800 kgReference
Rear lift (at 24"/610mm)2550 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Rear PTO Type540Reference
Dimensions
Wheelbase264 cmReference
Weight9678 to 10850 poundsReference
Front tire14.9-26Reference
Rear tire23.1-30Reference
Standard tires (ag)Front: 14.9-26. Rear: 23.1-30Reference
Optional tires (ag)Front: 14.9-24. Rear: 23.1-30Reference
Optional tires (ag)Front: 14.9-24. Rear: 18.4-38Reference
Optional tires (ag)Front: 14.9-26. Rear: 18.4-38Reference
Optional tires (ag)Front: 16.9-24. Rear: 23.1-30Reference
Optional tires (ag)Front: 16.9-24. Rear: 18.4-38Reference
Optional tires (ag)Front: 12.4-36. Rear:Reference
Optional tires (ag)Front: 320/90R50. Rear:Reference
Optional tires (ag)Front: 14.9-24. Rear: 15.5-38Reference
Length491 cmReference
Height274 cmReference
Ground clearance50 cmReference
Flange rear axleReference
Bar rear axle86 by 2438 mmReference
Front tread161 to 215 cmReference
Rear tread180 cmReference
Rear tread165 to 240 cmReference
4389 kgReference
4921 kgReference
Ballasted6999 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery volts12Reference
Battery AH150Reference
Speeds
With 23.1-30 R1 rear tires.Reference
With 23.1-30 R1 rear tires. Reverse speeds are 15% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
