Tractor · 2013Unverified
John Deere 6125M
John Deere 6125M — 6M Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Max power
85.7 kW
Weight
5225 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Original price$74,324 (2014 SyncroPlus ROPS 2WD )Reference
Original price$101,397 (2014 AutoQuad Cab 4WD )Reference
Two- or four-wheel driveReference
Differential lockElectro-hydraulic rearReference
Differential locklimit-slip front (4WD)Reference

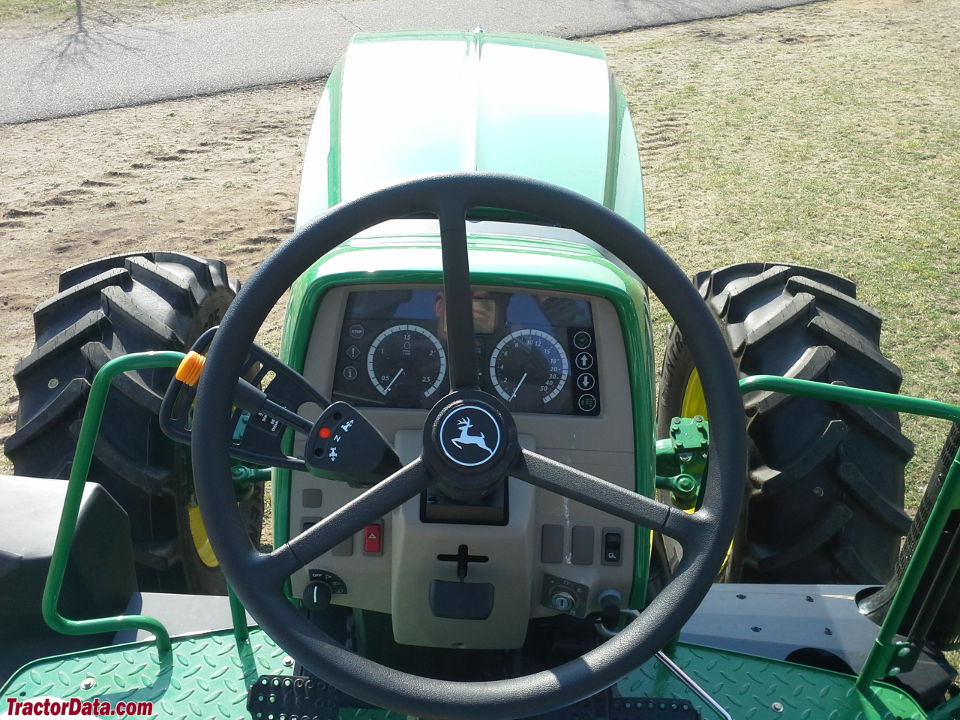

Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference

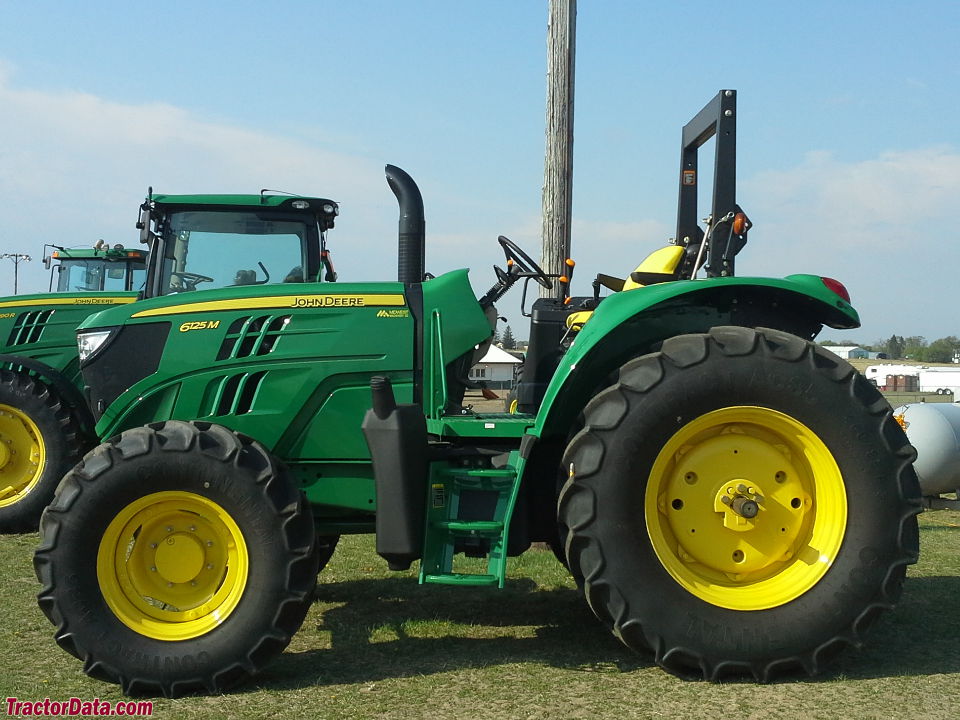

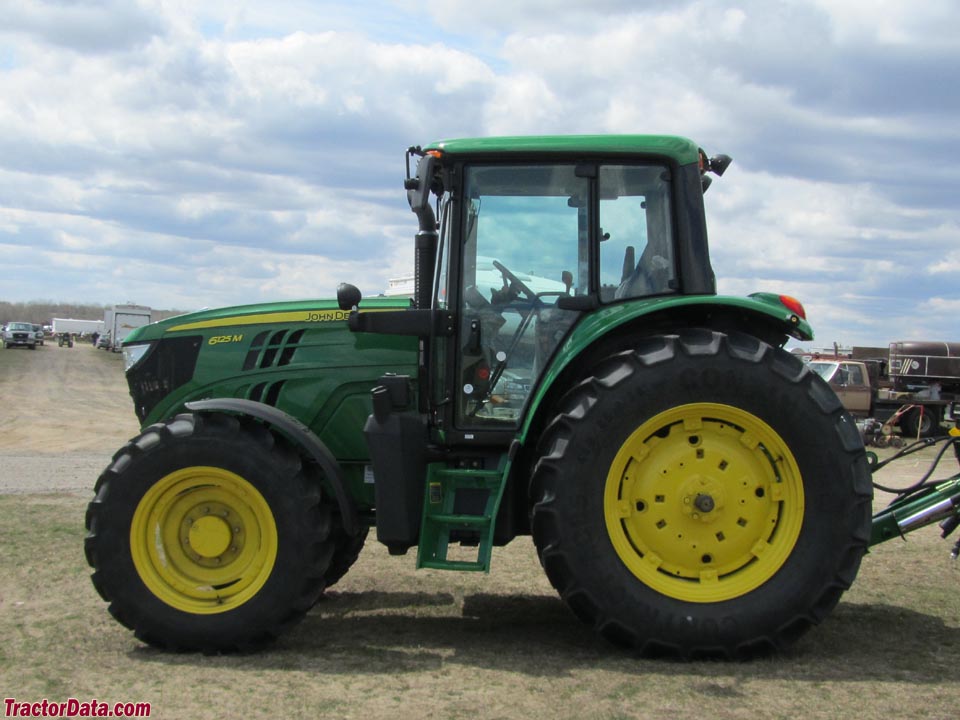

Two-post foldable ROPS. Cab optional with air-conditioning. GreenStar (optional); AutoTrac (optional)Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)93.2 kWReference
Engine (max)96.9 kWReference
Drawbar (tested)73.3 kWReference
John Deere PowerTech PVXReference
variable geometry turbocharger with intercooler dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsInterim Tier IVReference
Emission controlcooled exhaust gas recirculationReference
Rated Power (gross)93.2 kWReference
Maximum Power (gross)96.9 kWReference
Fuel systemhigh pressure common railReference
Compression16.1:1Reference
Rated RPM2100Reference
Torque562.7 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity16.0 LReference
Coolant capacity22.1 LReference
Max power85.7 kWReference
Power at rated engine speed78.4 kWReference
Max power73.3 kWReference
Transmission
12-speed fully synchronizedReference
16-speed partial power shiftReference
24-speed partial power shiftReference
TransmissionSyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutchwet discReference
TransmissionPowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Oil capacity52.1 LReference
TransmissionPowrQuad PlusReference
Gears24 forward and reverseReference
TransmissionAutoQuad PlusReference
PTO & Hydraulics
PTO (claimed)76.1 kWReference
PTO (tested)85.7 kWReference
Hydraulic system51.9 LReference
Typeopen center pressure compensatedReference
Typeclosed center load sensing pressure and flow compensated (optional)Reference
Capacity51.9 LReference
Pressure200.0 barReference
Rear valves1 to 3Reference
Mid valves2 or 3 (optional)Reference
Pump flow79.9 lpmReference
Pump flow113.6 lpmReference
SCV flow79.9 lpmReference
Rear TypeII/IIINReference
Controlelectrohydraulic load sensingReference
Rear lift (at 24"/610mm)2337 kgReference
Rear lift (at 24"/610mm)2833 kgReference
DrawbarCat. IIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1932Reference
Engine RPM1000@1932Reference
Power at rated PTO speed85.3 kWReference
Capacities
Fuel219.5 LReference
Dimensions
Wheelbase258 cmReference
Weight5225 kgReference
Front tire10.00-16Reference
Rear tire460/85R34 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 460/85R34 (2WD)Reference
Standard tires (ag)Front: 380/85R24. Rear: 460/85R34 (4WD)Reference
Max weight8700 kgReference
Clearance (front axle)51 cmReference
Flange rear axleReference
Bar rear axle78 by 2555 mmReference
Front tread153 to 204 cmReference

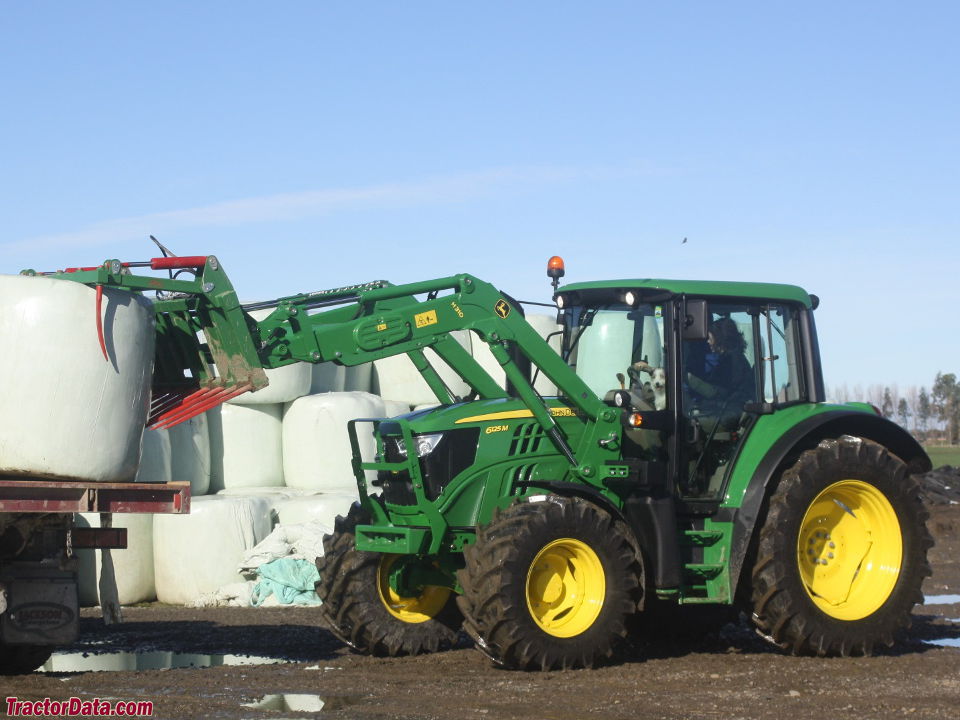

John Deere 6125M attachments
front-end loaderReference
6125M Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging amps150 (optional)Reference
Charging volts14Reference
Battery volts12Reference
Attachment overview
John Deere H310 loaderReference
John Deere H310 MSL loaderReference
John Deere H340 loaderReference
John Deere H340 MSL loaderReference
Test results
Diesel 24-speed PowrQuad Plus 4WDOctober 22 - 30, 2013Link: OCED Tractor Test 2078 fileReference
PTO performanceReference
Fuel use25.4 l/hourReference
Fuel use26.1 l/hourReference
Drawbar performanceReference
Max pull4911 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
