Tractor · 2012Unverified

John Deere 6125R

Name: John Deere 6125R
Brand: John Deere

John Deere 6125R — 6R Series · 125 hp. Reference specifications; pending source verification.

The John Deere 6125R is a tractor with a maximum power output of 125 hp, positioning it among the higher-powered machines in its class. The 6125R was produced between 2012 and 2014. It features a 4-cylinder turbocharged diesel liquid-cooled engine, which transmits power through four-wheel drive via a hydrostatic transmission. The tractor has a listed weight of 5910 kg and is suitable for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

125 hp

Max power

87.9 kW

Weight

5910 kg

Catalogue coverage

Variants represented

Richest spec table

144 rows

Recorded power

125 hp

Recorded weight

5910 kg

Transmissions

16-speed partial power shift

Production years

2012-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Original price$96,507 (2014 PowrQuad 2WD )Reference

Original price$125,218 (2014 IVT 4WD )Reference

Two- or four-wheel driveReference

Differential lockhydraulic rear lockReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

ComfortView cab standard with air-conditioning. GreenStar and AutoTrac ready with ISOBUS connector.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank219.5 LReference

Engine (gross)93.2 kWReference

Drawbar (tested)67.7 kWReference

John Deere PowerTech PVXReference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooled inlineReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsInterim Tier 4Reference

Emission controlexhaust gas recirculation (EGR)Reference

Rated Power (gross)93.2 kWReference

Fuel systemhigh pressure common railReference

Air cleanerdual stage dryReference

Rated RPM2100Reference

Idle RPM850-2250Reference

Operating RPM1300-2100Reference

Torque585.8 NmReference

Torque RPM1600Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Starter power3.0 kWReference

Intake valve clearance0.480 mmReference

Exhaust valve clearance0.706 mmReference

Max power87.9 kWReference

Power at rated engine speed76.7 kWReference

Max power67.7 kWReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceStage IIIb | exhaust gas recirculation (EGR)Reference

Engine torque at rated speed195.7 kgReference

Bore and stroke4.15x5.00 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed partial power shiftReference

24-speed partial power shiftReference

infinitely variable transmissionReference

TransmissionPowerQuad PlusReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Four power shift gears (1-4) in four synchronized ranges (A-D) with left-hand reverser.Reference

TransmissionAutoQuad Plus EcoReference

Gears24 forward and reverseReference

ClutchPermaClutch II hydraulic wet discReference

Four power shift gears (1-4) in six synchronized ranges (A-F) with left-hand reverser. Available in 40 km/h and 50 km/h versions.Reference

TransmissionAutoPowr IVTReference

Typeinfinitely variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypePower QuadReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)75.3 kWReference

PTO (tested)87.9 kWReference

Typeload-sensing pressure flow compensatedReference

Pump flow113.6 lpmReference

SCV flow99.9 lpmReference

Rear Type2/3NReference

Controlelectronic lower-link draft sensingReference

Rear lift (at 24"/610mm)2937 kgReference

DrawbarCategory 2 swinging drawbar with hammerstrapReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Power at rated PTO speed86.4 kWReference

Dimensions

Wheelbase258 cmReference

Weight5910 kgReference

Front tire12.4R24Reference

Rear tire16.9R30 (4WD)Reference

Standard tires (ag)Front: 12.4R24. Rear: 16.9R30 (4WD)Reference

Length454 cmReference

Width255 cmReference

Height (cab)279 cmReference

Height (cab)288 cmReference

Operating weight5910 kgReference

Ground clearance50 cmReference

Front axleTriple-Link SuspensionReference

Flange rear axleReference

Optional rack-and-pinion axle rear axle78 by 2555 mmReference

John Deere 6125R attachments

front-end loaderReference

6125R Serial Numbers

Location:Serial number plate on right side of main tractor frame.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging amps200Reference

Battery volts12Reference

Battery AH154Reference

Attachment overview

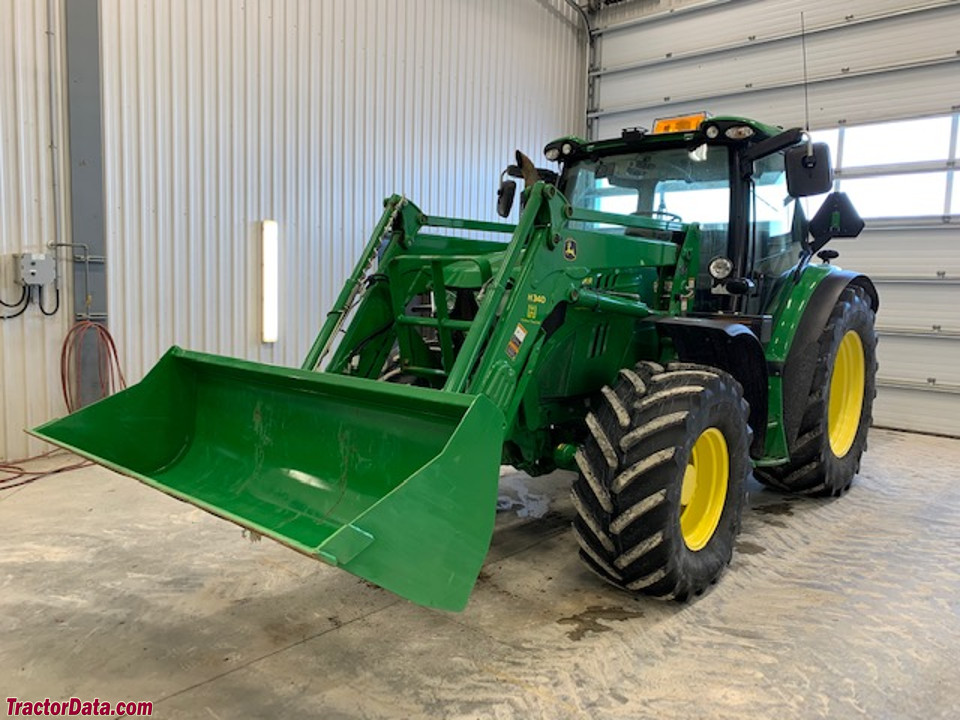

John Deere H310 loaderReference

John Deere H310 MSL loaderReference

John Deere H340 loaderReference

John Deere H340 MSL loaderReference

Test results

Diesel AutoQuad Plus 4WDJune 2013 - November 2013, Link: OCED Tractor Test 2804 fileReference

PTO performanceReference

Fuel use26.9 l/hourReference

Fuel use25.7 l/hourReference

Fuel use27.3 l/hourReference

Drawbar performanceReference

Max pull5878 kgReference

Speeds

With 16.9R30 rear tires. Reverse speeds are about 5% faster than forward.Reference

With 16.9R30 rear tires. Reverse speeds are about 5% faster than forward. 50 km/h version shown, 40 km/h only affects gear F4.Reference

General

Make & ModelJohn DeereReference

Cruise controlAvailableReference

SCV controlJoystickReference

Drawbar categoryCategory 2 swinging drawbar with hammerstrapReference

Rear Axle TypeFlangeReference

Front Axle TypeTriple-Link SuspensionReference

ISOBUS readyTRUEReference

Country of manufacturerGermanyReference

Capacities

Capacity276 ciReference

Hydraulics

Capacity Valves16 ValvesReference

Hydraulics TypePressure Flow Compensated (PFC)Reference

Remote Valves4 ValvesReference

Rear Hitch category (SAE designation)Category 3NReference

Rear Hitch maximum lift capacity4,350.9 kgReference

Rear Hitch Sensing Typeload and depth control with electronic lower link sensingReference

Front Hitch category (SAE designation)Category 3NReference

Power

Rated Power125 hpReference

PTO

PTO Power101 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Engine Speed on Rear PTO speed1,000@1,950 RPMReference

Engine Speed on Front PTO speed1,000@1,995 RPMReference

Dimensions & weight

Overall Height279.7 cmReference

Height Over Cab279.7 cmReference

Overall Length454.2 cmReference

Overall Width255 cmReference

Overall weight5,470.8 kgReference

Wheels & tyres

Rear Wheel Type16.9R30 (4WD)Reference

Front Wheel Type12.4R24.(4 WD)Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Steering & brakes

Steering typeHydrostatic PowerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
