Tractor · 2016Unverified

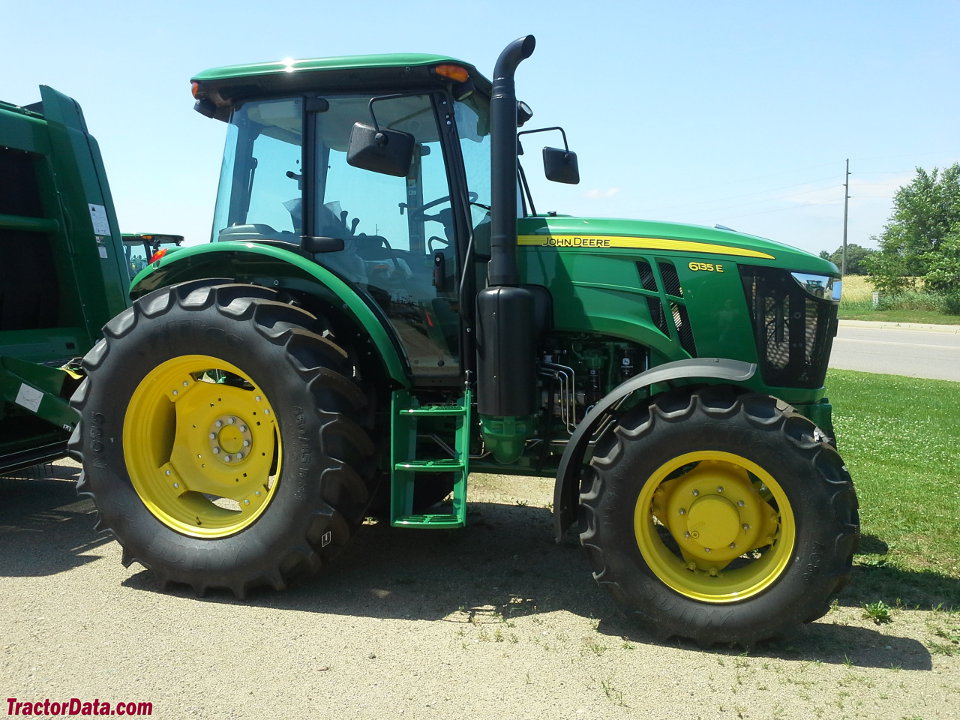

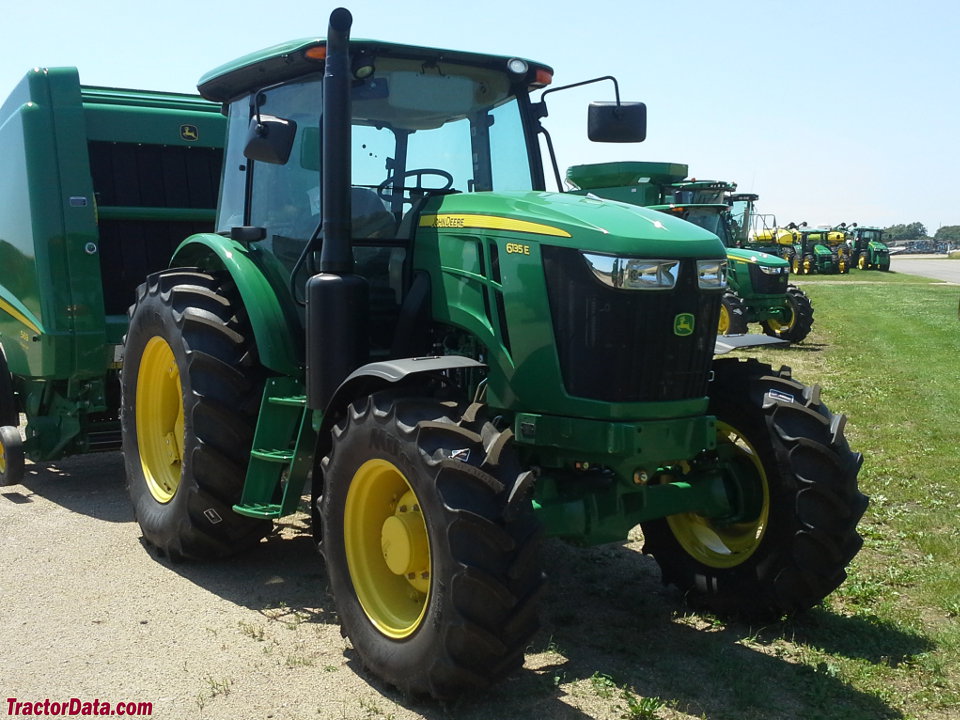

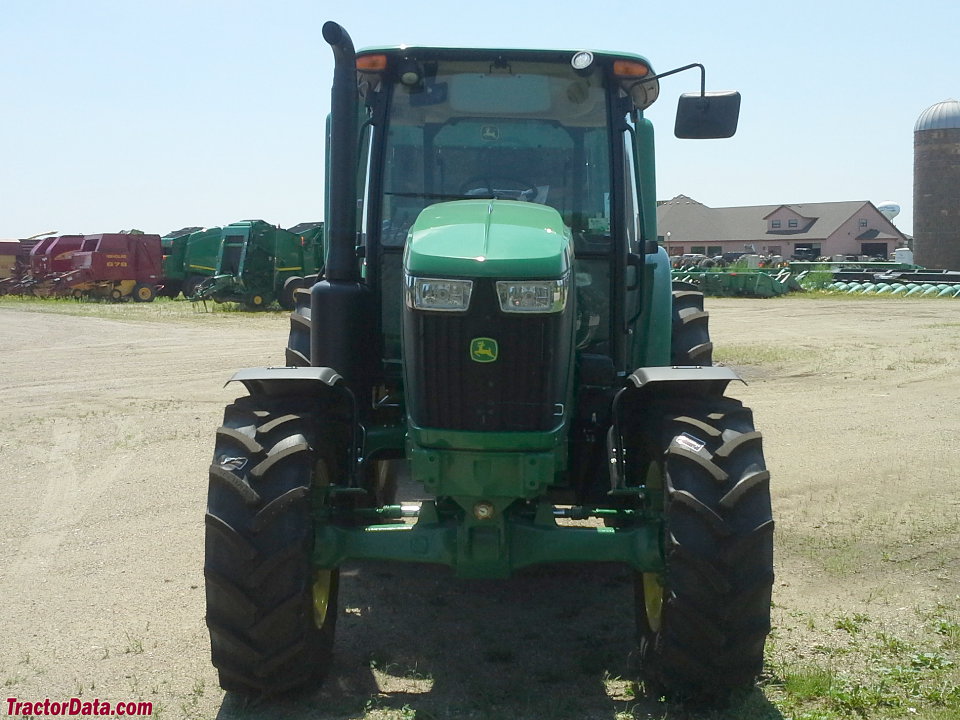

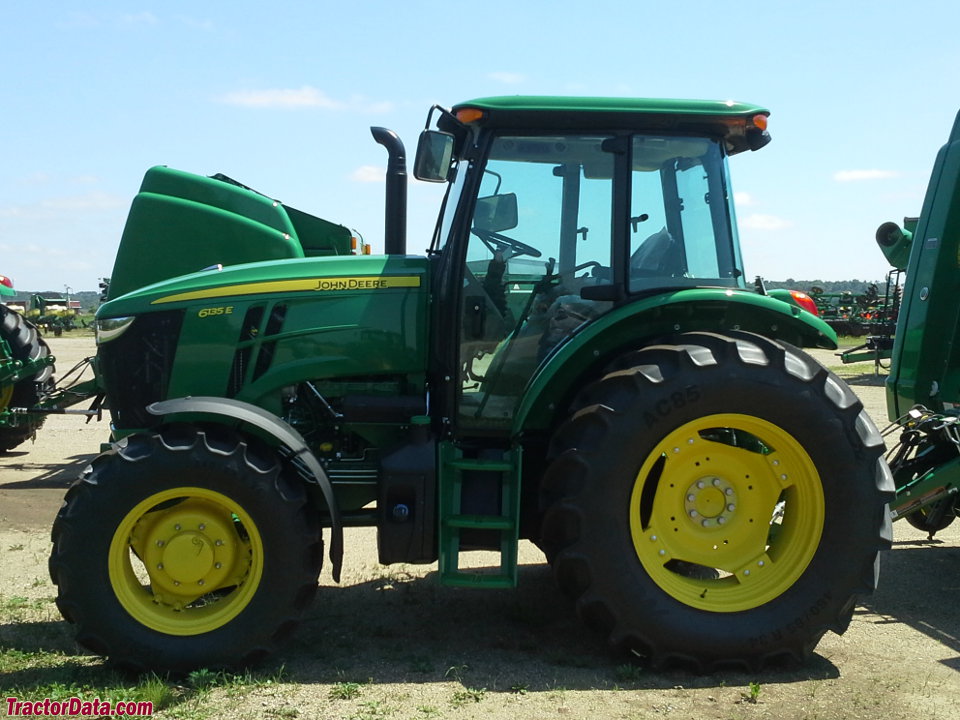

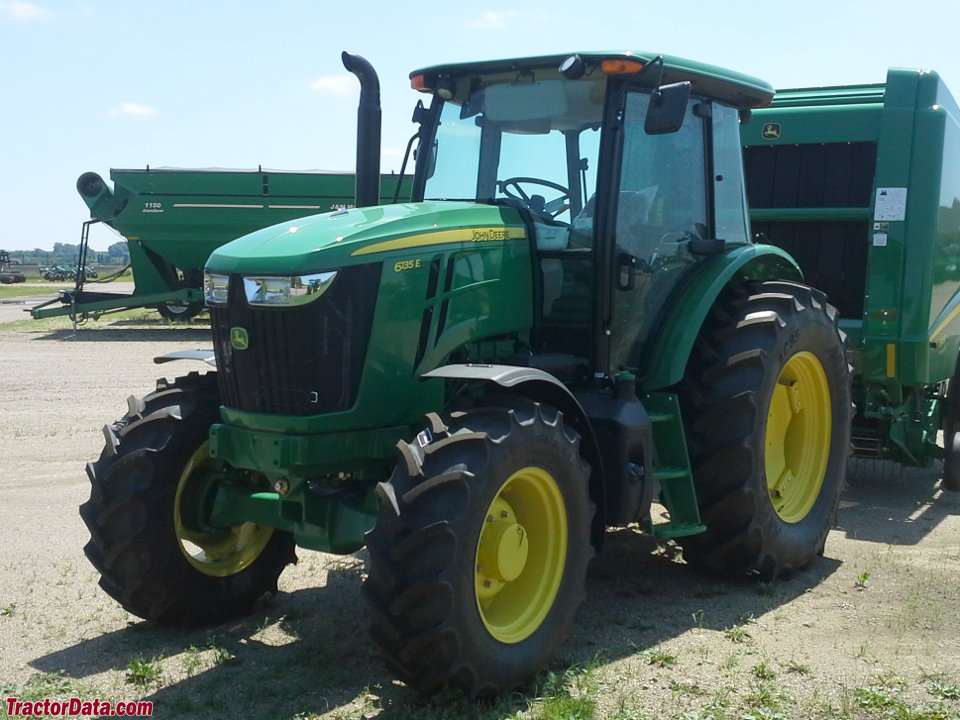

John Deere 6135E

John Deere 6135E — 6E Series · 135 hp. Reference specifications; pending source verification.

The John Deere 6135E is a tractor model rated at approximately 135 horsepower, placing it at the more powerful end of its class. It was produced in 2016. This model features a 4-cylinder turbocharged diesel engine, paired with four-wheel drive and a powershift transmission. It is suitable for operations ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
135 hp
Max power
137 hp
Weight
6,463.7 kg

Catalogue coverage

Variants represented
2
Richest spec table
112 rows
Recorded power
135 hp
Transmissions
12-speed
Production years
2016-2016
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference
Utility tractorReference
Built in Saltillo, MexicoReference
Original price was $85,084 in 2015Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
4WD Differential locklimited-slip frontReference
Cab standard with air-conditioning. AutoTrac ((Optional steering kit))Reference

Engine

John Deere 4.5L 4-cyl dieselReference
Engine (gross)100.7 kWReference
John Deere PowerTech PWSReference
wastegate turbocharger with air-to-air aftercooling dieselReference
4-cylinder 16-valveReference
inlineReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier IVReference
Emission controlcooled exhaust-gas recirculationReference
Rated Power (gross)100.7 kWReference
Fuel systemelectronic high-pressure common railReference
Air cleanerdual stage dryReference
Compression16.8:1Reference
Rated RPM2200Reference
Idle RPM900-2275Reference
Operating RPM1900-2200Reference
Torque538.3 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Fuel TypeDieselReference
No of Cylinders4Reference
Emissions complianceFinal Tier 4Reference
Engine torque at rated speedOption 1: 2,200 rpm\\nOption 2: 539 NmReference
Interval for engine oil change500 hoursReference
Interval for engine coolant change5,000 hoursReference
Cooling systemOpen station: 18.6 LReference

Transmission

12-speedReference
24-speed two-speed power shiftReference
TransmissionPowrReverserReference
Gears12 forward and reverseReference
Clutchwet discReference
Four gears (1-4) in four ranges (A-D) with shuttle lever. Range upshifts B-C and C-D, plus downshift D-C, are synchronized.Reference
TransmissionPowrReverser Hi-LoReference
Typetwo-speed power shiftReference
Gears24 forward and 12 reverseReference
Transmission TypePower ShuttleReference
forward and reverse options24F/12RReference
Wheel DriveMFWDReference
Rear Axle Drive TypeInboard planetaryReference
Interval for hydraulic/transmission oil change1,000 hoursReference

PTO & Hydraulics

PTO (claimed)85.8 kWReference
Typeopen centerReference
Pressure195.0 barReference
Valves2 to 3Reference
Pump flow75.7 lpmReference
Rear TypeIIReference
Controldraft sensingReference
Rear lift (at 24"/610mm)249 kgReference
Rear lift (at 24"/610mm)3311 kgReference
Rear Armstelescopic draft armsReference
DrawbarCat. 2Reference
DrawbarCat. 2 HDReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2085Reference
Engine RPM1000@2067Reference

Dimensions

Wheelbase245 cmReference
Flange rear axleReference
Front tread151 to 201 cmReference
Ballasted6463 kgReference
Max Drawbar2494 kgReference
Max Drawbar3311 kgReference

6135E Serial Number Location

Serial number plate on the right side of the 6135E tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference
Battery volts12Reference
Alternator size90 ampReference
Battery options12 VReference
Total cold cranking amps925 CCAReference

Capacities

Max capacity7999 kgReference
Capacity275 cu. in.Reference
Fuel tank168 LReference
Crankcase oil volume4 U.S. galReference

General

Make & ModelHJDXLO6.8,302Reference
SCV controlJoystick: AvailableReference
Drawbar categoryCategory 2/Category 2 heavy dutyReference
Drawbar Maximum vertical load2,205-2,756 lbReference
Rear Axle TypeFlangeReference
Rear Axle Differential LockFull-locking mechanicalReference
Front Axle TypeStandard: MFWDReference
Front Axle Differential Lock2WD: None\\nMFWD: limited slipReference
DisplayLCD instrument clusterReference
Country of manufacturerMexicoReference
Precision AgricultureAvailable (Remote diagnostics)\\nAvailable (Telematic)Reference

Power

Max Power137 hpReference
Rated Power135 engine hpReference

PTO

PTO Power115 hpReference
PTO torque rise30 percentReference
Rear PTO PowerAvailableReference
Rear PTO RPM540/1,000 rpmReference
Engine Speed on Front PTO speed540 rpm PTOReference

Hydraulics

Pump Rated Output (total)75.7 l/minReference
Remote Valves3Reference
Number of rear selective control valves (SCVs)3Reference
Rear Hitch category (SAE designation)Category 2Reference
Rear Hitch Sensing TypeOptionalReference

Dimensions & weight

Overall weight4,644.8 kgReference
Weight6,463.7 kgReference

Wheels & tyres

Rear wheel tread rangeMFWD: 1,516-2,016 mm\\n59.7-79.4 in.Reference

Operator station

Cab AvailabilitytrueReference
Seat SuspensionAvailableReference

Steering & brakes

Steering typeHydrostatic powerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
