Tractor · 2016Unverified

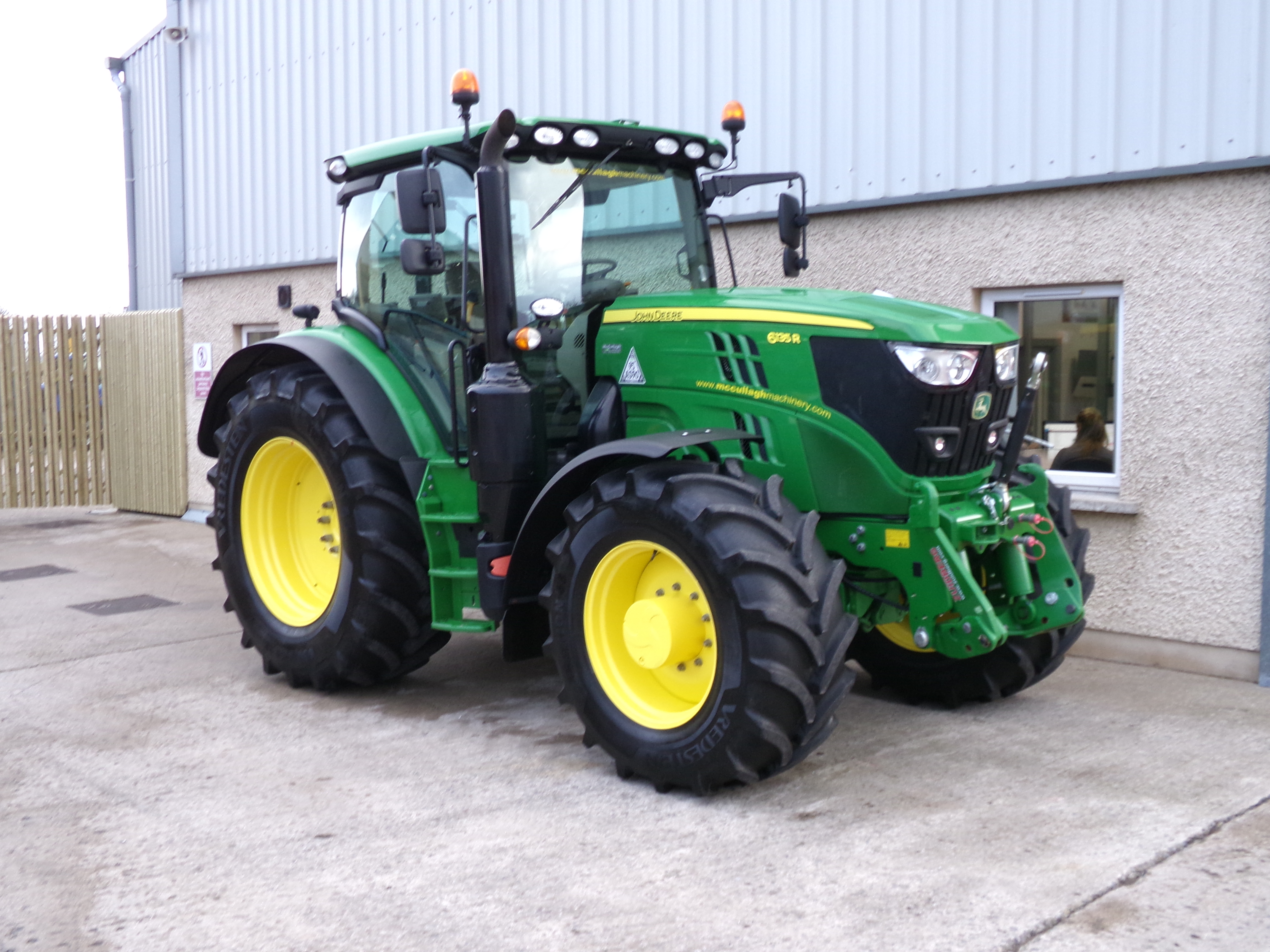

John Deere 6135R

Name: John Deere 6135R
Brand: John Deere

John Deere 6135R — 6R Series · 135 hp. Reference specifications; pending source verification.

The John Deere 6135R is a tractor model with a rated power output of 135 hp, positioning it at the higher power end of its class. It was manufactured from 2016 to 2022. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its listed operating weight is 6400 kg, making it suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

135 hp

Max power

166.3 hp

Weight

6400 kg

Catalogue coverage

Variants represented

Richest spec table

120 rows

Recorded power

135 hp

Recorded weight

6400 kg

Transmissions

24-speed partial power shift

Production years

2016-2022

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank305.1 LReference

Exhaust fluid (DEF)15.9 LReference

Engine (gross)101.0 kWReference

Engine (net)94.0 kWReference

Engine (max)124.0 kWReference

John DeereReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

Rated Power (net)94.0 kWReference

Rated Power (gross)101.0 kWReference

Maximum Power (net)116.0 kWReference

Maximum Power (gross)124.0 kWReference

Fuel systemhigh-pressure common railReference

Rated RPM2100Reference

Idle RPM850-2250Reference

Operating RPM1550-2100Reference

Torque632.0 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity27.0 LReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,100 RPMReference

Engine torque at rated speed211.4 kgReference

Bore and stroke4.19x5.00 inchesReference

Cooling systemliquid-cooledReference

Interval for engine oil change750 hrReference

Transmission

24-speed partial power shiftReference

continuously-variable transmissionReference

TransmissionPowrQuad PlusReference

Typepartial power shiftReference

Gears24 forward and reverseReference

Four push-button power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. Push-button clutch on the shift lever.Reference

TransmissionAutoQuad PlusReference

Four push-button power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. Automatic gear shifting.Reference

TransmissionAutoPowrReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

Hydro-mechanical continuous transmission.Reference

Transmission TypePower QuadReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)88.7 kWReference

PTO (claimed)102.9 kWReference

Typeclosed center PFCReference

Pump flow113.9 lpmReference

Rear TypeIIINReference

Rear lift (at 24"/610mm)4350 kgReference

Front HitchIIINReference

Front lift (at ends)3299 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/540E/1000Reference

Engine RPM540@1967Reference

Engine RPM540E@1496Reference

Engine RPM1000@1962Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@1969Reference

Dimensions

Wheelbase276 cmReference

Weight6400 kgReference

Front tire480/70R28Reference

Rear tire580/70R38Reference

Standard tires (ag)Front: 480/70R28. Rear: 580/70R38Reference

Optional tires (ag)Front: 13.6R28. Rear: 16.9R38Reference

Optional tires (ag)Front: 14.9R28. Rear: 18.4R38Reference

Optional tires (ag)Front: 270/95R38. Rear: 300/95R52Reference

Length487 cmReference

Width255 cmReference

Height (cab)293 cmReference

Shipping weight6400 kgReference

Max weight10450 kgReference

Clearance (front axle)52 cmReference

Clearance (rear axle)50 cmReference

6135R Serial Numbers

Location:Serial number plate on the right side of the tractor frame, near the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Battery AH154Reference

Speeds

With580/70R38 rear tires and 40 KPH option. Reverse speeds are 5% faster than forward.Reference

With580/70R38 rear tires and 50 KPH option. Reverse speeds are 5% faster than forward.Reference

General

Make & ModelJohn DeereReference

SCV controlJoystickReference

Capacities

Capacity276 ciReference

Diesel exhaust fluid (DEF) tank15.9 LReference

Power

Max Power166.3 hpReference

Rated Power135.4 hpReference

PTO

PTO Power138 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Engine Speed on Front PTO speed1,000@1,969 RPMReference

Steering & brakes

BrakesHydraulic Wet DiscReference

Steering typePowerReference

Hydraulics

Hydraulics Typeclosed center PFCReference

Rear Hitch category (SAE designation)Category IIINReference

Front Hitch category (SAE designation)Category IIINReference

Dimensions & weight

Height Over Cab293.6 cmReference

Overall Height293.6 cmReference

Overall Length487.2 cmReference

Overall Width255 cmReference

Front axle clearance52.8 cmReference

Overall weight6,400.2 kgReference

Wheels & tyres

Rear Wheel TypeStandard tires (ag): 580/70R38Reference

Front Wheel TypeStandard tires (ag): 480/70R28Reference

Operator station

Cab AvailabilityCab standard with air-conditioning.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
