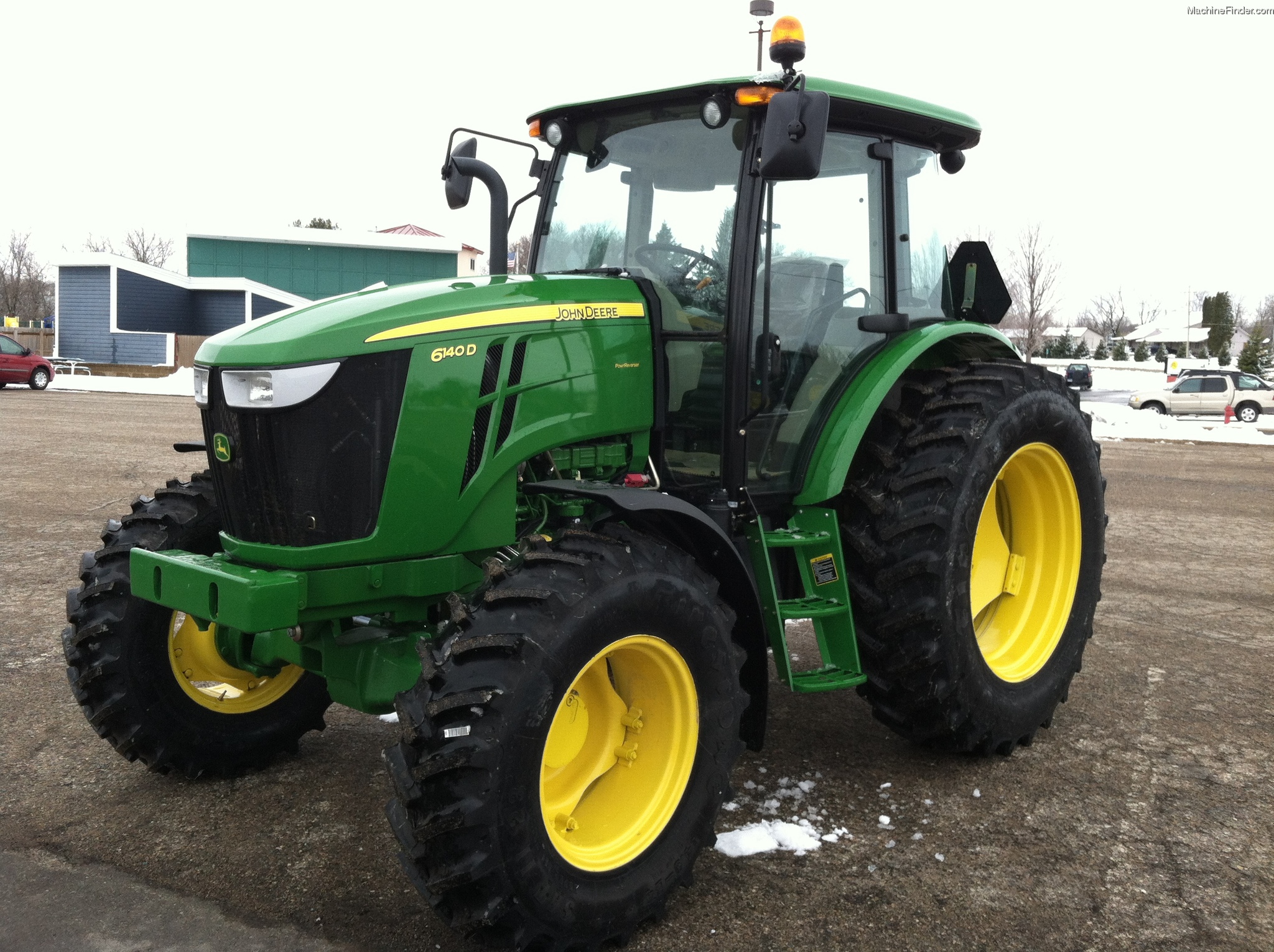

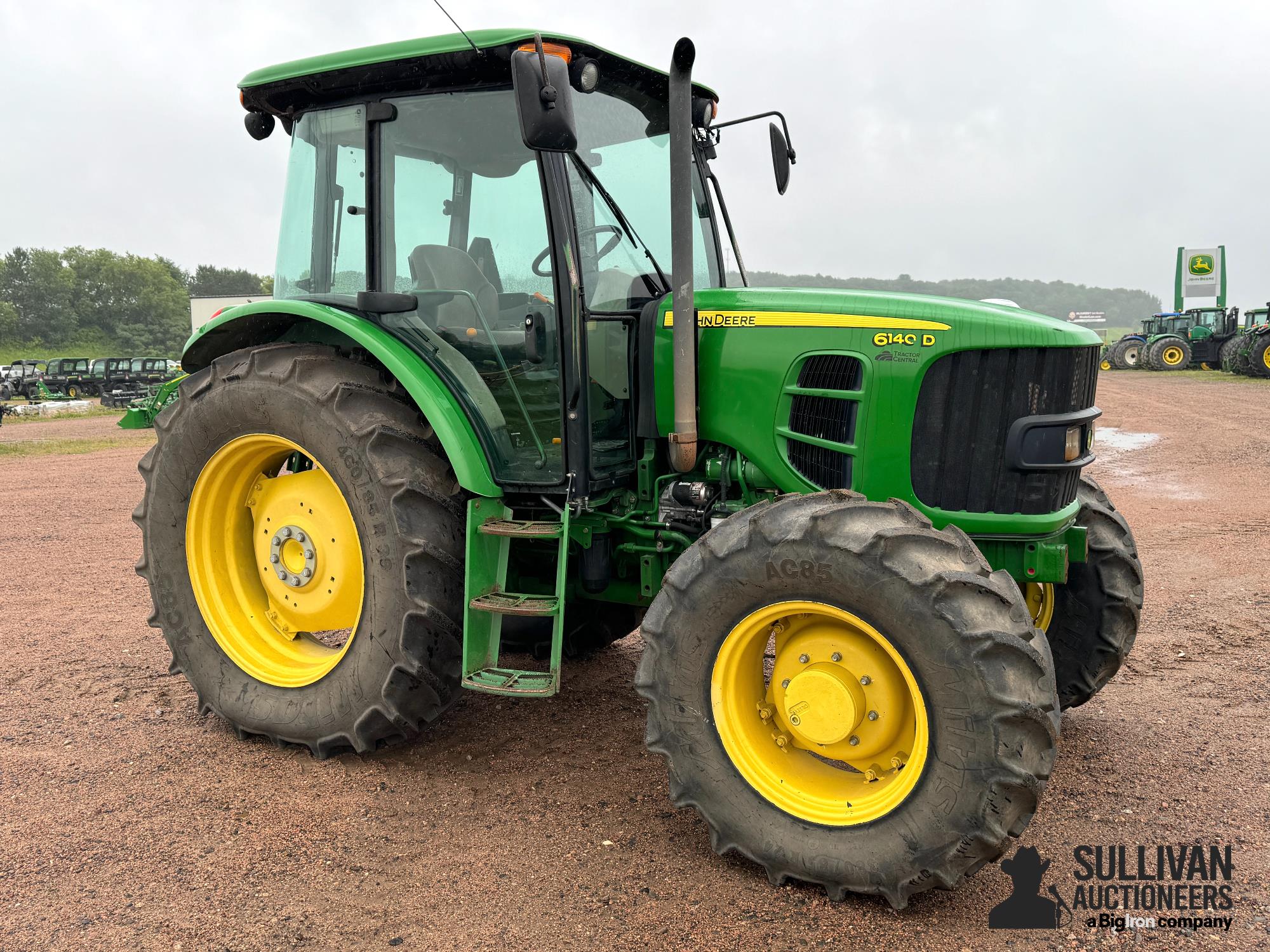

John Deere 6140D
John Deere 6140D — Model year 2008-20122013-2016 · 138 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
138 hp
Max power
87.6 kW
Weight
8730 to 9920 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Saltillo, MexicoReference
Original price$58,752 (2011)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential mechanical wet disc brakesReference
Folding 2-post ROPS or cab with heat and A/CReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)102.8 kWReference
Drawbar (tested)72.1 kWReference
John Deere 4045H PowerTech EReference
intercooled turbocharged dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke107 x 127 mmReference
EmissionsTier 3Reference
Rated Power (gross)102.8 kWReference
Fuel systemDenso electronic high-pressure common railReference
Compression19:1Reference
Rated RPM2100Reference
Idle RPM900-2200Reference
Torque524.8 NmReference
Torque RPM1500Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Coolant capacity16.5 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity12.3 LReference
Oil change250 hReference
Oil change500 h (JD TorqGARD oil)Reference
Max power87.6 kWReference
Power at rated engine speed86.7 kWReference
Max power72.1 kWReference
Transmission
9-speed partially synchronized with power shuttleReference
TransmissionJohn Deere PowrReverserReference
Typepartially synchronized with power shuttleReference
Gears9 forward and reverseReference
Clutchhydraulic wet discReference
Oil capacity57.9 LReference
Three gears (1-3) in each of three ranges (A-C) plus left-hand reverser. Forward/reverse powershift. Synchronized shift between gears with clutch. Shifts between ranges are unsynchronized: the tractor must be stopped and clutch used to shift range.Reference
PTO & Hydraulics
PTO (claimed)85.8 kWReference
PTO (tested)87.6 kWReference
Hydraulic system57.9 LReference
Typeopen centerReference
Capacity57.9 LReference
Pressure195.1 barReference
Valves2 to 3Reference
Pump flow66.6 lpmReference
Steering flow26.1 lpmReference
Rear TypeIIReference
Controlmechanical lower linkReference
Rear lift (at 24"/610mm)3084 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Power at rated PTO speed87.4 kWReference
Capacities
Fuel157.8 LReference
Front axle6.5 LReference
Front hubs2.0 LReference
Dimensions
Wheelbase234 cmReference
Weight8730 to 9920 poundsReference
Front tire14.9-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 14.9-24. Rear: 18.4-34Reference
Optional tires (ag)Front: 14.9-24. Rear: 18.4-38Reference
Length421 cmReference
Width182 cmReference
Height (cab)273 cmReference
Height (exhaust)269 cmReference
Clearance (front axle)45 cmReference
Rear axle1828 mmReference
Front tread161 to 201 cmReference
Rear tread151/161/171/181/191/201 cmReference
Shipping3959 kgReference
Shipping4259 kgReference
Operating4499 kgReference
Ballasted5939 kgReference
John Deere 6140D attachments
front-end loaderReference
6140D Serial Number Location
Right side of main tractor frame above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70 (ROPS)Reference
Charging amps90 (cab)Reference
Battery CCA925Reference
Battery volts12Reference
Battery AH180Reference
Battery Group31Reference
Attachment overview
John Deere 563 loaderReference
John Deere 673 loaderReference
Test results
Diesel 9-speed 4WDApril 1 - 21, 2009Link: OCED Tractor Test 1951 fileReference
PTO performanceReference
Fuel use26.9 l/hourReference
Fuel use27.3 l/hourReference
Drawbar performanceReference
Fuel use27.6 l/hourReference
Max pull5002 kgReference
Speeds
With 18.4-34 rear tires.Reference
