Tractor · 2012Unverified

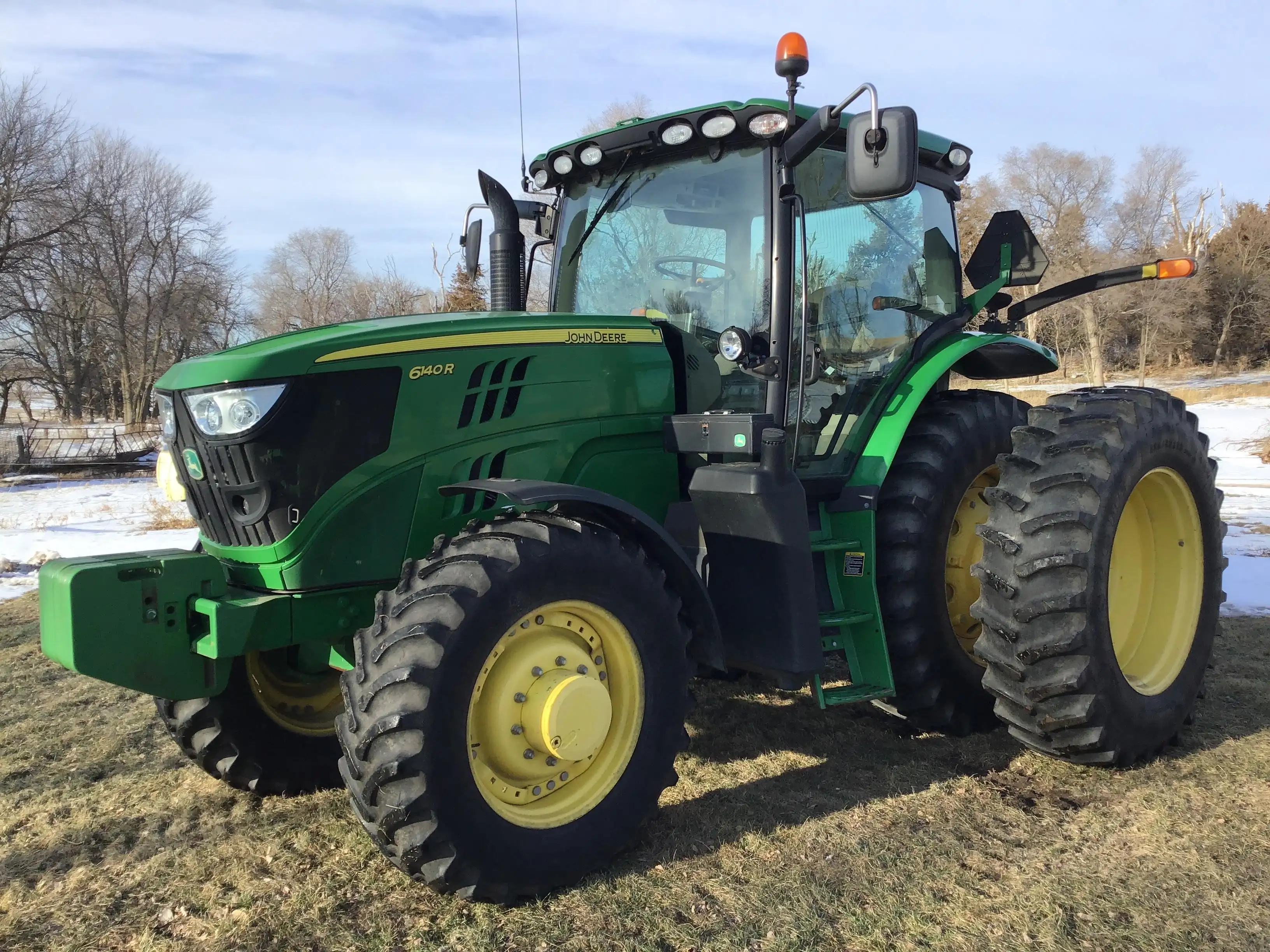

John Deere 6140R

Name: John Deere 6140R
Brand: John Deere

John Deere 6140R — 6R Series · 140 hp. Reference specifications; pending source verification.

The John Deere 6140R is a tractor model with a rating of 140 hp, positioning it within the higher-powered machines in its class. Manufactured from 2012 to 2016, the 6140R features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. The listed weight of the 6140R is 6161 kg, and it is designed for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

140 hp

Max power

154 hp

Weight

6161 kg

Catalogue coverage

Variants represented

Richest spec table

121 rows

Recorded power

140 hp

Recorded weight

6161 kg

Transmissions

20-speed partial power shift

Production years

2012-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Four-wheel driveReference

Differential lockElectro-hydraulic rear with wet disc clutch. Self-locking front.Reference

Steeringhydrostatic powerReference

Trailer brakeshydraulic or pneumatic optionalReference

ComfortView cab standard with air-conditioning. Optional hydraulic cab suspension (HCS Plus). AutoTrac ready. ISOBUS implement connections.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Fuel tank350.1 LReference

Engine (gross)104.4 kWReference

Engine (max)114.8 kWReference

John DeereReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke105 x 127 mmReference

EmissionsStage IIIbReference

Emission controlexhaust gas recirculation (EGR)Reference

Rated Power (gross)104.4 kWReference

Maximum Power (gross)114.8 kWReference

Rated RPM2100Reference

Torque656.2 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity27.0 LReference

Fuel TypeDieselReference

No of Cylinders6 CylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceStage IIIb | exhaust gas recirculation (EGR)Reference

Engine torque at rated speed219.5 kgReference

Bore and stroke4.15x5.00 inchesReference

Compression ratio16.5:1Reference

Cooling systemliquid-cooledReference

Transmission

20-speed partial power shiftReference

infinitely variable transmissionReference

TransmissionPowrQuad PlusReference

Typepartial power shiftReference

Gears20 forward and reverseReference

TransmissionAutoQuad PlusReference

TransmissionAutoPowr IVTReference

Typeinfinitely variable transmissionReference

Gearsinfinite forward and reverseReference

TransmissionDirectDriveReference

Transmission TypePower QuadReference

Wheel Drive4WDReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

Typepressure flow compensated (PFC)Reference

Rear valves4Reference

Front valves2 (optional)Reference

Pump flow79.9 lpmReference

Pump flow121.5 lpmReference

Rear Type3Reference

Controlload and depth control with electronic lower link sensingReference

Rear lift (at ends)4250 kgReference

Rear lift (at 24"/610mm)3700 kgReference

Front Hitch3NReference

Front lift (at ends)3300 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/540E/1000Reference

Engine RPM540@1950Reference

Engine RPM540E@1721Reference

Engine RPM1000@1950Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@1995Reference

Dimensions

Wheelbase276 cmReference

Weight6161 kgReference

Length493 cmReference

Width255 cmReference

Height294 cmReference

Shipping weight6161 kgReference

Max weight10802 kgReference

Ground clearance53 cmReference

Front axleTriple Link SuspensionReference

Flange rear axleReference

John Deere 6140R attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

John Deere H340 loaderReference

John Deere H360 loaderReference

General

Make & ModelJohn DeereReference

Air cleanerdual stage dryReference

Cruise controlAvailableReference

SCV controlJoystickReference

Drawbar categoryCat. 2Reference

Rear Axle TypeFlangeReference

Front Axle TypeTriple Link SuspensionReference

ISOBUS readyTRUEReference

Country of manufacturerGermanyReference

Capacities

Capacity415 ciReference

Hydraulics

Capacity Valves24 ValvesReference

Hydraulics TypePressure Flow Compensated (PFC)Reference

Maximum operating pressure2,900 psiReference

Remote Valves4 ValvesReference

Rear Hitch category (SAE designation)Category 3Reference

Rear Hitch maximum lift capacity4,250.6 kgReference

Rear Hitch Sensing Typeload and depth control with electronic lower link sensingReference

Front Hitch category (SAE designation)Category 3NReference

Power

Max Power154 hpReference

Rated Power140 hpReference

PTO

PTO Power111 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Engine Speed on Front PTO speed1,000@1,995 RPMReference

Engine Speed on Rear PTO speed540@1,950 RPMReference

Dimensions & weight

Overall Height294.9 cmReference

Overall Length493 cmReference

Overall Width255 cmReference

Overall weight6,161.1 kgReference

Wheels & tyres

Rear Wheel Type2WD Rear: 480/80R46 | 4WD Rear: 480/80R46Reference

Front Wheel TypeFront: 11.00-20 (2WD) | Front: 420/90R30(4WD)Reference

Front Wheel tread range60 to 88 inchesReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialAvailableReference

Seat SuspensionTRUEReference

Steering & brakes

Steering typeHydrostatic PowerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
