Tractor · 2012Unverified

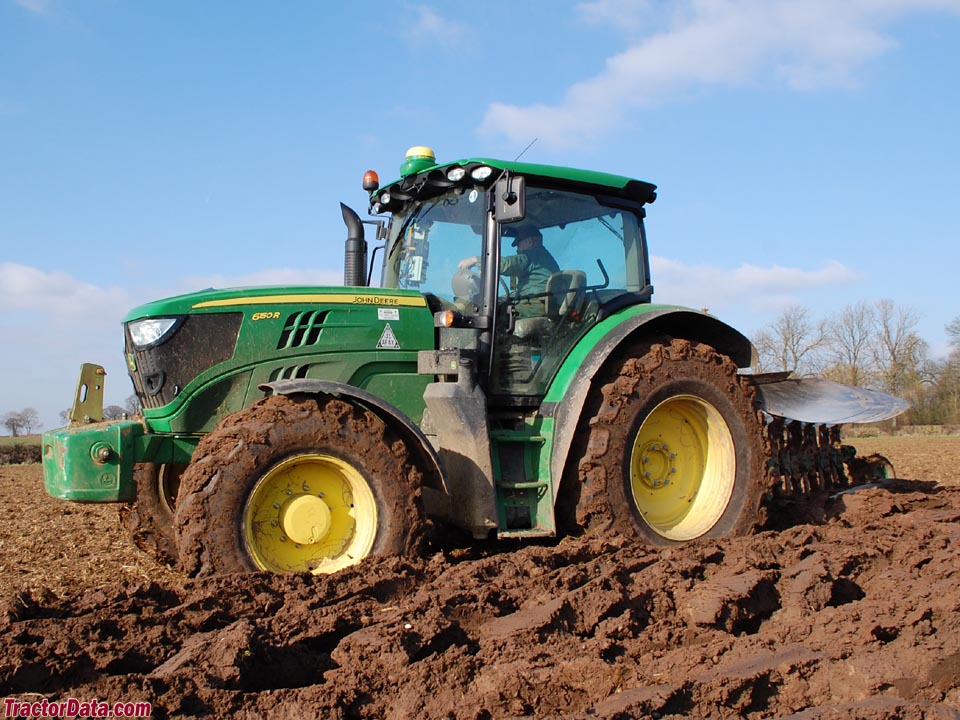

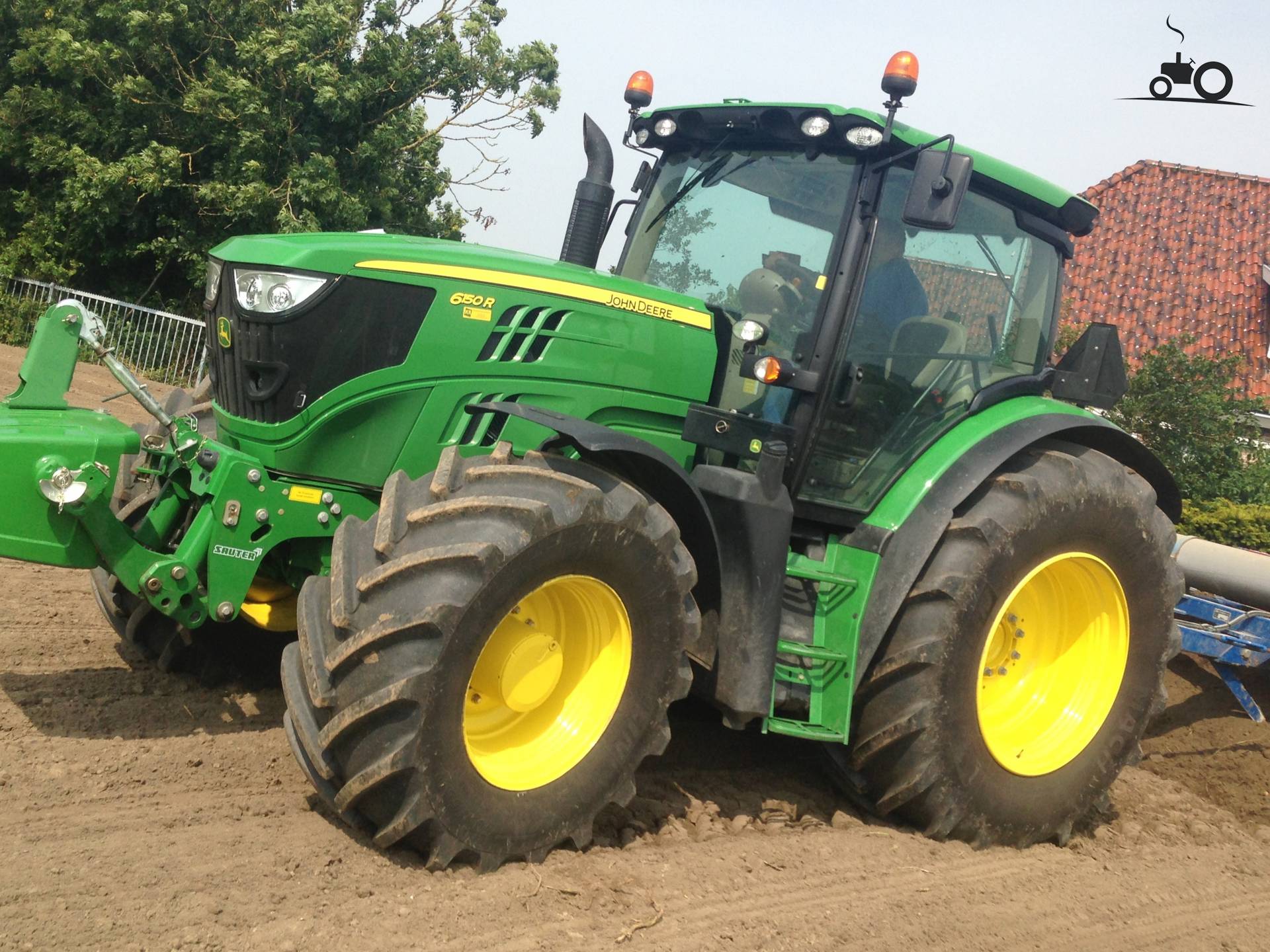

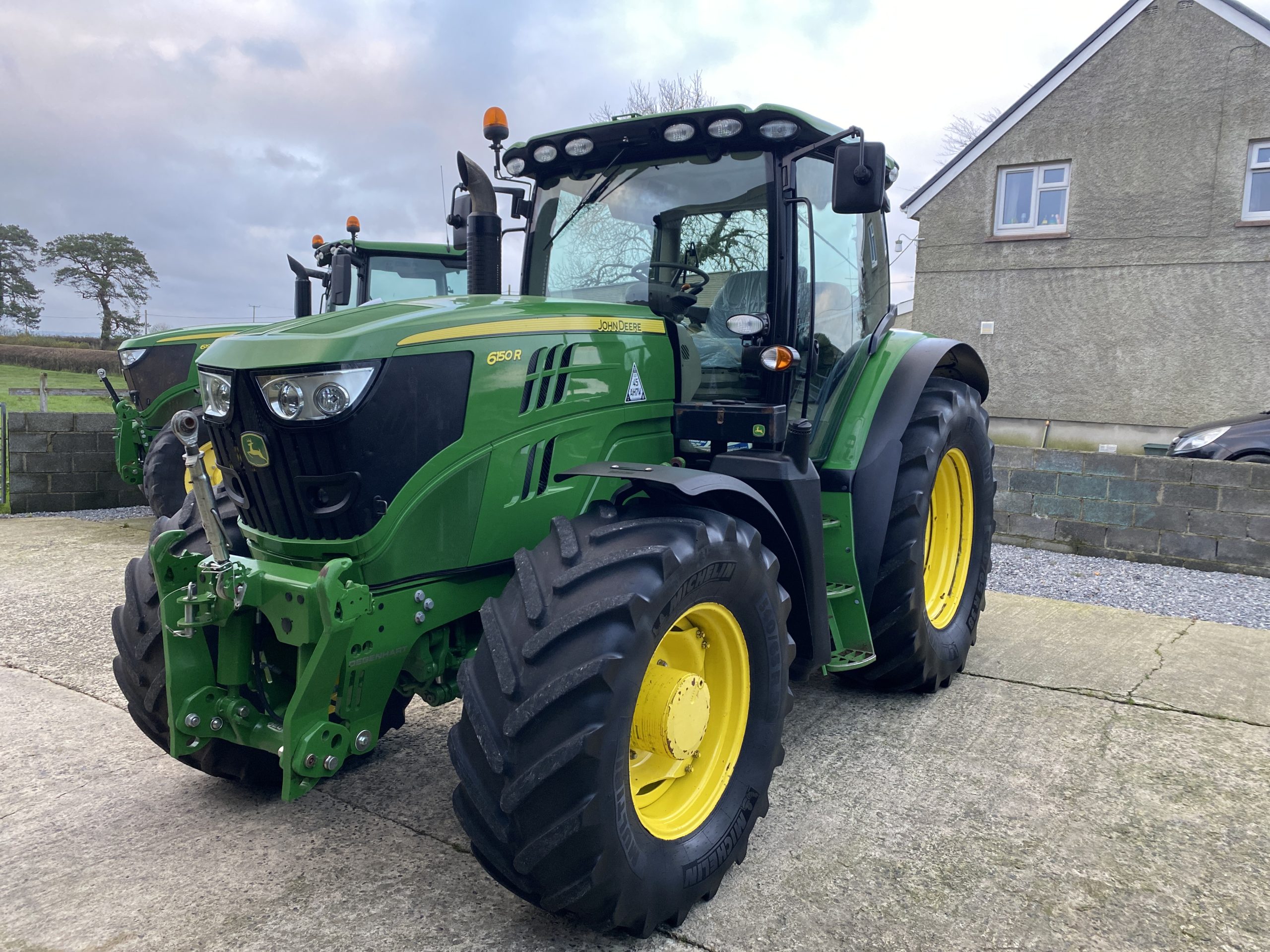

John Deere 6150R
John Deere 6150R — 6R Series · 150 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
150 hp
Weight
6196 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Four-wheel driveReference
Differential lockElectro-hydraulic rear with wet disc clutch. Self-locking front.Reference
Steeringhydrostatic powerReference
Trailer brakeshydraulic or pneumatic optionalReference
ComfortView cab standard with air-conditioning. Optional hydraulic cab suspension (HCS Plus). AutoTrac ready. ISOBUS implement connections.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank350.1 LReference
Engine (gross)111.9 kWReference
Engine (max)123.0 kWReference
John DeereReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke105 x 127 mmReference
EmissionsStage IIIbReference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)111.9 kWReference
Maximum Power (gross)123.0 kWReference
Rated RPM2100Reference
Torque702.1 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity27.0 LReference
Transmission
20-speed partial power shiftReference
infinitely variable transmissionReference
TransmissionPowrQuad PlusReference
Typepartial power shiftReference
Gears20 forward and reverseReference
TransmissionAutoQuad PlusReference
TransmissionAutoPowr IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
TransmissionDirectDriveReference
PTO & Hydraulics
Typepressure flow compensated (PFC)Reference
Rear valves4Reference
Front valves2 (optional)Reference
Pump flow79.9 lpmReference
Pump flow121.5 lpmReference
Rear Type3Reference
Controlload and depth control with electronic lower link sensingReference
Rear lift (at ends)4800 kgReference
Rear lift (at 24"/610mm)4200 kgReference
Front Hitch3NReference
Front lift (at ends)3300 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540E/1000/1000EReference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1995Reference
Dimensions
Wheelbase276 cmReference
Weight6196 kgReference
Length493 cmReference
Width255 cmReference
Height294 cmReference
Shipping weight6196 kgReference
Max weight11302 kgReference
Ground clearance53 cmReference
Front axleTriple Link SuspensionReference
Flange rear axleReference
John Deere 6150R attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
John Deere H340 loaderReference
John Deere H360 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
