Tractor · 2013Unverified

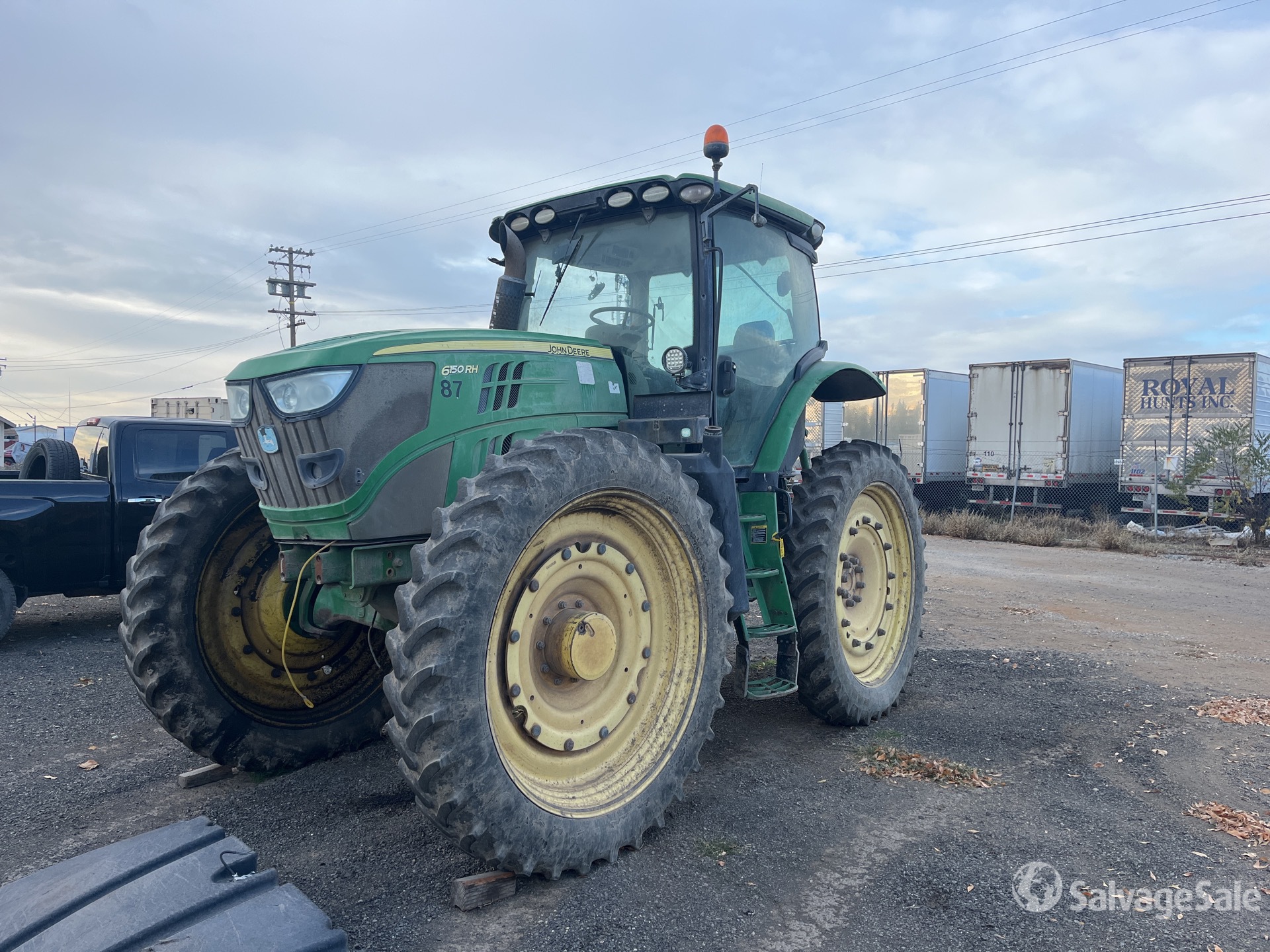

John Deere 6150RH
John Deere 6150RH — 6R Series · 150 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
150 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Original price was $145,664 in 2014Reference
Four-wheel driveReference
Cab standard with air-conditioning.Reference
Variants
6150Rrow-cropReference
6150RHhigh-cropReference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank304.7 LReference
Engine (gross)111.9 kWReference
Engine (max)123.0 kWReference
John Deere PowerTech PVXReference
variable geometry turbocharger with air-to-air aftercooling dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
EmissionsInterim Tier IVReference
Emission controlcooled exhaust gas recirculationReference
Rated Power (gross)111.9 kWReference
Maximum Power (gross)123.0 kWReference
Air cleanerdual stage dryReference
Compression16.5:1Reference
Rated RPM2100Reference
Idle RPM850-2250Reference
Operating RPM1500-2100Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
TransmissionPowrQuad PLUSReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discsReference
Four gears (1-4) in four ranges (A-D) with power shuttle.Reference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
Typeclosed center pressure and flow compensatedReference
Pump flow113.9 lpmReference
SCV flow99.9 lpmReference
Rear TypeIII/IIINReference
Rear lift4169 kgReference
DrawbarCat. 2Reference
Dimensions
Front tire320/90R46Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 320/90R46. Rear: 18.4R38Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
