Tractor6M Series · 2024 Verified · 88%

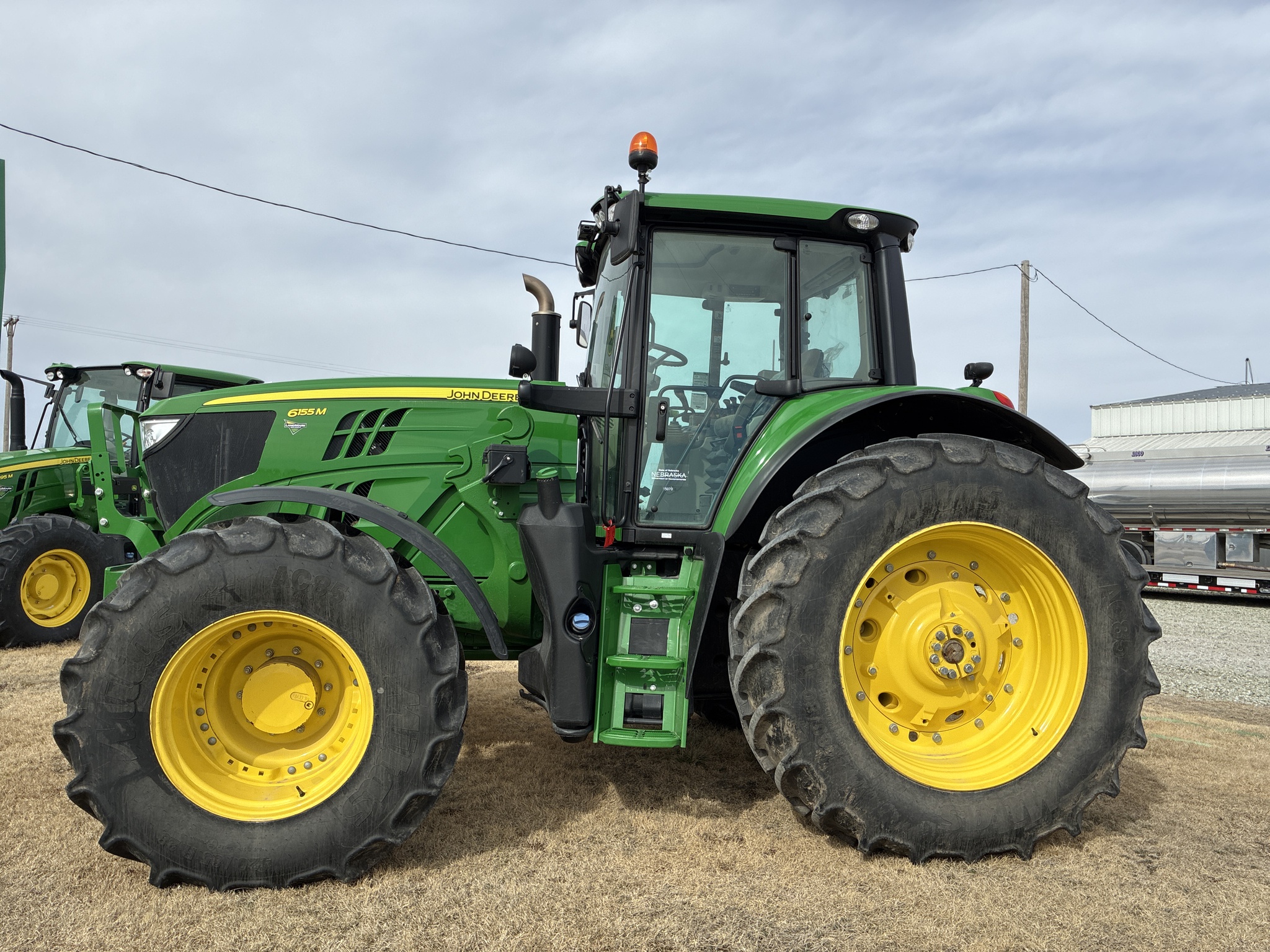

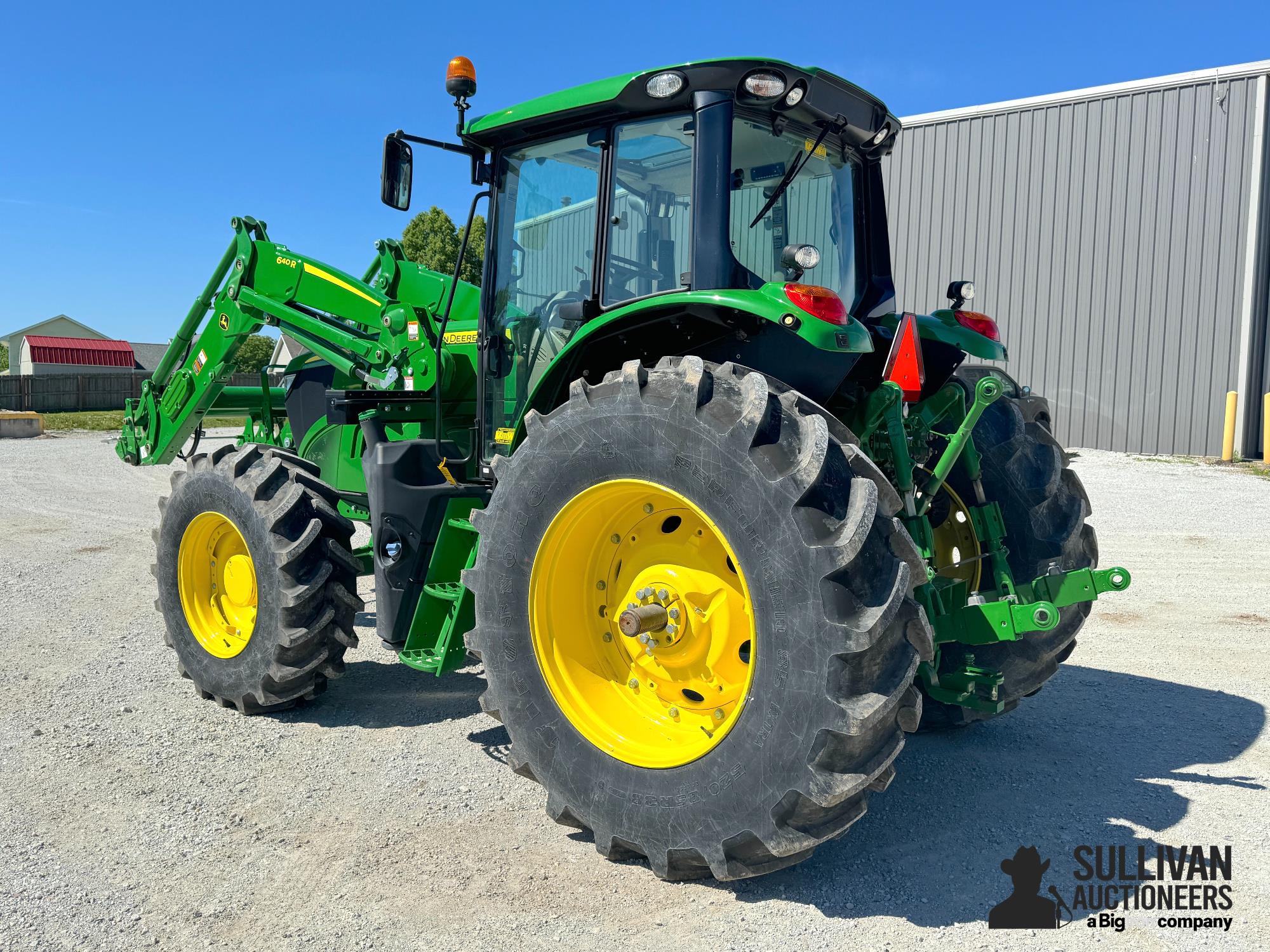

John Deere 6155M

Name: John Deere 6155M
Brand: John Deere

John Deere 6155M: 155 hp tractor — 6.8 L engine, 123 hp PTO, 3718 kg rear lift. Verified specs with sources, UK & US units.

The John Deere 6155M is a tractor model with a rated power of 155 hp, which puts it at the powerful end of its class. This model entered production in 2024. Drive is handled by a powershift transmission. It has a listed operating weight of 5929 kg, and it suits operations of 200–800 ac. See the table below for complete UK and US figures with sourcing.

Rated power

155 hp

Max power

172 hp

Weight

5929 kg

Catalogue coverage

Variants represented

Richest spec table

66 rows

Recorded power

155 hp

Production years

2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Engine

Rated power116 kW (155 hp)OEM

Emissions stageStage VEPA cert

Engine6.8 LDealer

Fuel TypeDieselReference

No of Cylinders4Reference

Emissions complianceStage VReference

Engine torque at rated speedOption 1: 2,100 rpm\\nOption 2: 726 NmReference

AspirationVariable geometry turbochargerReference

Interval for engine oil change750 hoursReference

Interval for engine coolant change6,000 hoursReference

Cooling system27 LReference

PTO & Hydraulics

PTO power92 kW (123 hp)Dealer

Hydraulic flow114 L/minDealer

Rear lift capacity3718 kgDealer

Dimensions

Wheelbase2760 mmDealer

Weight5929 kgDealer

Capacities

Fuel tank269 LDealer

Capacity415 cu. in.Reference

Diesel exhaust fluid (DEF) tank16 LReference

Crankcase oil volume6.2 U.S. galReference

Transmission

Transmission16-speed four-speed power shift 20-speed four-speed power shiftDealer

Transmission TypePower QuadReference

forward and reverse options20x20Reference

Wheel DriveMFWDReference

Rear Axle Drive TypeThree planetary gear reductionReference

Interval for hydraulic/transmission oil change1,500 hoursReference

General

Make & ModelJDXL06.8,324Reference

CreeperOptionalReference

Differential lockYesReference

SCV controlJoystick: Mechanical/electricalReference

Drawbar categoryCategory 2Reference

Drawbar Maximum vertical load2,000 kgReference

Rear Axle Differential LockElectrohydraulically with oil-cooled clutchReference

Front Axle Differential LockSelf-locking differentialReference

Rollover protective structureGearshift location - console/floor\\nConsoleReference

RadioOptional integratedReference

Country of manufacturerGermanyReference

Power

Max Power172 hpReference

Power boost10 percentReference

Front Hitch Electric PowerSeven-pin electrical socketReference

PTO

PTO torque rise40 percentReference

Rear PTO PowerAvailableReference

Rear PTO ControlIn-cab switch and external fender-mounted remote controlReference

Rear PTO RPM540/1,000 rpmReference

Front PTO PowerAvailableReference

Engine Speed on Front PTO speed1,969 rpmReference

Hydraulics

Pump Rated Output (total)114 l/minReference

Remote Valves7Reference

Number of rear selective control valves (SCVs)fourReference

Rear Hitch category (SAE designation)3N/3Reference

Rear Hitch Sensing TypeElectronic lower linkReference

Front Hitch category (SAE designation)3NReference

Front Hitch lift capacity beyond lift points4,400 kg\\n9,700.3 lbReference

Dimensions & weight

Overall Width2,490 mmReference

Ground Clearance530 mmReference

Overall weight6,699.6 kgReference

Wheels & tyres

Rear Wheel Type710/70R38 (200)Reference

Operator station

Cab AvailabilityAvailableReference

Cab Noise level70 dBAReference

Cab glass area52.2 sq ftReference

Cab space96.41 cu ftReference

Cab Seat TypeStandard seatReference

Seat SuspensionAvailableReference

Steering & brakes

Steering typeDynamic load sensing, hydrostatic, flow meteringReference

Electrical

Alternator size14 V/120 ampReference

Battery optionsStandard: 12 V/154 amp-hr\\nOptional: 12 V/174 amp-hrReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
