Tractor · 2021Unverified

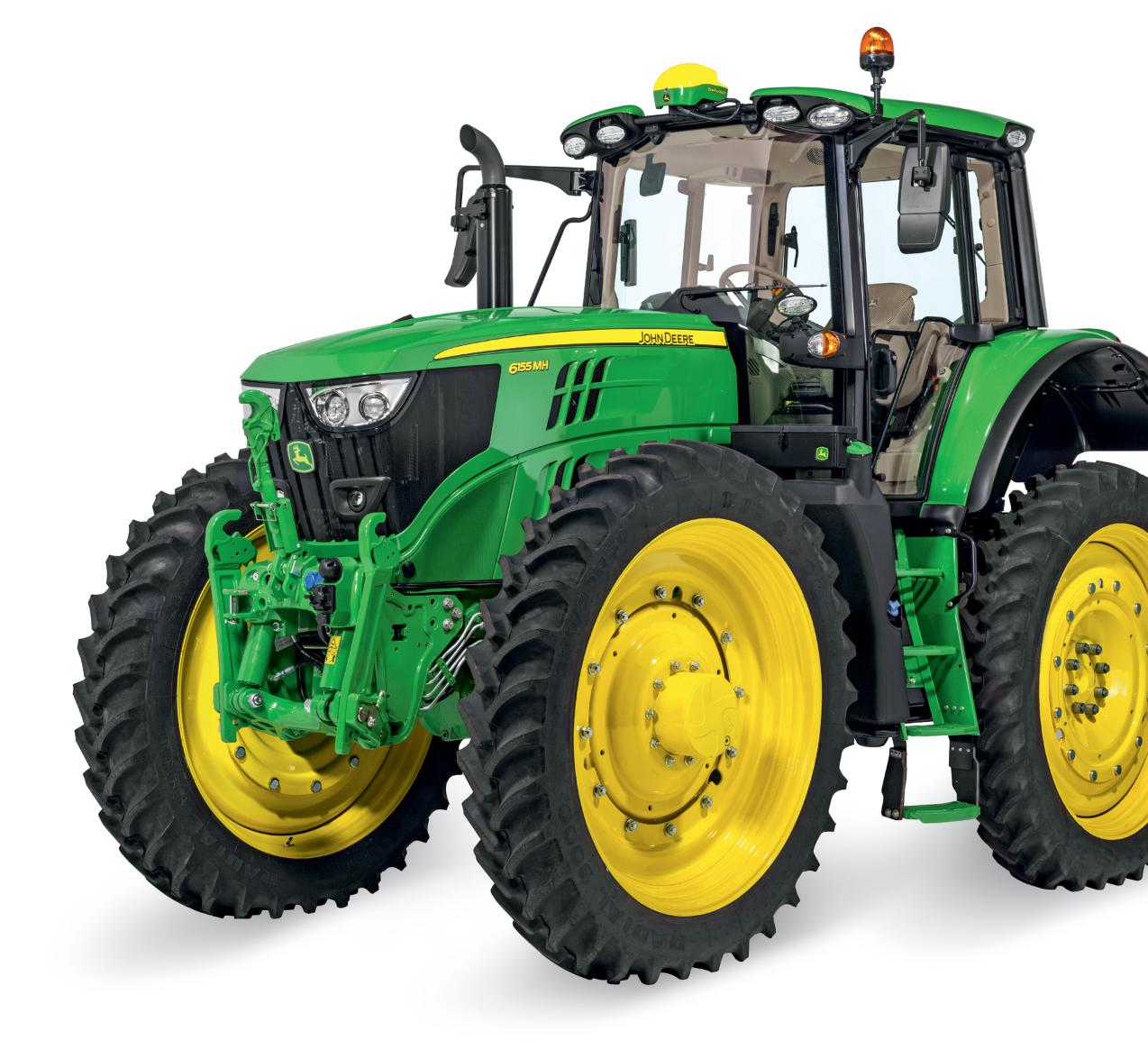

John Deere 6155MH
John Deere 6155MH — 6M Series · 155 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
155 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Original price was $172,179 in 2021Reference
Four-wheel driveReference
Cab standard with air-conditioning.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine (gross)115.6 kWReference
Engine (max)128.3 kWReference
John Deere 6068HL555Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke105 x 127 mmReference
EmissionsStage VReference
Rated Power (gross)115.6 kWReference
Maximum Power (gross)128.3 kWReference
Rated RPM2100Reference
Torque726.1 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity23.5 LReference
Coolant capacity27.0 LReference
Transmission
16-speed four-speed power shiftReference
20-speed four-speed power shiftReference
TransmissionPowerQuad PLUSReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four power shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle. Available with creeper range providing an additional 12 speeds in forward and reverse.Reference
TransmissionAutoQuad PLUSReference
Gears20 forward and reverseReference
Four power shift gears (1-4) in five synchronized ranges (A-E) with left-hand power shuttle. AutoQuad automatically shifts through the available gears within the selected range. Available with creeper range providing an additional 12 speeds in forward and reverse.Reference
TransmissionCommandQuad PLUSReference
Four power shift gears (1-4) in five electro-hydraulically shifted ranges (A-F) with left-hand power shuttle.Reference
PTO & Hydraulics
PTO (claimed)93.2 kWReference
Typeclosed centerReference
Rear valves2 to 3Reference
Pump flow113.9 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Front tire320/90R46Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 320/90R46. Rear: 18.4R38Reference
Clearance (drawbar)68 cmReference
Flange rear axleReference
Rear tread152 to 223 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
