Tractor · 2015Unverified

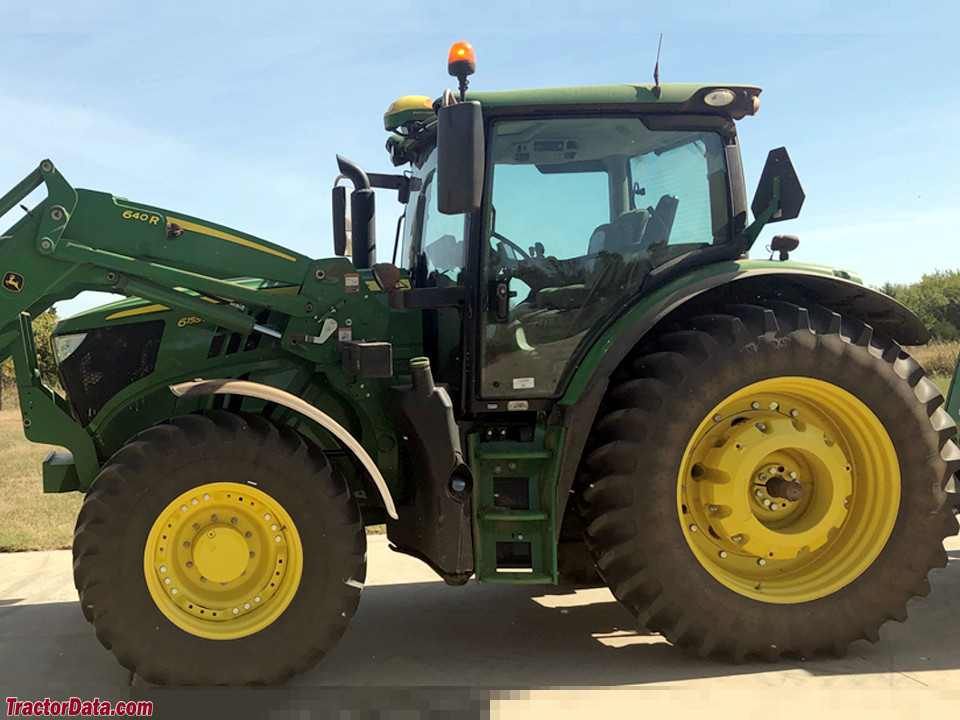

John Deere 6155R
John Deere 6155R — 6R Series · 155 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
155 hp
Max power
113.1 kW
Weight
7723 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $161,542 in 2020Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectrohydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
6155RHhigh-cropReference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank269.9 LReference
Exhaust fluid (DEF)15.9 LReference
Engine (gross)115.6 kWReference
Engine (max)125.3 kWReference
Drawbar (tested)92.0 kWReference
John Deere PowerTech PVSReference
aftercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)115.6 kWReference
Maximum Power (gross)125.3 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power113.1 kWReference
Power at rated engine speed97.0 kWReference
Max power92.0 kWReference
Transmission
16-speed partial power shiftReference
20-speed partial power shiftReference
24-speed eight-speed power shiftReference
infinitely variable transmission (IVT)Reference
TransmissionPowerQuad PLUSReference
Typepartial power shiftReference
Gears16 forward and reverseReference
TransmissionAutoQuad PLUSReference
Gears20 forward and reverseReference
TransmissionDirectDrive ECOReference
Typeeight-speed power shiftReference
Gears24 forward and reverseReference
Typeinfinitely variable transmission (IVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)90.2 kWReference
PTO (tested)113.1 kWReference
Typeclosed-center pressure and flow compensatedReference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow113.9 lpmReference
SCV flow99.9 lpmReference
Rear TypeIII/IIINReference
Controlelectronic lower link draft sensingReference
Rear lift4169 kgReference
DrawbarCat. 2Reference
Rear PTOindependentReference
ClutchelectrohydraulicReference
Power at rated PTO speed104.6 kWReference
Dimensions
2WD Wheelbase298 cmReference
4WD Wheelbase276 cmReference
Weight7723 kgReference
Front tire11.00-20Reference
2WD Rear tire480/80R46Reference
2WD Standard tires (ag)Front: 11.00-20. Rear: 480/80R46Reference
4WD Standard tires (ag)Front: 380/85R30. Rear: 480/80R42Reference
2WD Clearance (front axle)46 cmReference
4WD Clearance (front axle)59 cmReference
Rack-and-pinion rear axle91 by 2550 mmReference
Rack-and-pinion rear axle91 by 2806 mmReference
2WD Front tread148 to 243 cmReference
4WD Front tread146 to 212 cmReference
Rear tread160 to 230 cmReference
Shipping7723 kgReference
Max Drawbar2449 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging amps240Reference
Charging volts14Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Capacities
Max capacity11749 kgReference
Test results
Diesel AutoQuad PLUS 4WDMarch 31 - April 14, 2016Link: OCED Tractor Test 2147 fileReference
PTO performanceReference
Fuel use32.6 l/hourReference
Fuel use31.4 l/hourReference
Fuel use32.9 l/hourReference
Drawbar performanceReference
Max pull6979 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
