Tractor · 2010Unverified

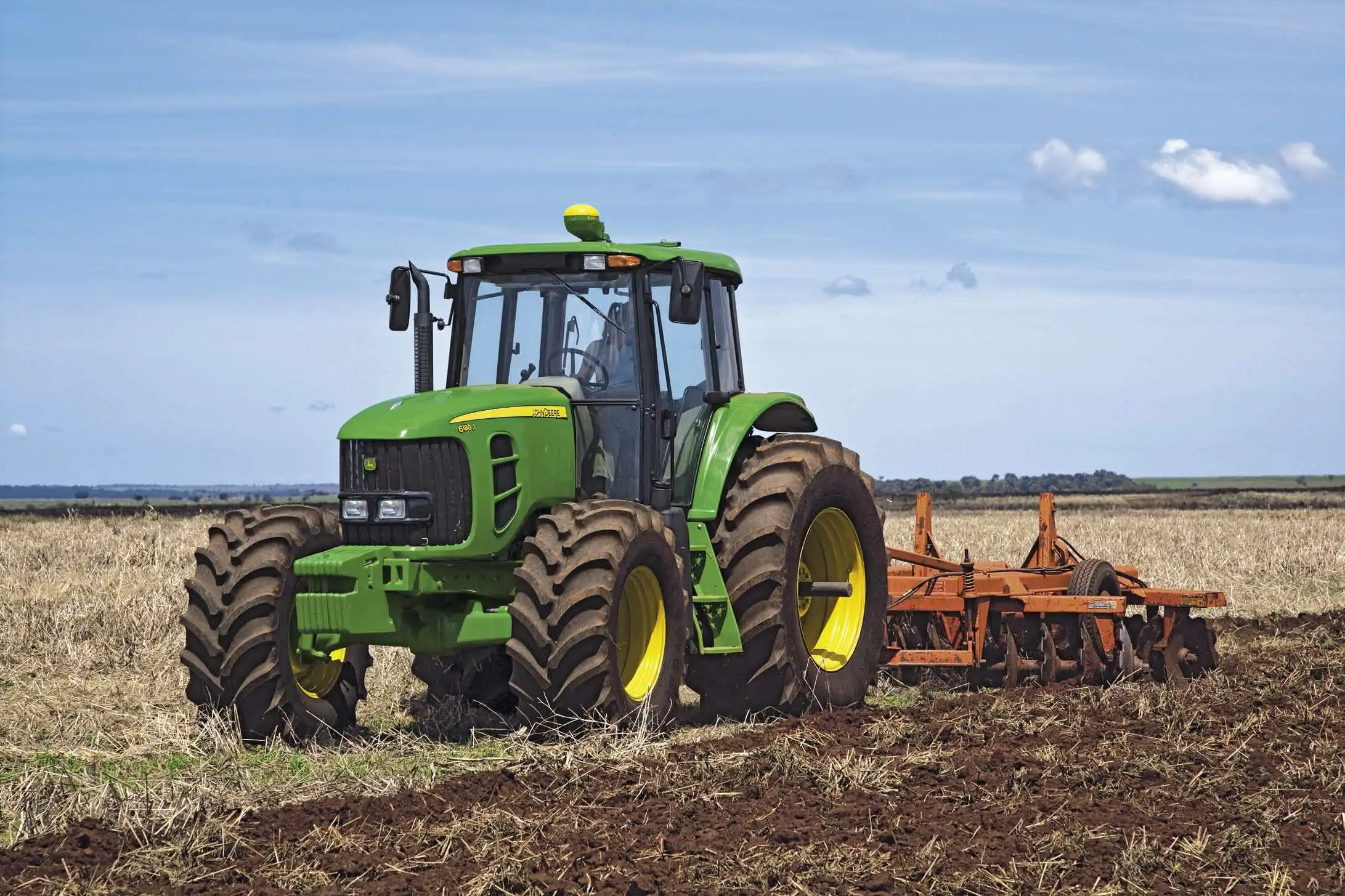

John Deere 6165J
John Deere 6165J — 6J Series · 143 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
143 hp
Weight
15190 to 16290 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Montenegro, BrazilReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank300.0 LReference
Engine123.0 kWReference
John Deere 6068 PowerTechReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power123.0 kWReference
Fuel systemrotary injection pumpReference
Rated RPM2100Reference
Torque716.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
16-speed partial power shiftReference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discsReference
Oil typeJD Hy-GardReference
Four power shift gears (1-4) in four synchronized ranges (A-D).Reference
PTO & Hydraulics
PTO (claimed)106.6 kWReference
Typeclosed center pressure-flow compensated (PFC)Reference
Pressure200.0 barReference
Valves2 to 3Reference
Pump flow110.0 lpmReference
SCV flow105.0 lpmReference
Oil typeJD Hy-GardReference
Rear TypeIIIReference
Controlelectronic lower linkReference
Rear lift (at ends)6001 kgReference
Rear lift (at 24"/610mm)5801 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase273 cmReference
Weight15190 to 16290 poundsReference
Front tire16.9-28Reference
Rear tire20.8-38Reference
Standard tires (ag)Front: 16.9-28. Rear: 20.8-38Reference
Optional tires (ag)Front: 18.4-26. Rear: 24.5-32Reference
Optional tires (ag)Front: 480/70R28. Rear: 650/75R32Reference
Optional tires (ag)Front: 16.9R30. Rear: 20.8R42Reference
Length542 cmReference
Height293 cmReference
Ground clearance52 cmReference
Rear axle92 by 2405 mmReference
Rear axle92 by 2776 mmReference
Front tread142 to 213 cmReference
Rear tread158 to 321 cmReference
ROPS6890 kgReference
Cab7389 kgReference
Ballasted9398 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery volts12Reference
Battery AH150Reference
Speeds
With 20.8-38 R1 rear tires. Reverse speeds are 15% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
