Tractor · 2012Unverified

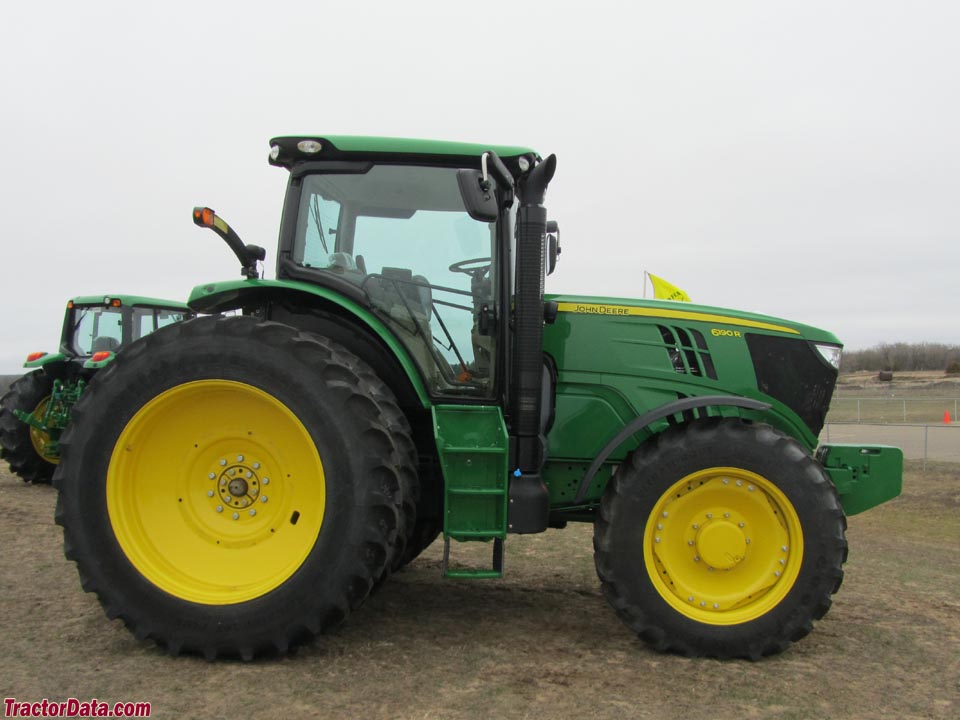

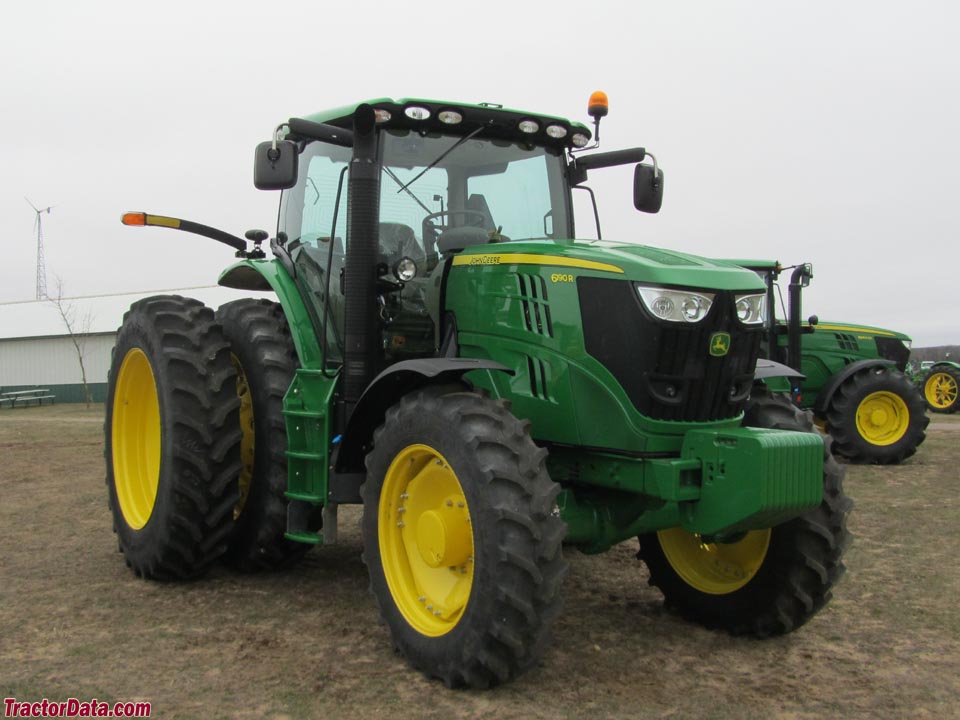

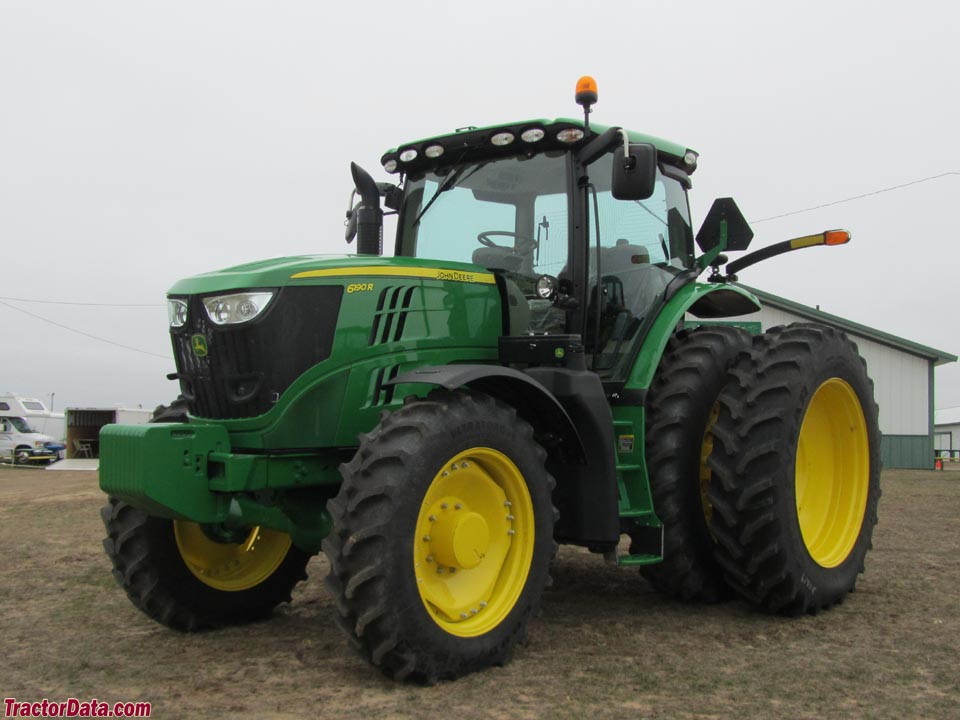

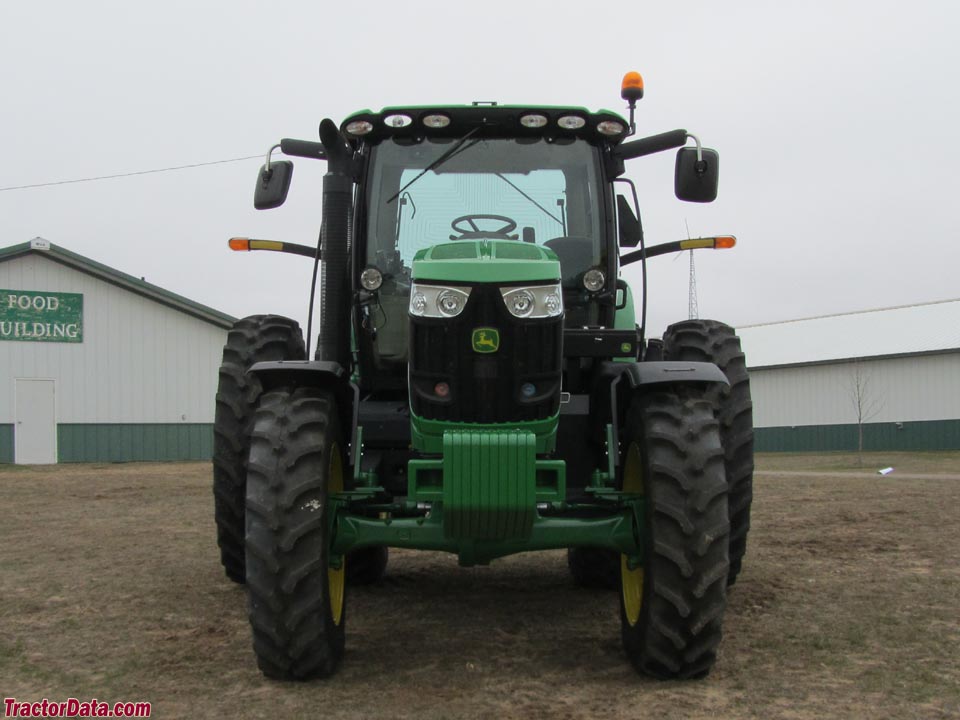

John Deere 6190R
John Deere 6190R — 6R Series · 190 hp. Reference specifications; pending source verification.
The John Deere 6190R is a tractor with a rated output of 190 hp, ranking it among higher-powered machines in its class. It was manufactured from 2012 to 2014 and features a 6-cylinder turbocharged diesel liquid-cooled engine. This engine powers a mechanical front-wheel drive with a hydrostatic transmission. The listed weight of the 6190R is 15500 to 17200 pounds, with an intended application of approximately 600–1,500 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
190 hp
Max power
141.0 kW
Weight
15500 to 17200 pounds
Catalogue coverage
Variants represented
2
Richest spec table
168 rows
Recorded power
190 hp
Transmissions
16-speed partial power shift
Production years
2012-2014
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $158,066 in 2014 with AutoQuadReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockelectro-hydraulic rear lock with wet disc clutchReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference

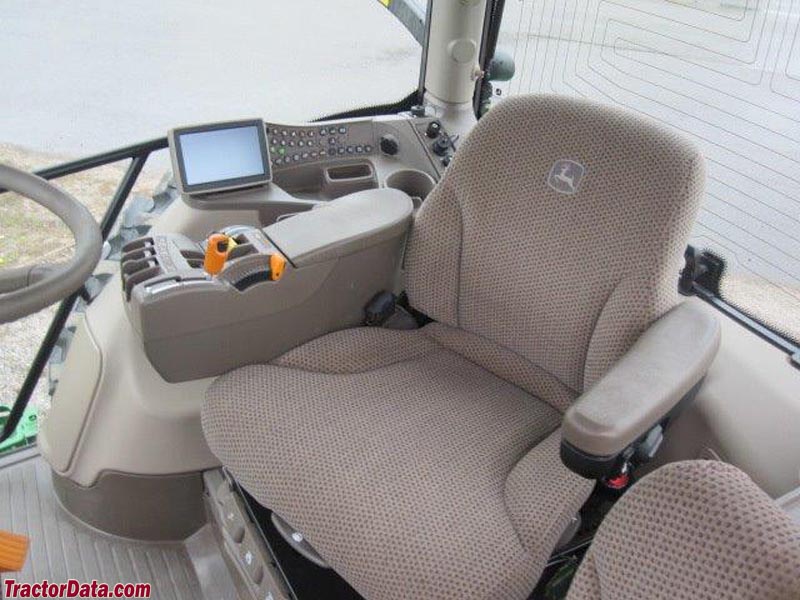

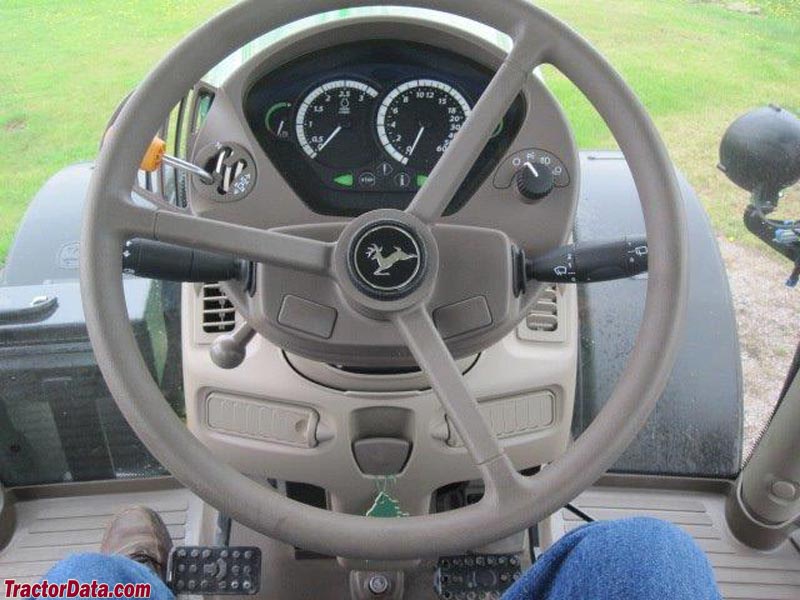

ComfortView cab standard with air-conditioning. Optional adaptive hydraulic cab suspension. GreenStar and AutoTrac ready with ISOBUS connector.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank359.6 LReference
Fuel tank405.0 LReference
Engine (gross)141.7 kWReference
Engine (max)155.9 kWReference
Drawbar (tested)113.9 kWReference
John Deere PowerTech PSXReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
EmissionsInterim Tier 4Reference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)141.7 kWReference
Maximum Power (gross)155.9 kWReference
Fuel systemhigh pressure common railReference
Air cleanerdual stage dryReference
Compression17:1Reference
Rated RPM2100Reference
Idle RPM850-2250Reference
Operating RPM1300-2100Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Oil capacity23.5 LReference
Coolant capacity28.2 LReference
Intake valve clearance0.483 mmReference
Exhaust valve clearance0.533 mmReference
Max power141.0 kWReference
Power at rated engine speed120.5 kWReference
Max power113.9 kWReference
Fuel TypeDieselReference
No of Cylinders6 cylinderReference
Rated engine speed2,100 RPMReference
Emissions complianceInterim Tier 4 | exhaust gas recirculation (EGR)Reference
Engine torque at rated speed297.8 kgReference
Bore and stroke4.19x5.00 inchesReference
Compression ratio17.1Reference
Cooling systemliquid-cooledReference
Transmission
16-speed partial power shiftReference
20-speed partial power shiftReference
infinitely variable transmissionReference
24-speed eight-speed power shiftReference
TransmissionPowerQuad PlusReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Oil capacity89.0 LReference
Four power shift gears (1-4) in four synchronized ranges (A-D) with power reverser lever.Reference
TransmissionAutoQuad Plus EcoReference
Gears20 forward and reverseReference
TransmissionAutoPowr IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
Oil capacity105.1 LReference
TransmissionDirectDriveReference
Typeeight-speed power shiftReference
Gears24 forward and reverseReference
Transmission TypePower QuadReference
Wheel Drive4WDReference
PTO & Hydraulics
PTO (claimed)117.1 kWReference
PTO (tested)141.0 kWReference
Typeclosed center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow155.2 lpmReference
SCV flow99.9 lpmReference

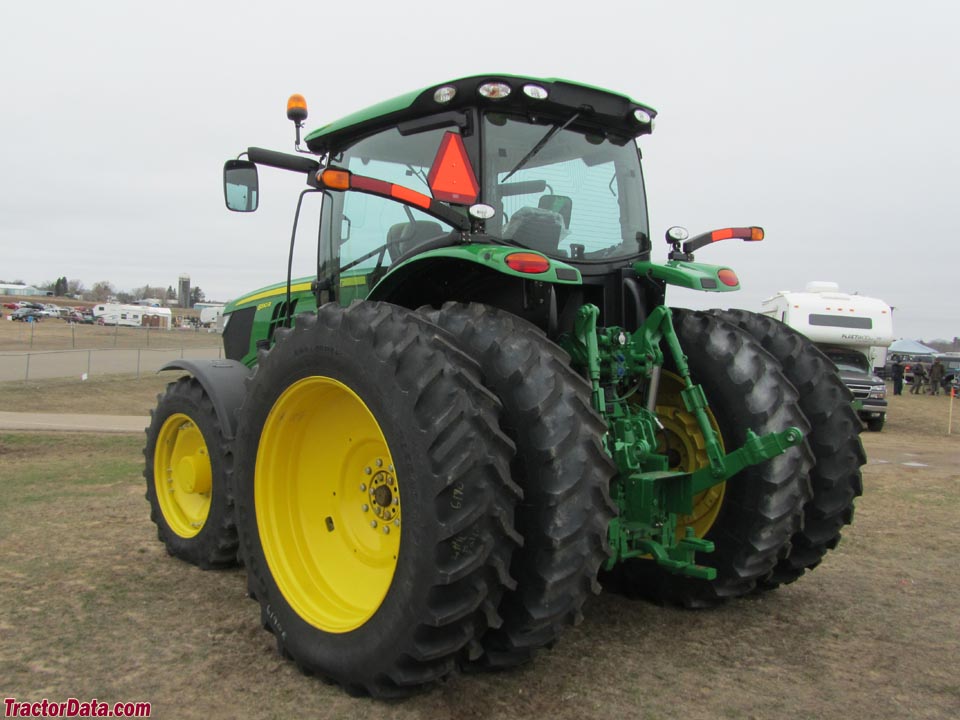

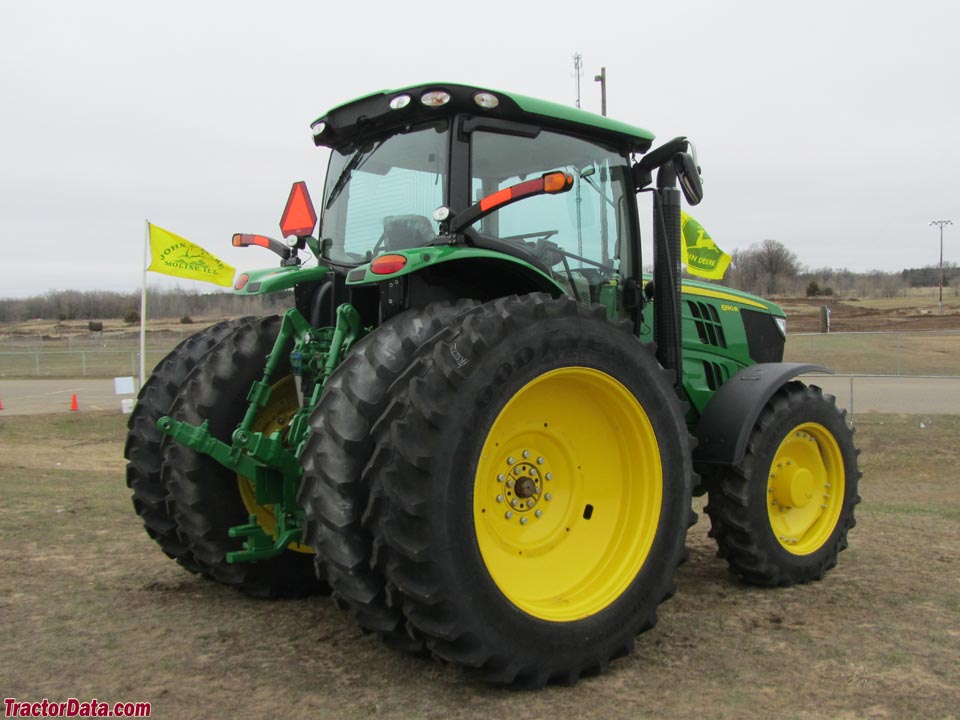

Rear Type3Reference
Controlelectro-hydraulic draft sensingReference
Rear lift (at ends)8500 kgReference
Rear lift (at 24"/610mm)4848 kgReference
DrawbarCategory 3 with 3,525 to 6,170 pound load ratingReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/540E/1000 (1.375)Reference
Rear PTO Type540/1000/1000E (1.375)Reference
Rear PTO Type540/1000 (1.75)Reference
Rear PTO Type540/540E/1000 (1.75)Reference
Rear PTO Type540/1000/1000E (1.75)Reference
Engine RPM540@1932Reference
Engine RPM540E@1775Reference
Engine RPM1000@1932Reference
Engine RPM1000E@1775Reference
Power at rated PTO speed135.7 kWReference
Dimensions
2WD Wheelbase302 cmReference
4WD Wheelbase279 cmReference
Weight15500 to 17200 poundsReference
Front tire490/90R30Reference
Rear tire480/80R46 (4WD)Reference
Standard tires (ag)Front: 490/90R30. Rear: 480/80R46 (4WD)Reference
Length504 cmReference
Width255 cmReference
Height315 cmReference
Clearance (front axle)51 cmReference
Front axleTriple-Link SuspensionReference
Rear axle100 by 2550 mmReference
Optional rear axle100 by 2806 mmReference
Optional rear axle100 by 3009 mmReference
Front tread152 to 223 cmReference
2WD7030 kgReference
4WD7801 kgReference
John Deere 6190R attachments
front-end loaderReference
6190R Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging amps200 (optional)Reference
Battery volts12Reference
Attachment overview
John Deere H360 loaderReference
John Deere H360 MSL loaderReference
John Deere H380 loaderReference
Capacities
Max capacity13000 kgReference
Capacity415 ciReference
Crankcase oil volume24.8 qtsReference
Test results
Diesel AutoQuad 4WDAugust 31 - September 10, 2012Link: OCED Tractor Test 2034 fileReference
PTO performanceReference
Fuel use40.1 l/hourReference
Fuel use37.5 l/hourReference
Drawbar performanceReference
Max pull8453 kgReference
Speeds
With 18.4R46 rear tires.Reference
With 18.4R46 rear tires. 40 KPH transmission is electronically limited in E4 and E4 to 40 KPH (26.1 MPH).Reference
General
Make & ModelJohn DeereReference
Cruise controlAvailableReference
SCV controlJoystickReference
Drawbar categoryCategory 3 with 3,525 to 6,170 pound load ratingReference
Front Axle TypeTriple-Link SuspensionReference
ISOBUS readyTRUEReference
Country of manufacturerUSAReference
Hydraulics
Capacity Valves24 valvesReference
Hydraulics TypeClosed Center Pressure Flow Compensated (PFC)Reference
Maximum operating pressure2,900 psiReference
Remote Valves2 to 4 ValvesReference
Rear Hitch category (SAE designation)Category 3Reference
Rear Hitch maximum lift capacity8,500.3 kgReference
Rear Hitch Sensing Typeelectro-hydraulic draft sensingReference
Power
Rated Power190 hpReference
PTO
PTO Power157 hpReference
Rear PTO PowerAvailableReference
Rear PTO RPM1,000 RPMReference
Front PTO PowerAvailableReference
Engine Speed on Rear PTO speed1,000E@1,775 RPMReference
Engine Speed on Front PTO speed1,000@1,995 RPMReference
Dimensions & weight
Wheelbase302 cmReference
Overall Height315.7 cmReference
Overall Length504.4 cmReference
Overall Width255 cmReference
Ground Clearance55.9 cmReference
Front axle clearance51.2 cmReference
Overall weight7,801.8 kgReference
Wheels & tyres
Rear Wheel Type480/80R46Reference
Front Wheel Type490/90R30Reference
Front Wheel tread range60 to 88 inchesReference
Operator station
Cab AvailabilityAvailableReference
Cab Air conditioning, temperature differentialAvailableReference
Seat SuspensionFALSEReference
Steering & brakes
Steering typeHydrostatic PowerReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
