Tractor · 2015Unverified

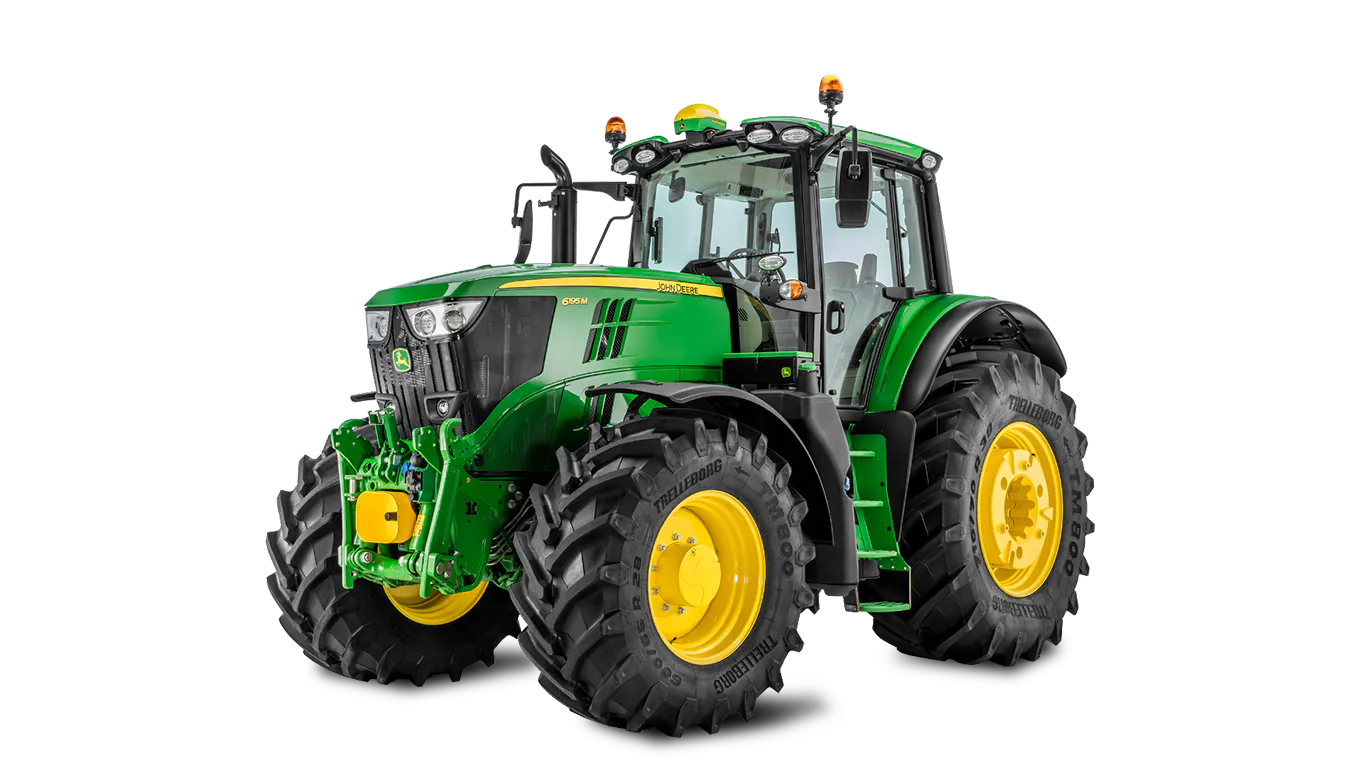

John Deere 6195M

Name: John Deere 6195M
Brand: John Deere

John Deere 6195M — Model year 2015-20202020-2024 · 195 hp. Reference specifications; pending source verification.

The John Deere 6195M is a tractor with a rated power of 195 hp, placing it at the powerful end of its class. Manufactured from 2015 to 2024, it features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. The tractor has a listed operating weight of 7105 kg and is suited to operations covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

195 hp

Max power

135.0 kW

Weight

7105 kg

Catalogue coverage

Variants represented

Richest spec table

162 rows

Recorded power

195 hp

Recorded weight

7105 kg

Transmissions

16-speed four-speed power shift

Production years

2015-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Row-Crop tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditoning.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Fuel tank321.7 LReference

Exhaust fluid (DEF)18.9 LReference

Engine (gross)145.4 kWReference

Engine (max)153.6 kWReference

Drawbar (tested)117.1 kWReference

John Deere PowerTech PSSReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement6.8 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IVReference

Emission controlcooled exhaust-gas recirculation, diesel particulate filter, and selective catalytic reductionReference

Rated Power (gross)145.4 kWReference

Maximum Power (gross)153.6 kWReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Starter power3.0 kWReference

Coolant capacity23.2 LReference

Max power135.0 kWReference

Power at rated engine speed120.1 kWReference

Max power110.7 kWReference

Max power136.4 kWReference

Power at rated engine speed122.5 kWReference

Max power117.1 kWReference

Fuel TypeDieselReference

No of Cylinders4Reference

Emissions complianceStage VReference

Engine torque at rated speedOption 1: 914 Nm\\nOption 2: 2,100 rpmReference

AspirationVariable geometry turbochargerReference

Interval for engine oil change750 hoursReference

Interval for engine coolant change6,000 hoursReference

Cooling system28 LReference

Transmission

16-speed four-speed power shiftReference

20-speed four-speed power shiftReference

TransmissionPowrQuad PLUSReference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Clutchwet discReference

Four push-button gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle lever and push-button clutch.Reference

TransmissionPowrQuadReference

Gears20 forward and reverseReference

Four power-shift gears (1-4) in five synchronized ranges (A-F) with left-hand power shuttle lever. Optional PowrQuad PLUS with push-button gear shift and push-button clutch.Reference

TransmissionAutoQuad PLUSReference

Four push-button gears (1-4) in five synchronized ranges (A-F) with left-hand power shuttle lever. AutoShift mode enables programmable automatic gear shifting.Reference

Transmission TypePower QuadReference

forward and reverse options20x20Reference

Wheel DriveMFWDReference

Rear Axle Drive TypeThree planetary gear reductionReference

Interval for hydraulic/transmission oil change1,500 hoursReference

PTO & Hydraulics

PTO (claimed)117.8 kWReference

PTO (tested)136.4 kWReference

Typeclosed-center pressure-and-flow compensatedReference

Pressure200.0 barReference

Rear valves3Reference

Mid valves3Reference

Pump flow113.6 lpmReference

SCV flow99.9 lpmReference

Rear TypeIIIN/IIReference

Controlelectronic lower-link draft sensingReference

Rear lift4851 kgReference

DrawbarCat. 2Reference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type540Reference

Engine RPM540@1932Reference

Engine RPM1000@1932Reference

Power at rated PTO speed134.0 kWReference

Power at rated PTO speed132.1 kWReference

Dimensions

Wheelbase279 cmReference

Weight7105 kgReference

Front tire10.00-16Reference

2WD Rear tire460/85R38Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 460/85R38Reference

4WD Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference

Length498 cmReference

Width255 cmReference

Height (cab)304 cmReference

Clearance (front axle)60 cmReference

Rack-and-pinion rear axle91 by 2550 mmReference

Shipping7105 kgReference

Max Drawbar2449 kgReference

John Deere 6195M attachments

front-end loaderReference

6195M Serial Number Location

Serial number plate on the right side of the tractor frame, above and to the rear of the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging amps200Reference

Charging volts14Reference

Battery volts12Reference

Alternator size14 V/120 ampReference

Battery optionsStandard: 12 V/154 amp-hr\\nOptional: 12 V/174 amp-hrReference

Attachment overview

John Deere H360 loaderReference

John Deere H380 loaderReference

Capacities

Max capacity12299 kgReference

Capacity415 cu. in.Reference

Diesel exhaust fluid (DEF) tank20 LReference

Crankcase oil volume6.2 U.S. galReference

Test results

OECD 3022: diesel AutoQuad Plus 4WDReference

OECD 3148: diesel PowrQuad 4WDReference

Diesel AutoQuad Plus 4WDOctober 2016 - November 2016, Link: OCED Tractor Test 3022 fileReference

PTO performanceReference

Fuel use37.5 l/hourReference

Fuel use36.0 l/hourReference

Fuel use38.2 l/hourReference

Drawbar performanceReference

Fuel use36.7 l/hourReference

Max pull7690 kgReference

Diesel PowrQuad 4WDMarch 2019 - April 2019, Link: OCED Tractor Test 3148 fileReference

Fuel use38.6 l/hourReference

Max pull8105 kgReference

Speeds

With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.Reference

General

Make & ModelJDXL06.8,324Reference

CreeperNot availableReference

SCV controlJoystick: Mechanical/electricalReference

Drawbar categoryCategory 2Reference

Drawbar Maximum vertical load3,000 kgReference

Rear Axle Differential LockElectrohydraulically with oil-cooled clutchReference

Front Axle Differential LockSelf-locking differentialReference

Rollover protective structureGearshift location - console/floor\\nConsoleReference

RadioOptional integratedReference

Country of manufacturerGermanyReference

Power

Rated Power196 hpReference

Power boost10 percentReference

Front Hitch Electric PowerSeven-pin electrical socketReference

PTO

PTO Power159 hpReference

PTO torque rise40 percentReference

Rear PTO PowerAvailableReference

Rear PTO ControlIn-cab switch and external fender-mounted remote controlReference

Rear PTO RPM1,000 rpmReference

Front PTO PowerAvailableReference

Engine Speed on Front PTO speed1,969 rpmReference

Hydraulics

Pump Rated Output (total)114 l/minReference

Remote Valves7Reference

Number of rear selective control valves (SCVs)fourReference

Rear Hitch category (SAE designation)3N/3Reference

Rear Hitch Sensing TypeElectronic lower linkReference

Front Hitch category (SAE designation)3NReference

Front Hitch lift capacity beyond lift points4,400 kg\\n9,700.3 lbReference

Dimensions & weight

Overall Width2,550 mmReference

Ground Clearance545 mmReference

Overall weight7,499.7 kgReference

Wheels & tyres

Rear Wheel Type710/70R38 (200)Reference

Operator station

Cab AvailabilityAvailableReference

Cab Noise level70 dBAReference

Cab glass area52.2 sq ftReference

Cab space96.41 cu ftReference

Cab Seat TypeStandard seatReference

Seat SuspensionAvailableReference

Steering & brakes

Steering typeDynamic load sensing, hydrostatic, flow meteringReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
