Tractor · 1993Unverified
John Deere 6200
John Deere 6200 — Utility tractor · 89 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
89 hp
Max power
52.6 kW
Weight
7420 to 8850 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Original price was $31,000 in 1998Reference
Two- or four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post folding ROPS. ComfortGard Cab optional.Reference
Variants
6200utility tractorReference
6200Llow-profileReference
Engine
John Deere 3.9L 4-cyl dieselReference
Engine (gross)66.4 kWReference
Drawbar (claimed)39.5 kWReference
Drawbar (tested)39.8 kWReference
John Deere CD4039Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Power (gross)66.4 kWReference
Rated RPM2300Reference
Idle RPM1840-2300Reference
Starter volts12Reference
Oil capacity12.1 LReference
ROPS Coolant capacity13.7 LReference
Cab Coolant capacity17.5 LReference
Max power52.6 kWReference
Power at rated engine speed50.9 kWReference
Max power39.7 kWReference
Max power52.2 kWReference
Power at rated engine speed49.8 kWReference
Max power39.8 kWReference
Transmission
12-speed fully synchronizedReference
16-speed partial power shiftReference
21-speed partially synchronizedReference
28-speed partial power shiftReference
TransmissionJohn Deere SyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutchtriple 9-inch wet disc PermaClutch 2Reference
Standard transmission. Three gears, plus reverse, in four ranges.Reference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle. Shuttle may be either right or left hand.Reference
TransmissionJohn Deere SyncroPlus CreeperReference
Typepartially synchronizedReference
Gears21 forward and 7 reverseReference
Adds a creeper range to the SyncroPlus, engaged by a separate lever.Reference
TransmissionJohn Deere PowrQuad CreeperReference
Gears28 forward and reverseReference
Creeper range provides an additional 12 speeds to the PowrQuad transmission.Reference
PTO & Hydraulics
PTO (claimed)49.2 kWReference
PTO (tested)52.6 kWReference
Hydraulic system46.9 LReference
Typeclosed-center pressure flow compensated (PFC)Reference
Capacity46.9 LReference
Pressure200.0 barReference
Valves1 to 4Reference
Total flow68.1 lpmReference
Total flow94.6 lpmReference
Rear TypeIIReference
Controllower link draft sensingReference
Rear lift (at ends)2277 kgReference
Rear lift (at 24"/610mm)2152 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Power at rated PTO speed51.9 kWReference
Power at rated PTO speed50.9 kWReference
Capacities
ROPS Fuel109.8 LReference
Cab Fuel159.0 LReference
Dimensions
Wheelbase240 cmReference
Weight7420 to 8850 poundsReference
Front tire7.50-18Reference
2WD Rear tire18.4-30Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 18.4-30Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference
Length419 cmReference
Width217 cmReference
Clearance (front axle)57 cmReference
Clearance (front axle)45 cmReference
2WD ROPS Shipping3365 kgReference
4WD ROPS Shipping3590 kgReference
2WD cab Shipping3595 kgReference
4WD cab Shipping3820 kgReference
Operating4014 kgReference
Steering wheel203 cmReference
John Deere 6200 attachments
front-end loaderReference
6200 Serial Number Location
Serial number plate on the right side of the John Deere 6200 tractor frame, above the front axle.Reference
Links
:Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview

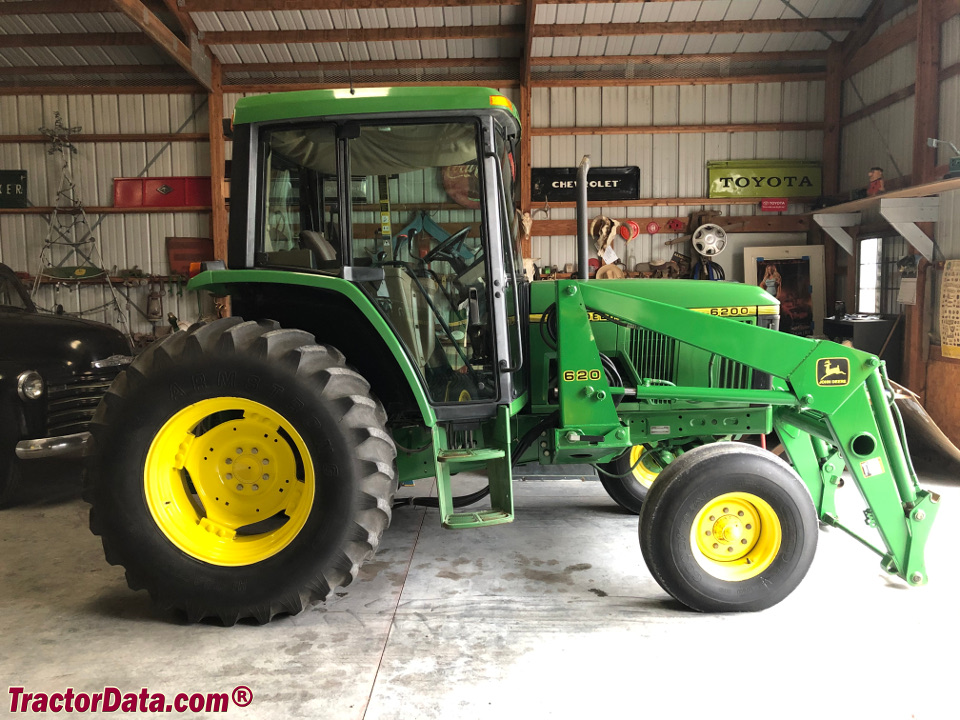

John Deere 620 loaderReference
John Deere 640NSL loaderReference
John Deere 640SL loaderReference
John Deere 6200 Height
ROPS254 cmReference
Cab259 cmReference
Exhaust257 cmReference
Exhaust240 cmReference
Test results
OECD 1540: diesel SyncroPlus 2WDReference
OECD 1540: diesel PowrQuad 2WDReference
Diesel SyncroPlus 2WD1994Link: OCED Tractor Test 1540 fileReference
PTO performanceReference
Fuel use14.8 l/hourReference
Fuel use15.1 l/hourReference
Drawbar performanceReference
Gear 3B used for power test.Reference
Max pull3197 kgReference
Gear 2B used for pull test.Reference
Diesel PowrQuad 2WD1994Link: OCED Tractor Test 1540 fileReference
Fuel use14.4 l/hourReference
Gear 2C used for power test.Reference
Max pull3483 kgReference
Gear 1B used for pull test.Reference
Speeds
With 18.4-30 rear tires.Reference
With 18.4-30 rear tires. Reverse speeds are 20% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
