Tractor · 1999Unverified

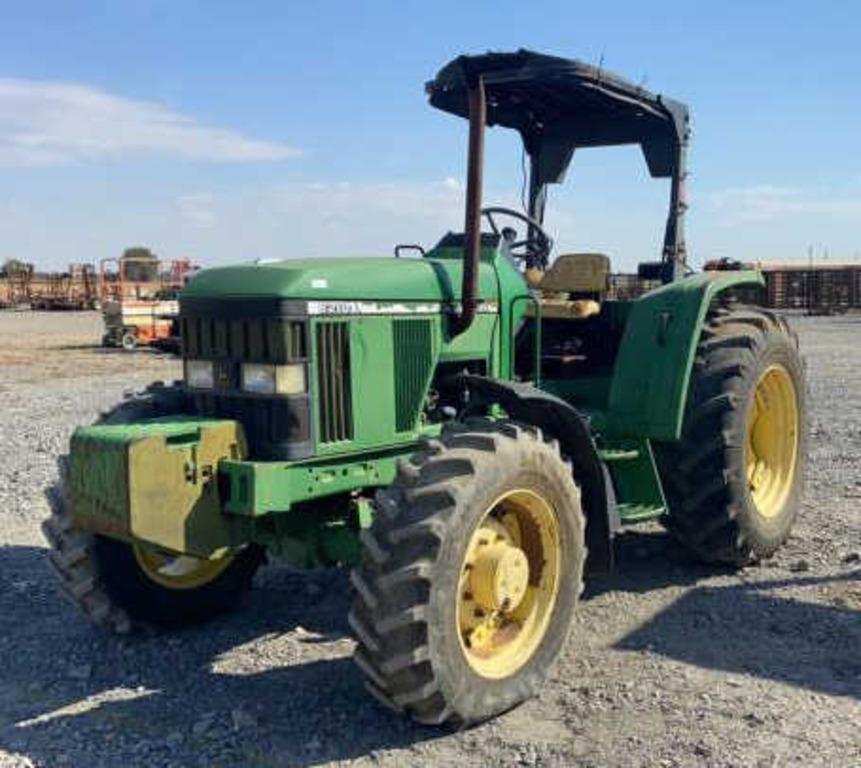

John Deere 6210L

Name: John Deere 6210L
Brand: John Deere

John Deere 6210L — Orchard/Vineyard tractor · 90 hp. Reference specifications; pending source verification.

The John Deere 6210L is a tractor with a rated power output of 90 hp, positioned as a mid-range model within its class. Manufactured from 1999 to 2002, the 6210L is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a powershift transmission. Its operating weight is listed as 7420 to 7916 pounds. The tractor is suitable for operations covering areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Weight

7420 to 7916 pounds

Catalogue coverage

Variants represented

Richest spec table

95 rows

Recorded power

90 hp

Transmissions

12-speed fully synchronized

Production years

1999-2002

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Orchard/Vineyard tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic wet discReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post folding ROPS.Reference

Variants

6210utility tractorReference

6210Llow-profileReference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank116.2 LReference

Engine (gross)67.1 kWReference

John Deere 4045Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

Power (gross)67.1 kWReference

Rated RPM2300Reference

Torque371.5 NmReference

Torque RPM1300Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Starter power3.0 kWReference

Coolant capacity11.0 LReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity12.1 LReference

Transmission

12-speed fully synchronizedReference

16-speed power shuttleReference

16-speed partial power shiftReference

38-speed four-speed power shiftReference

TransmissionJohn Deere SyncroPlusReference

Typefully synchronizedReference

Gears12 forward and 4 reverseReference

Oil capacity51.9 LReference

Oil type[30oC]Reference

-10oF [-23oC]↑: JD HY-GARDReference

86oF [30oC]↓: Low-Visocosity HY-GARDReference

Three gears, plus reverse, in four ranges.Reference

TransmissionJohn Deere SynchroPlus Power ReverserReference

Typepower shuttleReference

Gears16 forward and reverseReference

Four synchronized in four ranges, with power reverser.Reference

TransmissionJohn Deere PowrQuadReference

Typepartial power shiftReference

Oil capacity48.8 LReference

Oil type[30oC]Reference

86oF [30oC]↓: Low-Viscosity HY-GARDReference

Four power shift gears in four synchronized ranges, with reverser.Reference

TransmissionPowrQuad CreeperReference

Typefour-speed power shiftReference

Gears38 forward and reverseReference

Creeper option adds an additional low-speed for ranges A, B, and C.Reference

PTO & Hydraulics

PTO (claimed)53.7 kWReference

Typeclosed center load sensingReference

Pressure200.0 barReference

Valves1 to 4Reference

Pump flow96.1 lpmReference

Pump flow71.5 lpmReference

Rear TypeIIReference

Controlelectronic lower-link draft sensingReference

Rear lift2152 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

Wheelbase240 cmReference

Weight7420 to 7916 poundsReference

Front tire27/9.5-15Reference

2WD Rear tire16.9-24Reference

2WD Standard tires (ag)Front: 27/9.5-15. Rear: 16.9-24Reference

4WD Standard tires (ag)Front: 10.5/80-18. Rear: 16.9-24Reference

Length413 cmReference

Width165 cmReference

Orchard Width142 cmReference

2WD Shipping3365 kgReference

4WD Shipping3590 kgReference

Steering wheel164 cmReference

6210L Serial Numbers

Location:Serial number plate on the right side of the tractor frame.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Battery CCA850Reference

Battery CCA1230Reference

Battery volts12Reference

Battery AH110Reference

Battery AH154Reference

Capacities

Max capacity6999 kgReference

John Deere 6210L Height

2WD Hood158 cmReference

4WD Hood154 cmReference

ROPS237 cmReference

Speeds

With 18.4-30 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
