Tractor · 2012Unverified

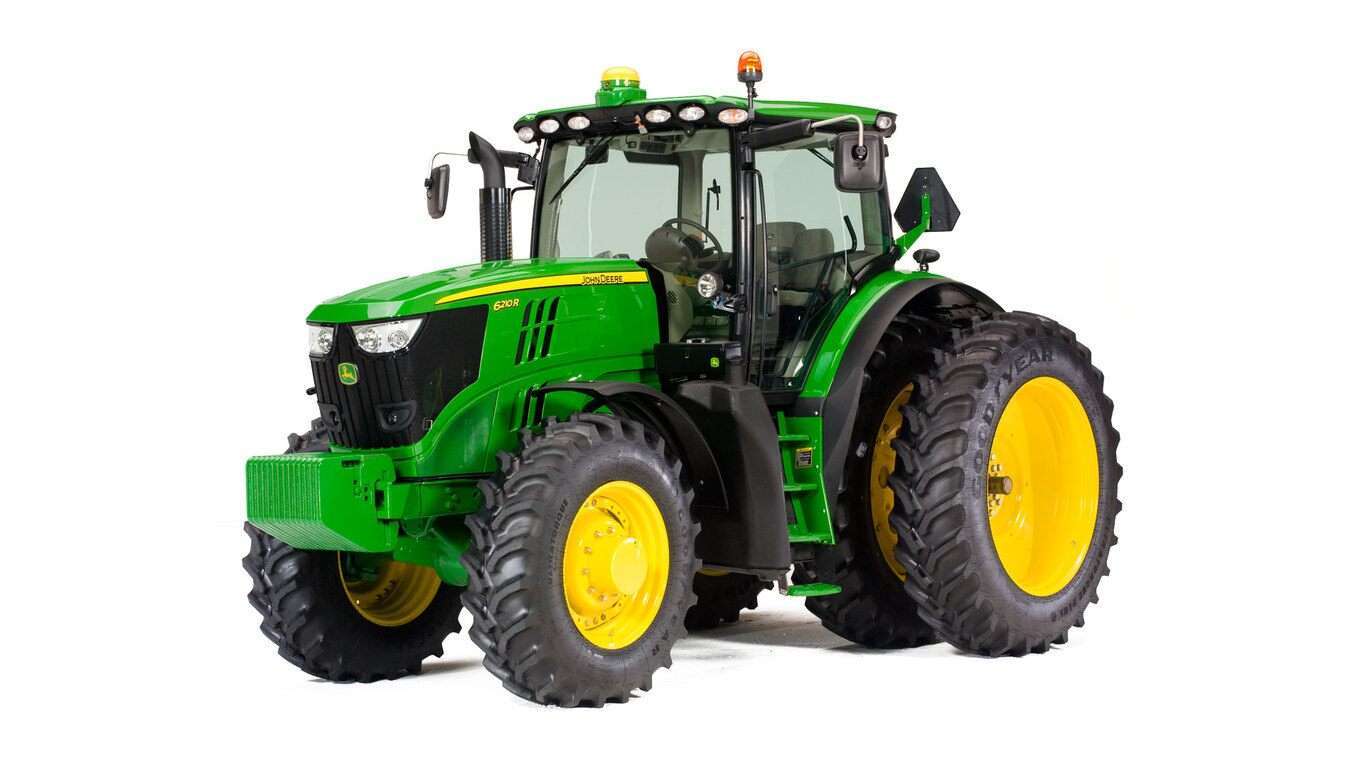

John Deere 6210R
John Deere 6210R — 6R Series · 210 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
210 hp
Max power
153.0 kW
Weight
17200 to 18180 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $166,924 in 2014 with AutoQuadReference
Four-wheel driveReference
Differential lockelectro-hydraulic rear lock with wet disc clutchReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
ComfortView cab standard with air-conditioning. Optional adaptive hydraulic cab suspension. GreenStar and AutoTrac ready with ISOBUS connector.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank359.6 LReference
Fuel tank405.0 LReference
Engine (gross)156.6 kWReference
Engine (max)172.3 kWReference
Drawbar (tested)127.0 kWReference
John Deere PowerTech PSXReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
EmissionsInterim Tier 4Reference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)156.6 kWReference
Maximum Power (gross)172.3 kWReference
Fuel systemhigh pressure common railReference
Air cleanerdual stage dryReference
Compression17:1Reference
Rated RPM2100Reference
Idle RPM850-2250Reference
Operating RPM1300-2100Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Oil capacity23.5 LReference
Coolant capacity28.2 LReference
Intake valve clearance0.483 mmReference
Exhaust valve clearance0.533 mmReference
Max power153.0 kWReference
Power at rated engine speed133.6 kWReference
Max power127.0 kWReference
Transmission
16-speed partial power shiftReference
20-speed partial power shiftReference
infinitely variable transmissionReference
24-speed eight-speed power shiftReference
TransmissionPowerQuad PlusReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Oil capacity89.0 LReference
Oil typehydraulic wet discReference
Four power shift gears (1-4) in four synchronized ranges (A-D) with power reverser lever.Reference
TransmissionAutoQuad Plus EcoReference
Gears20 forward and reverseReference
Clutchhydraulic wet discReference
TransmissionAutoPowr IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
Oil capacity105.1 LReference
TransmissionDirectDriveReference
Typeeight-speed power shiftReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)130.5 kWReference
PTO (tested)153.0 kWReference
Typeclosed center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow155.2 lpmReference
SCV flow99.9 lpmReference
Rear Type3Reference
Controlelectro-hydraulic draft sensingReference
Rear lift (at ends)9548 kgReference
Rear lift (at 24"/610mm)5539 kgReference
DrawbarCategory 3 with 3,525 to 6,170 pound load ratingReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/540E/1000 (1.375)Reference
Rear PTO Type540/1000/1000E (1.375)Reference
Rear PTO Type540/1000 (1.75)Reference
Rear PTO Type540/540E/1000 (1.75)Reference
Rear PTO Type540/1000/1000E (1.75)Reference
Engine RPM540@1932Reference
Engine RPM540E@1775Reference
Engine RPM1000@1932Reference
Engine RPM1000E@1775Reference
Power at rated PTO speed148.9 kWReference
Dimensions
Wheelbase279 cmReference
Weight17200 to 18180 poundsReference
Front tire420/90R30Reference
Rear tire480/80R46Reference
Standard tires (ag)Front: 420/90R30. Rear: 480/80R46Reference
Length504 cmReference
Width255 cmReference
Height315 cmReference
Clearance (front axle)51 cmReference
Front axleTriple-Link SuspensionReference
Rear axle100 by 2550 mmReference
Optional rear axle100 by 2806 mmReference
Optional rear axle100 by 3009 mmReference
Front tread152 to 223 cmReference
7801 kgReference
Operating8246 kgReference
Ballasted10689 kgReference
John Deere 6210R attachments
front-end loaderReference
6210R Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging amps200 (optional)Reference
Battery volts12Reference
Attachment overview
John Deere H360 loaderReference
John Deere H360 MSL loaderReference
John Deere H380 loaderReference
Capacities
Max capacity13000 kgReference
Test results
Diesel AutoQuad 4WDSeptember 7 - 9, 2012Link: OCED Tractor Test 2035 fileReference
PTO performanceReference
Fuel use43.1 l/hourReference
Fuel use40.5 l/hourReference
Fuel use43.5 l/hourReference
Drawbar performanceReference
Max pull8490 kgReference
Speeds
With 18.4R46 rear tires.Reference
With 18.4R46 rear tires. 40 KPH transmission is electronically limited in E4 and E4 to 40 KPH (26.1 MPH).Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
