Tractor · 2003Unverified
John Deere 6215
John Deere 6215 — Utility tractor · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Max power
59.9 kW
Weight
7695 to 8987 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. ComfortVantage Cab optional with air-conditioning.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank165.0 LReference
Engine (gross)69.0 kWReference
Engine (net)67.1 kWReference
Drawbar (tested)46.4 kWReference
John Deere 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (net)67.1 kWReference
Rated Power (gross)69.0 kWReference
Compression17.8:1Reference
Rated RPM2300Reference
Operating RPM1500-2300Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Starter power3.1 kWReference
Oil capacity15.9 LReference
ROPS Coolant capacity11.0 LReference
Cab Coolant capacity13.5 LReference
Max power59.9 kWReference
Power at rated engine speed55.6 kWReference
Max power46.4 kWReference
Transmission
12-speed fully synchronizedReference
16-speed power shuttleReference
16-speed four-speed power shiftReference
TransmissionSyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutchwet discReference
Three synchronized gears (1-3) plus reverse (R) in four synchronized ranges (A-D).Reference
TransmissionSyncroPlus ReverserReference
Typepower shuttleReference
Gears16 forward and reverseReference
Reverser option adds left-hand power shuttle lever to SyncroPlus transmission. Four synchronized gears (1-4) in four synchronized ranges (A-D) with shuttle lever.Reference
TransmissionPowrQuadReference
Typefour-speed power shiftReference
Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle lever.Reference
PTO & Hydraulics
PTO (claimed)53.7 kWReference
PTO (tested)59.9 kWReference
Typeconstant-flow load-sensingReference
Valves1 to 4Reference
Pump flow66.2 lpmReference
Rear TypeIIReference
Controlelectro-hydraulic lower-link draft sensingReference
Rear lift (at 24"/610mm)2280 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540Reference
Power at rated PTO speed56.6 kWReference
Dimensions
Wheelbase240 cmReference
Weight7695 to 8987 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4-30Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-30Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 18.4-34Reference
4WD Optional tires (ag)Front: 12.4-24. Rear: 18.4-34Reference
4WD Optional tires (ag)Front: 13.6-24. Rear: 18.4-30Reference
4WD Optional tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
Length413 cmReference
Height (exhaust)246 cmReference
Flange rear axleReference
2WD ROPS Shipping3490 kgReference
2WD Cab Shipping3891 kgReference
4WD ROPS Shipping3687 kgReference
4WD Cab Shipping4076 kgReference
John Deere 6215 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery CCA830Reference
Battery volts12Reference
Battery AH110Reference
Attachment overview

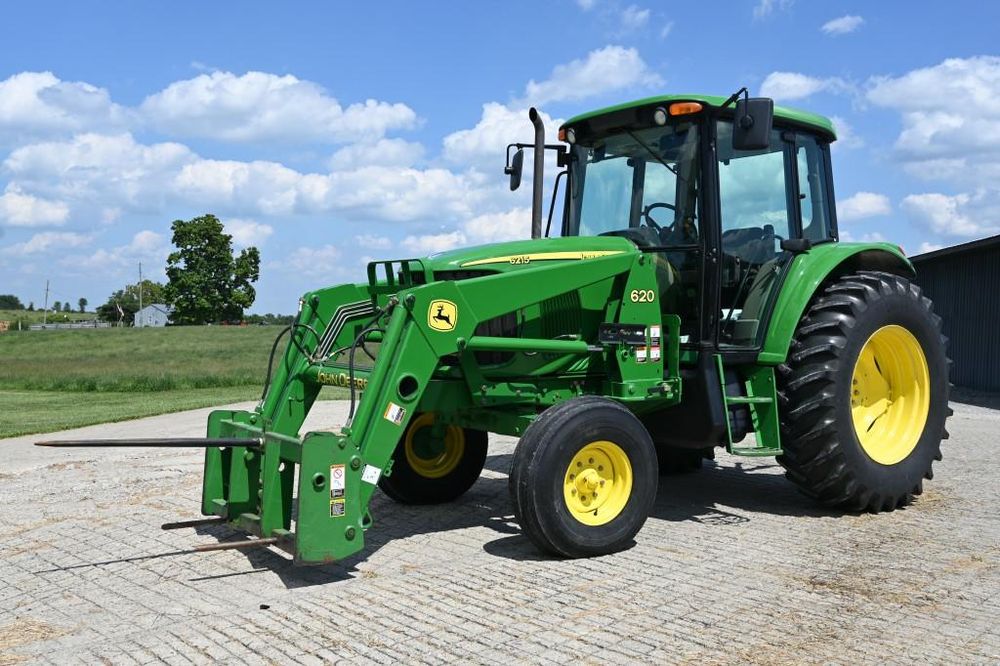

John Deere 620 loaderReference
John Deere 640 loaderReference
The John Deere model 620 loader was only compatible with 6215 two-wheel drive tractors.Reference
Test results
Diesel 16-speed 4WDDecember 2004 - January 2005, Link: OCED Tractor Test 2237 fileReference
PTO performanceReference
Fuel use18.9 l/hourReference
Fuel use19.3 l/hourReference
Drawbar performanceReference
Max pull4300 kgReference
Speeds
With 18.4-34 rear tires.Reference
With 18.4-34 rear tires. Reverse speeds are 20% faster than forward speeds.Reference
With 18.4-38 rear tires. Reverse speeds are 20% faster than forward speeds.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
