Tractor · 2015Unverified

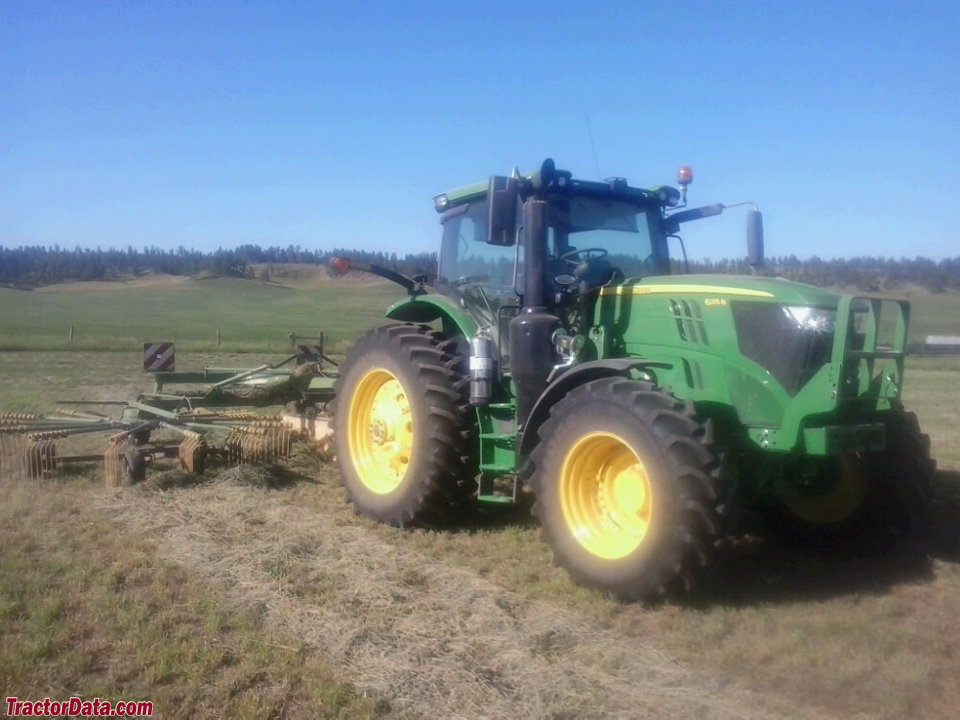

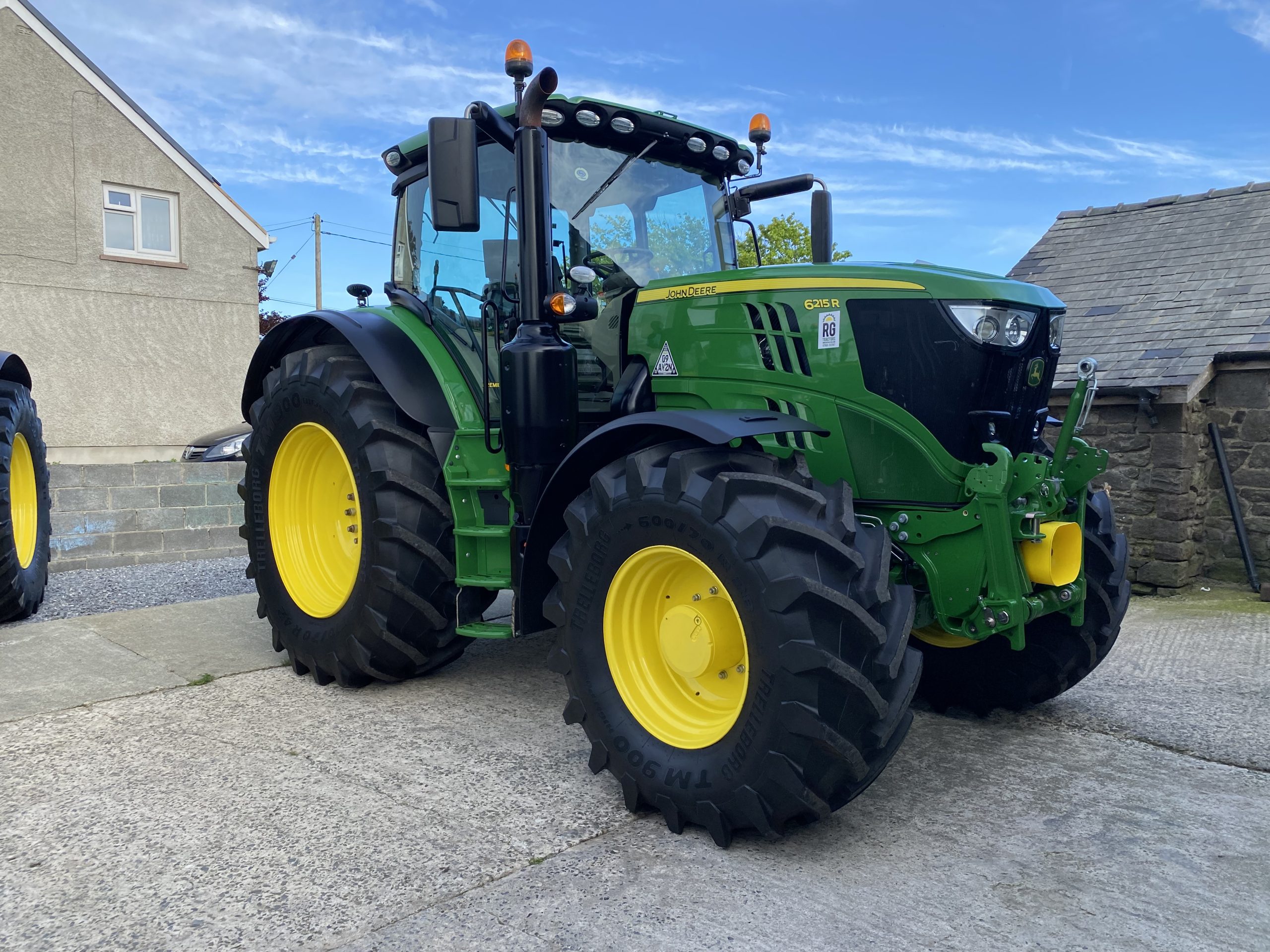

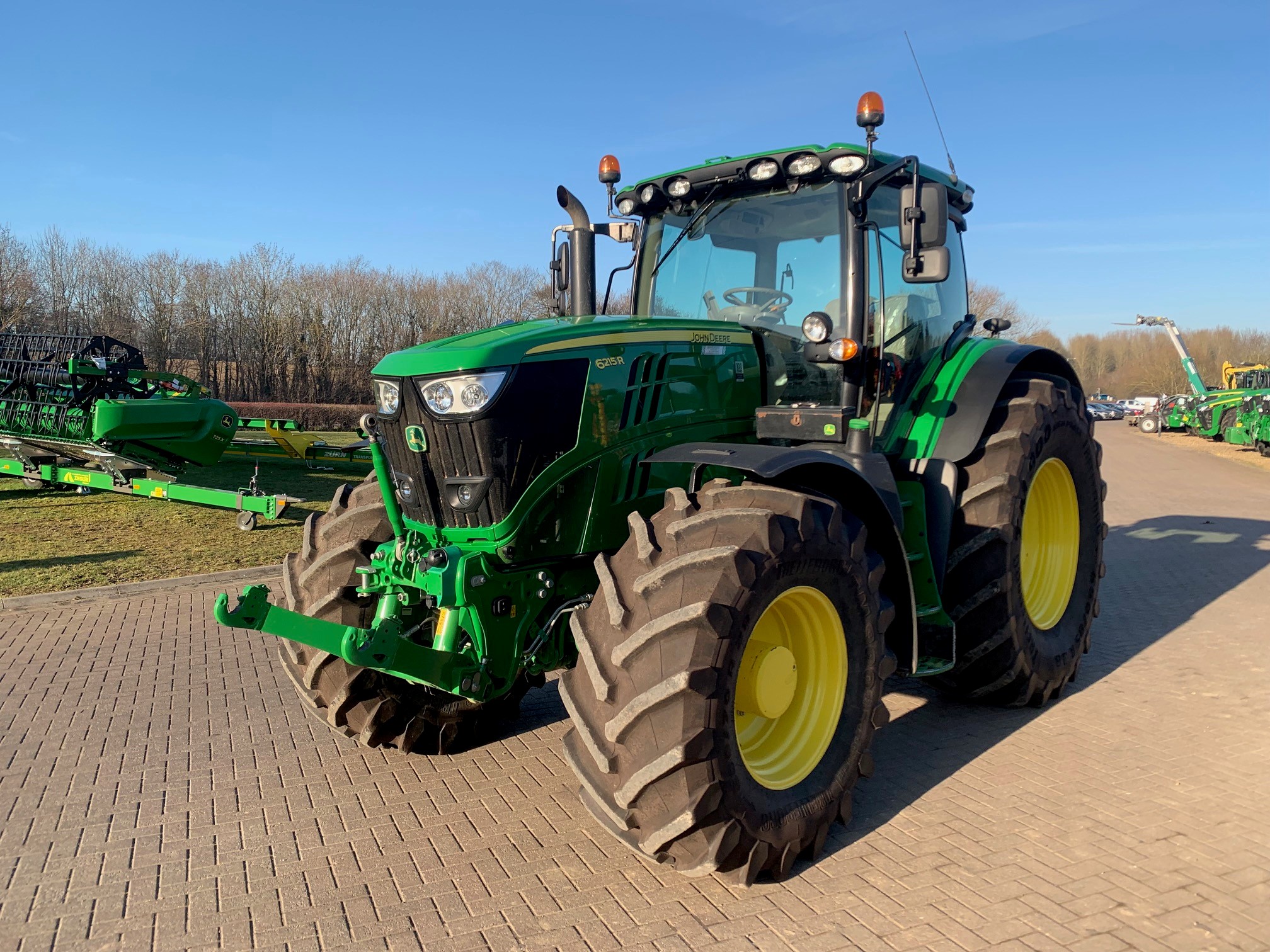

John Deere 6215R
John Deere 6215R — 6R Series · 215 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
215 hp
Max power
153.4 kW
Weight
8895 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $183,229 in 2017Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank335.0 LReference
Exhaust fluid (DEF)20.1 LReference
Engine (gross)160.3 kWReference
Engine (max)187.9 kWReference
Drawbar (tested)129.7 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier 4Reference
Emission controldiesel particulate filter with selective catalytic reduction (SCR) (DPF)Reference
Rated Power (gross)160.3 kWReference
Maximum Power (gross)187.9 kWReference
Rated RPM2100Reference
Idle RPM850-2250Reference
Operating RPM1550-2100Reference
Torque1003.4 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Max power153.4 kWReference
Power at rated engine speed135.0 kWReference
Max power129.7 kWReference
Transmission
16-speed partial power shiftReference
20-speed partial power shiftReference
24-speed eight-speed power shiftReference
infinitely variable transmissionReference
TransmissionPowerQuad PlusReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four power-shift gears (1-4) in four synchronized ranges (A-D). Push-button clutch for range shifts.Reference
TransmissionAutoQuad Plus EcoReference
Gears20 forward and reverseReference
Four power-shift gears (1-4) in Five synchronized ranges (A-E). Push-button clutch and automatic shift mode.Reference
TransmissionDirect DriveReference
Typeeight-speed power shiftReference
Gears24 forward and reverseReference
Eight power-shift gears in three electronically-shifted ranges. Automatic and manual shifting modes available.Reference
TransmissionAutoPowr IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)132.0 kWReference
PTO (tested)153.4 kWReference
Typeclosed center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Rear valves3 to 6Reference
Pump flow155.2 lpmReference
SCV flow99.9 lpmReference
Rear TypeIII/IIINReference
Rear lift (at 24"/610mm)5438 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/1000 (1.75)Reference
Rear PTO Type540/540E/1000 (1.375)Reference
Rear PTO Type540/540E/1000 (1.75)Reference
Rear PTO Type540E/1000/1000E (1.375)Reference
Rear PTO Type540E/1000/1000E (1.75)Reference
Power at rated PTO speed151.8 kWReference
Dimensions
Wheelbase279 cmReference
Weight8895 kgReference
Front tire420/90R30Reference
Rear tire480/80R46Reference
Standard tires (ag)Front: 420/90R30. Rear: 480/80R46Reference
Length504 cmReference
Height (cab)320 cmReference
Shipping weight8895 kgReference
Rack-and-pinion rear axle100 by 2550 mmReference
Rack-and-pinion rear axle100 by 2806 mmReference
Rack-and-pinion rear axle100 by 3009 mmReference
John Deere 6215R attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging amps240Reference
Charging volts14Reference
Battery volts12Reference
Attachment overview
John Deere H360 loaderReference
John Deere H380 loaderReference
Test results
Diesel AutoQuad Plus 4WDJune 23 - 30, 2015Link: OCED Tractor Test 2106 fileReference
PTO performanceReference
Fuel use42.8 l/hourReference
Fuel use39.7 l/hourReference
Drawbar performanceReference
Max pull9025 kgReference
Speeds
With SRI 925 rear tires. Rear speeds are 4% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
