Tractor · 2016Unverified

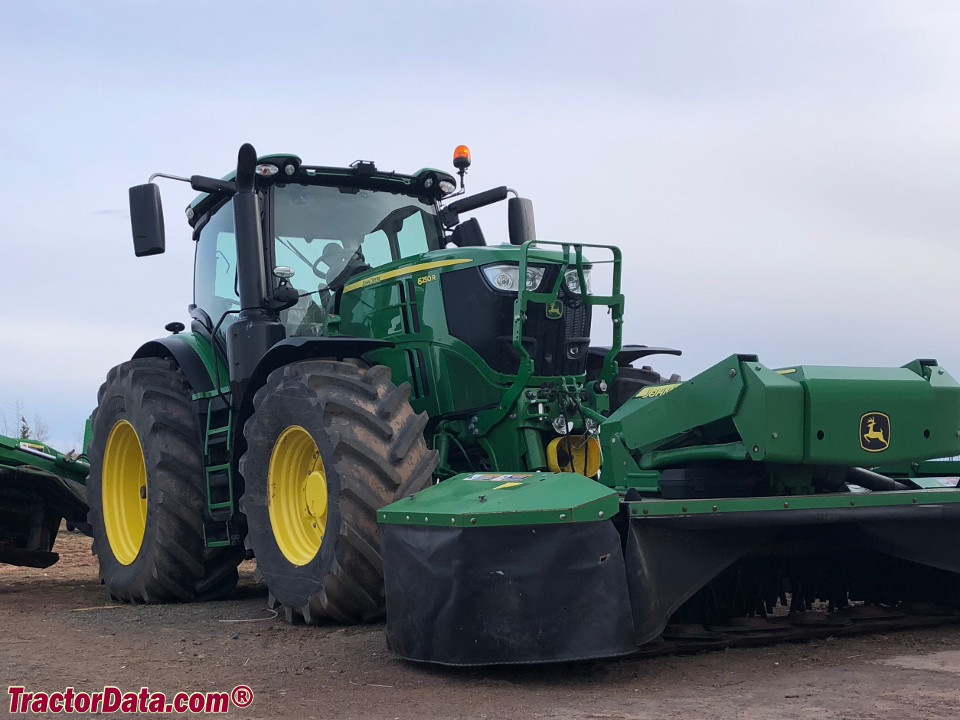

John Deere 6250R
John Deere 6250R — 6R Series · 250 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
250 hp
Weight
9300 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
ComfortView Cab with active hydraulic suspension and air-conditioning. AutoTrac readyReference
Engine
John Deere 6.8L 6-cylReference
Fuel tank470.1 LReference
Engine (gross)186.4 kWReference
Engine (net)178.2 kWReference
Engine (max)216.3 kWReference
John Deere PowerTech PSSReference
turbochargedReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke105 x 127 mmReference
EmissionsStage IVReference
Emission controldiesel particulate filter, diesel oxidation catalyst, and selective catalytic reductionReference
Rated Power (net)178.2 kWReference
Rated Power (gross)186.4 kWReference
Maximum Power (net)216.3 kWReference
Maximum Power (gross)216.3 kWReference
Fuel systemelectronic high-pressure common railReference
Cooling systemelectric-drive fanReference
Rated RPM2100Reference
Operating RPM1600-2100Reference
Torque1167.5 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity29.0 LReference
Transmission
infinitely-variable transmission (IVT)Reference
TransmissionAutoPowrReference
Typeinfinitely-variable transmission (IVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeclosed-center pressure flow compensatedReference
Valvesup to 6Reference
Pump flow160.1 lpmReference
Rear TypeIIINReference
Rear lift (at 24"/610mm)6999 kgReference
Front HitchIIINReference
Front lift4399 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1969Reference
Dimensions
Wheelbase290 cmReference
Weight9300 kgReference
Length518 cmReference
Width255 cmReference
Height (cab)325 cmReference
Shipping weight9300 kgReference
Max weight15000 kgReference
Front axleTriple Link SuspensionReference
John Deere 6250R attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
