Tractor · 1958Unverified

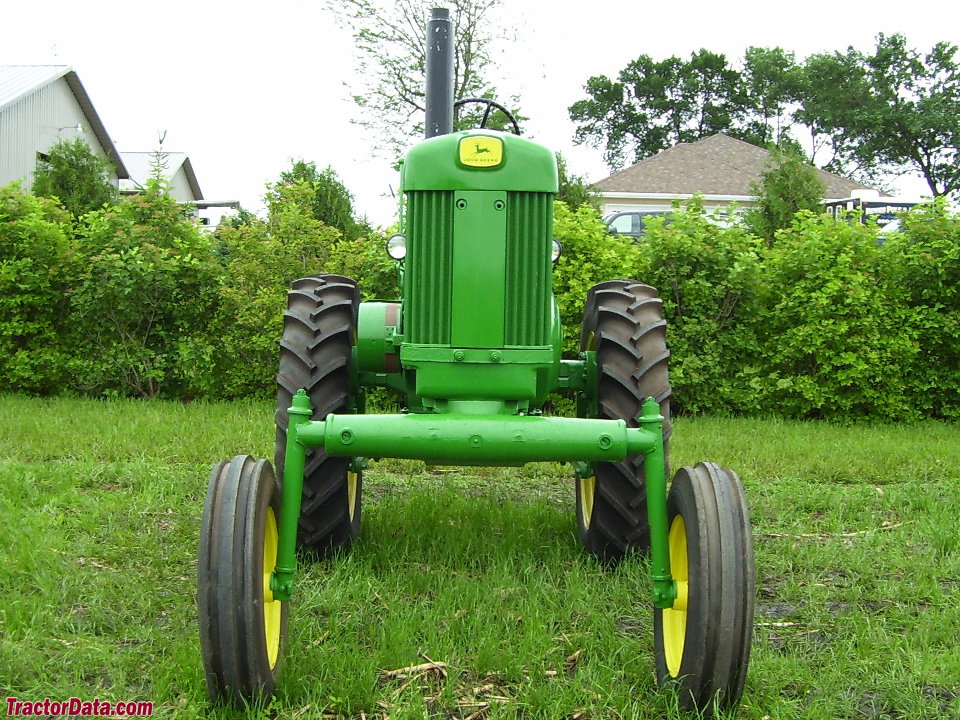

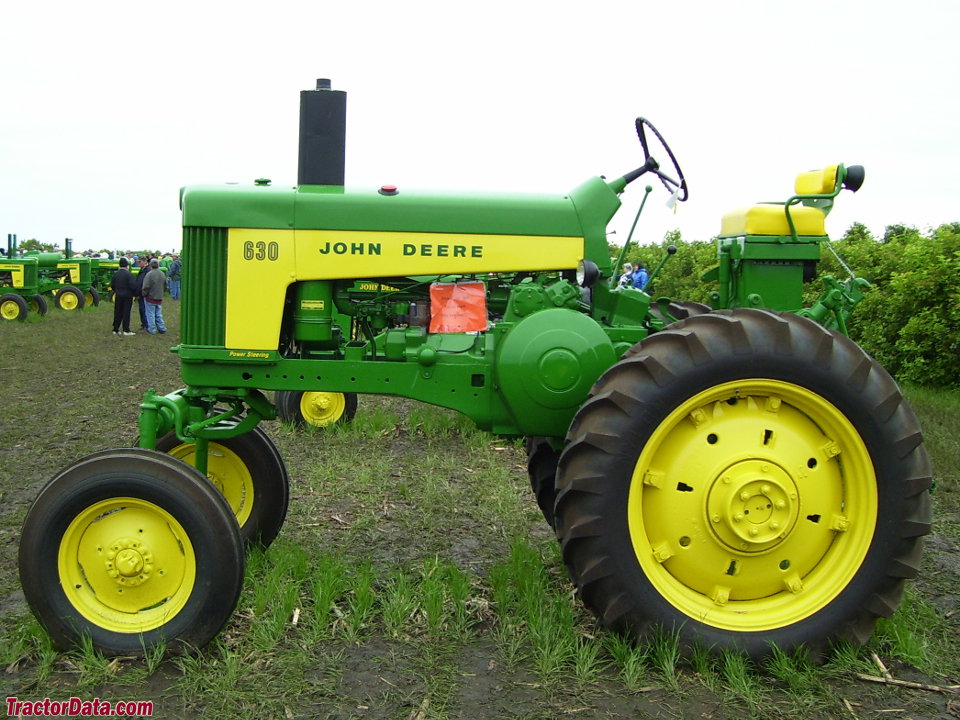

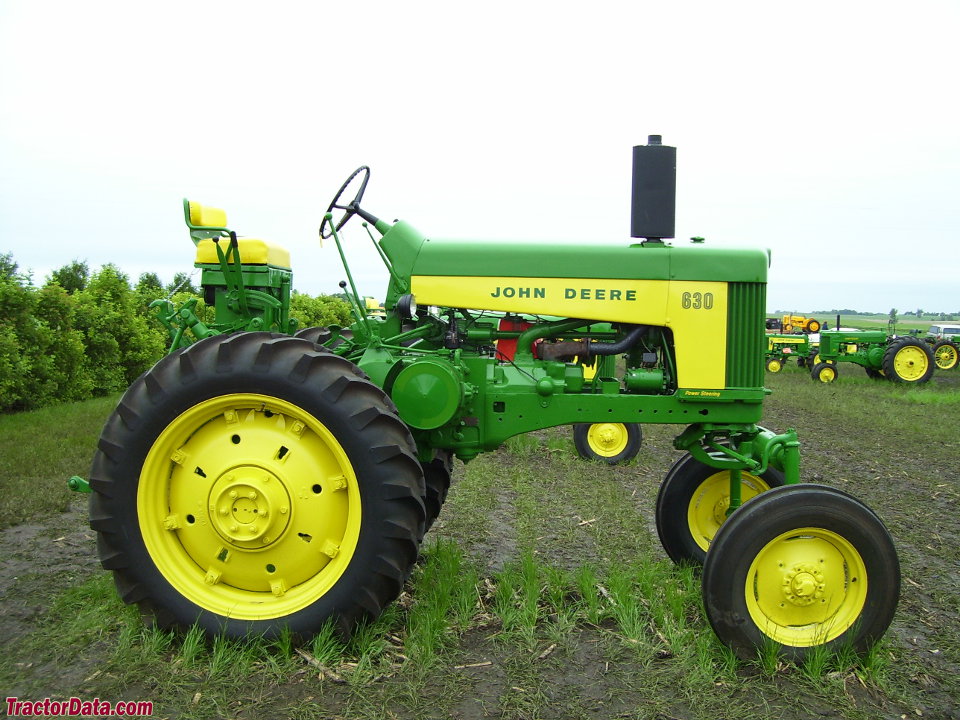

John Deere 630 Hi-Crop
John Deere 630 Hi-Crop — Two-Cylinder 30 Series · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
2657 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Built in Waterloo, Iowa, USAReference
Total built16 (total)Reference
Total built10 (gas)Reference
Total built3 (LP-gas)Reference
Total built3 (all-fuel)Reference
Original price was $3,815 in 1958Reference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Differential mechanical drum brakesReference
Open operator station.Reference
Variants
630row-cropReference
630SstandardReference
630HChigh-cropReference
Engine
John Deere 5.0L 2-cyl gasolineReference
John Deere 5.0L 2-cyl all-fuelReference
John Deere 5.0L 2-cyl LP gasReference
Fuel tank77.6 LReference
Fuel tank84.2 LReference
Fuel tank124.9 LReference
Aux. fuel3.8 LReference
Drawbar (claimed)32.8 kWReference
Plows4Reference
John DeereReference
gasolineReference
2-cylinderReference
liquid-cooledReference
Displacement5.0 LReference
Bore/Stroke140 x 162 mmReference
Rated RPM1125Reference
Firing order1-2Reference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity24.6 LReference
all-fuelReference
LP gasReference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)35.8 kWReference
Pressure82.7 barReference
Valves1 or 2Reference
Pump flow33.7 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase228 cmReference
Weight2657 kgReference
Front tire7.50-20Reference
Rear tire12.4-38Reference
Ag front7.50-20Reference
Ag rear12.4-38Reference
Ag rear13.6-38Reference
Ag rear12-38Reference
Ag rear15.5-38Reference
Length373 cmReference
Width187 cmReference
Height245 cmReference
Shipping weight2657 kgReference
Front tread152 to 213 cmReference
Rear tread152 to 228 cmReference
630 Hi-Crop Serial Number Location
Serial number plate on the right side of the 630 Hi-Crop tractor frame, below the belt pulley.Reference
630 Hi-Crop Serial Numbers
19586300000Reference
19596302749Reference
19606314381Reference
Final6305208Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Batteries2Reference
Battery volts6Reference
Speeds
With 13.6-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
