Tractor · 1958Unverified

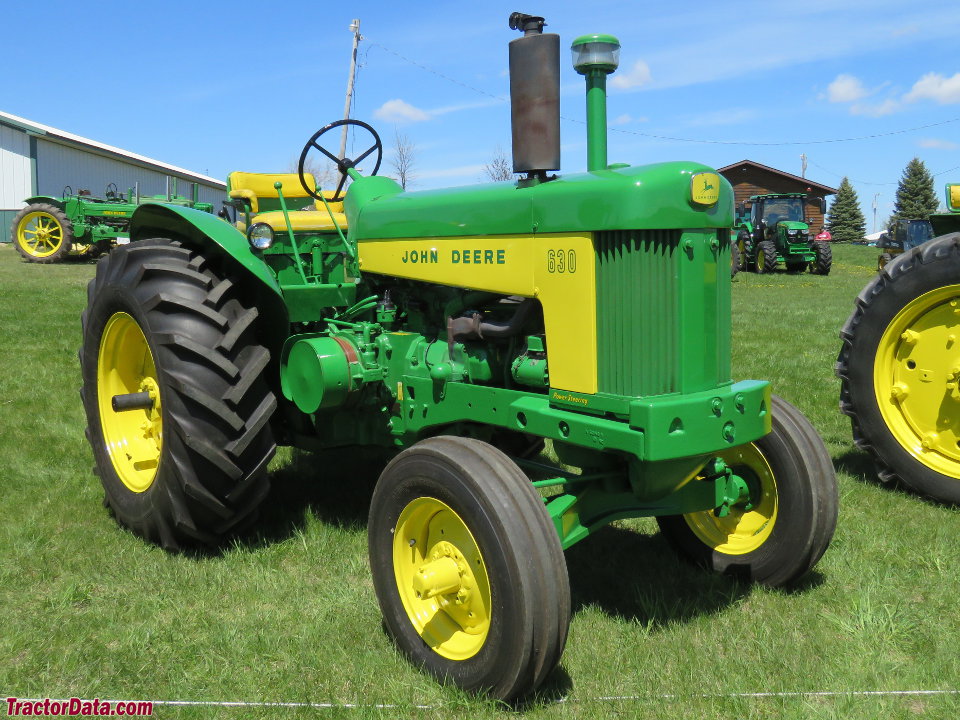

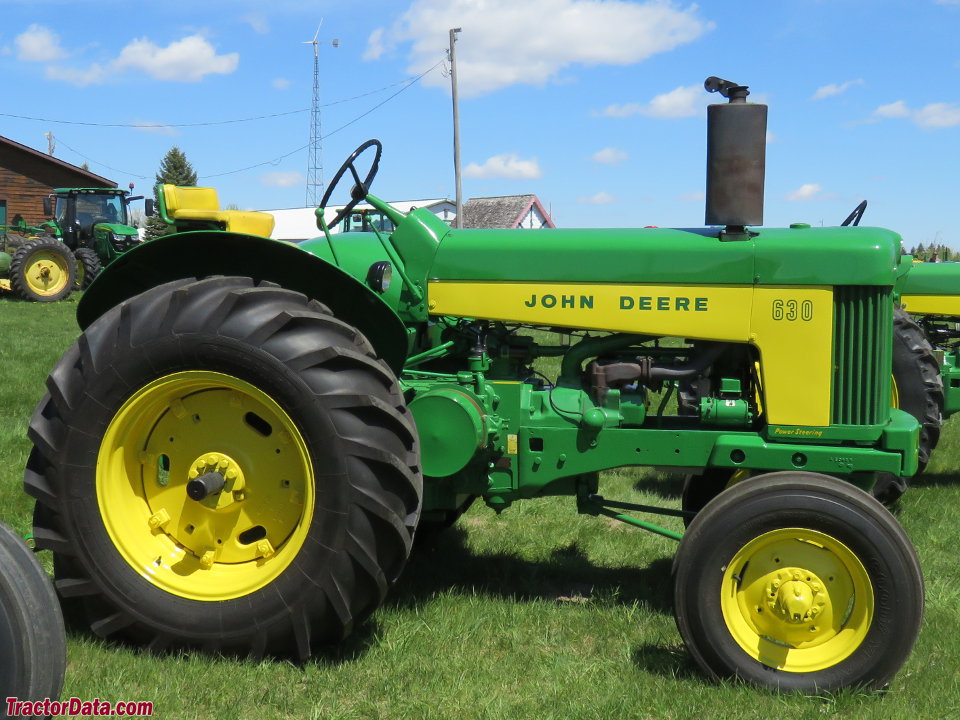

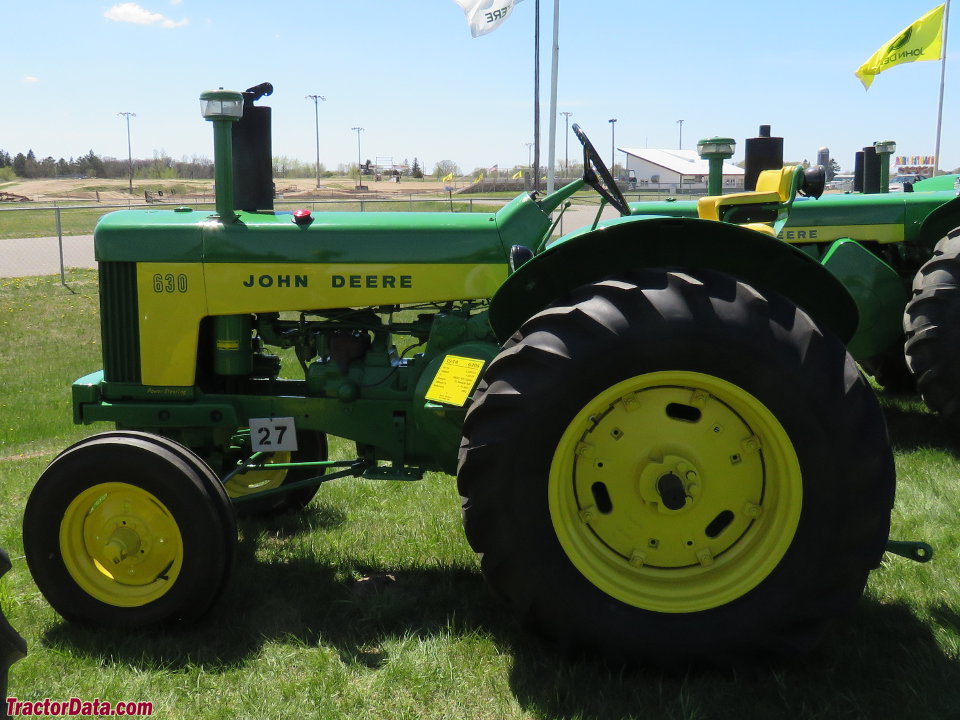

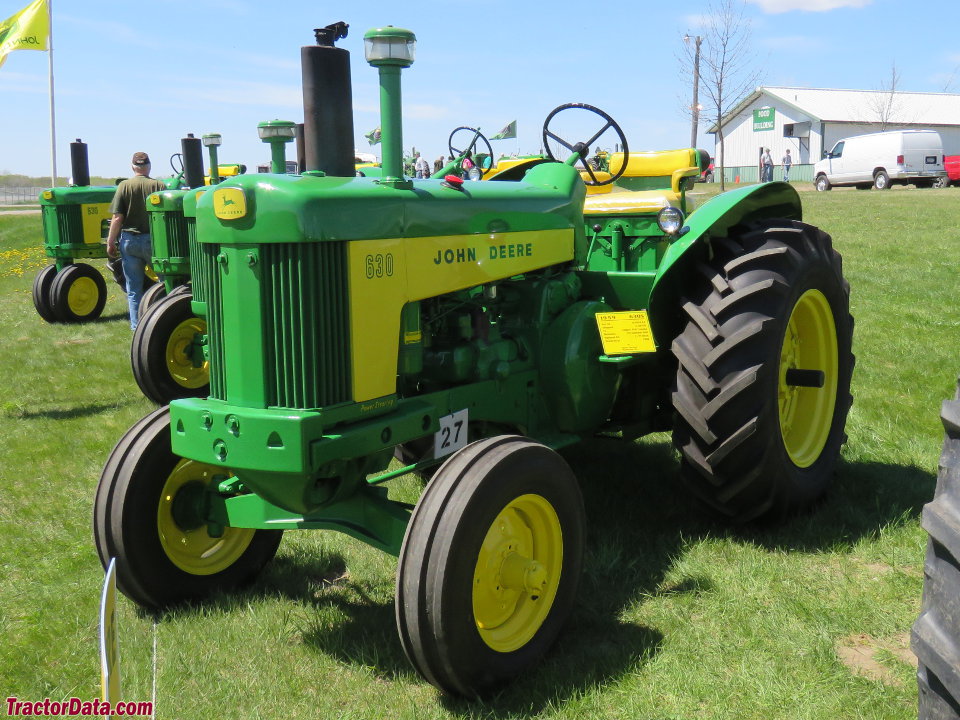

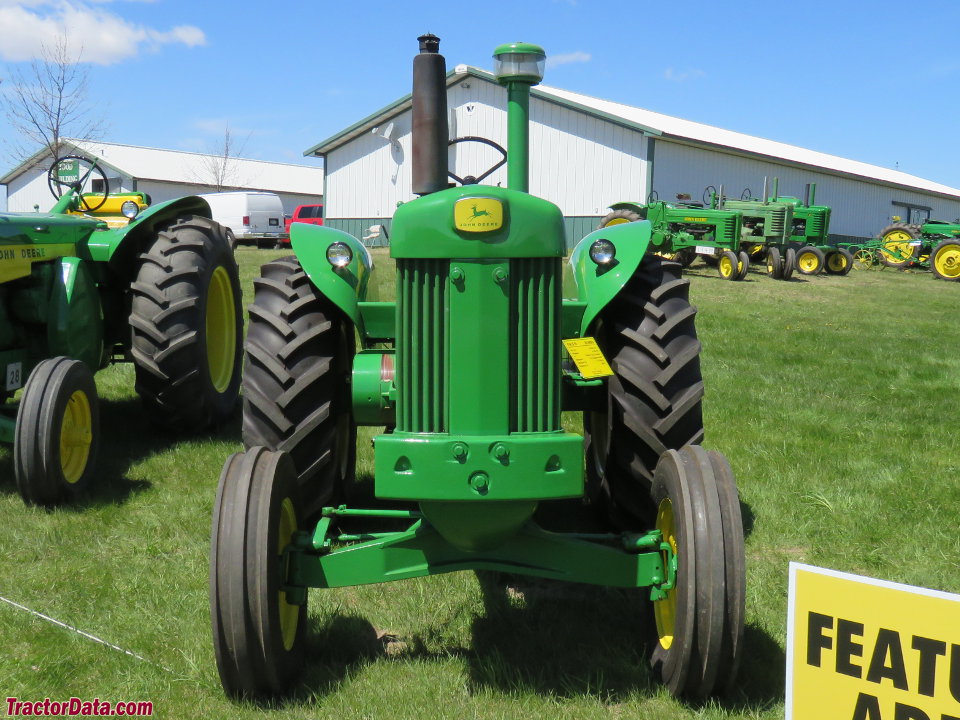

John Deere 630 Standard
John Deere 630 Standard — Two-Cylinder 30 Series · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
2939 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Standard-tread tractorReference
Built in Waterloo, Iowa, USAReference
Total built734 (total)Reference
Total built704 (gas)Reference
Total built16 (LP-Gas)Reference
Total built14 (all-fuel)Reference
Original price was $3,170 in 1958Reference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Differential mechanical drum brakesReference
Open operator station.Reference
Variants
630row-cropReference
630SstandardReference
630HChigh-cropReference
Engine
John Deere 5.0L 2-cyl gasolineReference
John Deere 5.0L 2-cyl all-fuelReference
John Deere 5.0L 2-cyl LP gasReference
Fuel tank77.6 LReference
Fuel tank84.2 LReference
Fuel tank124.9 LReference
Aux. fuel3.8 LReference
Drawbar (claimed)32.8 kWReference
Plows4Reference
John DeereReference
gasolineReference
2-cylinderReference
liquid-cooledReference
Displacement5.0 LReference
Bore/Stroke140 x 162 mmReference
Rated RPM1125Reference
Firing order1-2Reference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity24.6 LReference
all-fuelReference
LP gasReference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)35.8 kWReference
Pressure82.7 barReference
Valves1 or 2Reference
Pump flow33.7 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase204 cmReference
Weight2939 kgReference
Front tire6.00-16Reference
Rear tire13-30Reference
Ag front6.00-16Reference
Ag rear13-30Reference
Ag front6.50-18Reference
Ag front7.50-18Reference
Ag rear14-30Reference
Length321 cmReference
Width220 cmReference
Height207 cmReference
Shipping weight2939 kgReference
Front tread140 cmReference
Front tread132 to 172 cmReference
Rear tread157 to 203 cmReference
630 Standard Serial Number Location
Serial number plate on the right side of the 630 Standard tractor frame, below the belt pulley.Reference
630 Standard Serial Numbers
19586300000Reference
19596302749Reference
19606314381Reference
Final6317253Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter32 cmReference
Width18 cmReference
RPM1125Reference
Speed1150.62 meters/minReference
Electrical
GroundpositiveReference
Batteries2Reference
Battery volts6Reference
Speeds
With 14-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
