Tractor · 1998Unverified

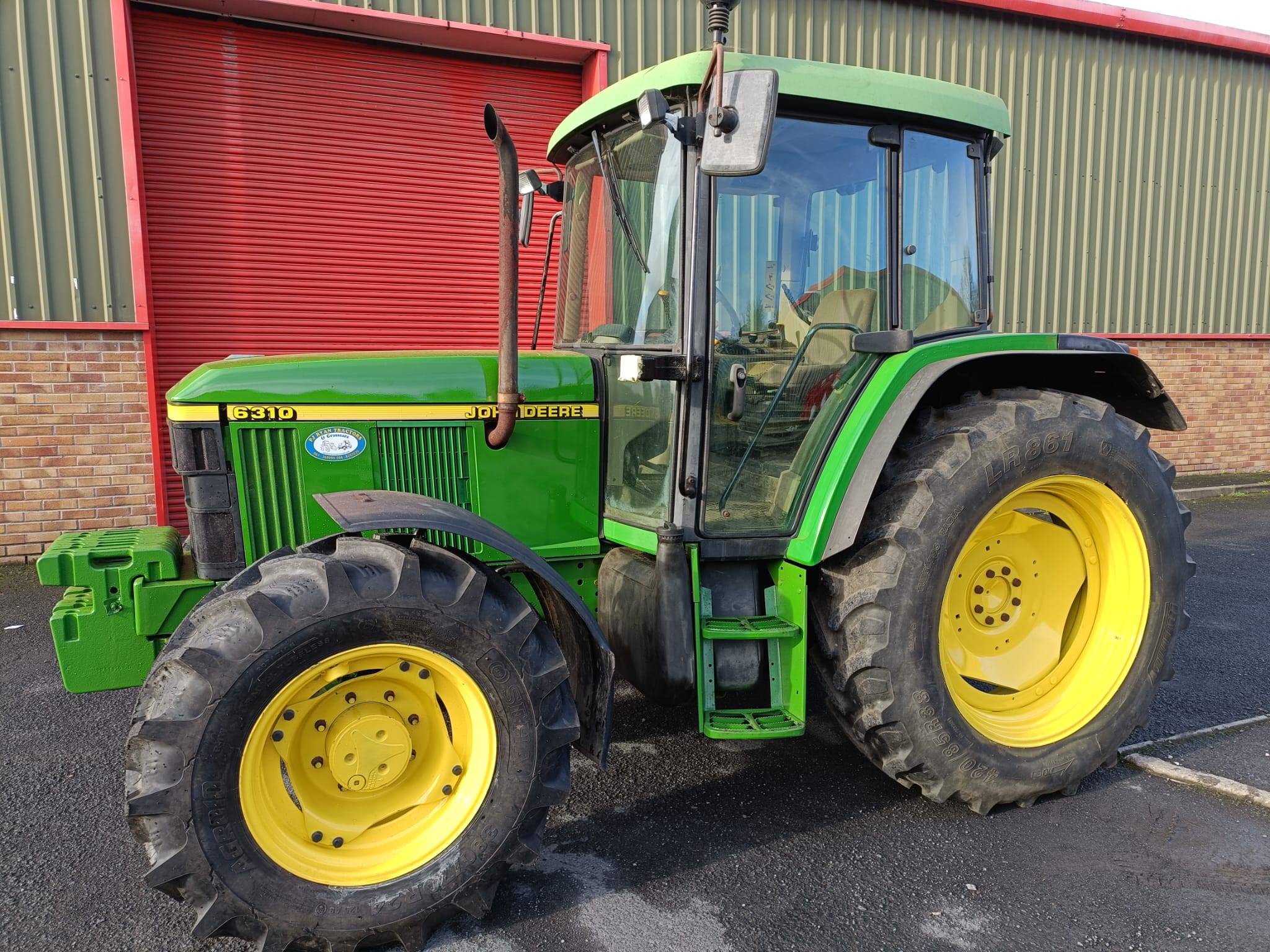

John Deere 6310SE
John Deere 6310SE — Utility tractor · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
4047 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with heat. Optional air-conditioning.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (net)74.6 kWReference
John DeereReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (net)74.6 kWReference
Cooling systemviscous-drive fanReference
Air cleanerdryReference
Rated RPM2300Reference
Torque402.7 NmReference
Torque RPM1495Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.0 LReference
Coolant capacity13.5 LReference
Transmission
12-speed synchronizedReference
16-speed power shuttleReference
16-speed four-speed power shiftReference
TransmissionSynchroPlusReference
TypesynchronizedReference
Gears12 forward and 4 reverseReference
Clutch225mm wet discsReference
Oil change250 hReference
Three synchronized gears, plus reverse, in four synchronized ranges.Reference
TransmissionPower ReverserReference
Typepower shuttleReference
Gears16 forward and reverseReference
Four synchronized gears in four synchronized ranges with power shuttle.Reference
TransmissionPowerQuadReference
Typefour-speed power shiftReference
Four power shift gears in four synchronized ranges with power shuttle.Reference
Capacities
Fuel165.0 LReference
Fuel115.8 LReference
PTO & Hydraulics
Hydraulic system54.9 LReference
Typeopen center load-sensingReference
Capacity54.9 LReference
Pressure200.0 barReference
Valves4Reference
Pump flow54.1 lpmReference
Rear TypeIIReference
Controlelectronic lower-link draft sensingReference
Rear lift4680 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2124Reference
Engine RPM1000@2208Reference
Engine RPM540E@1684Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@2185Reference
Dimensions
Wheelbase240 cmReference
Weight4047 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Standard tires (ag)Front: 13.6R24. Rear: 16.9R34Reference
Length414 cmReference
Width217 cmReference
Height (cab)264 cmReference
Height (cab)253 cmReference
Shipping weight4047 kgReference
Max weight8000 kgReference
6310SE Serial Numbers
Location:Serial number plate on the right side of the tractor's frame.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery volts12Reference
Battery AH110Reference
Speeds
With 14.9-38 rear tires.Reference
With 14.9-38 rear tires and 30KPH transmission option. Rear speeds are 20% faster than forward.Reference
With 14.9-38 rear tires and 40KPH transmission option. Rear speeds are 20% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
