Tractor · 2002Unverified

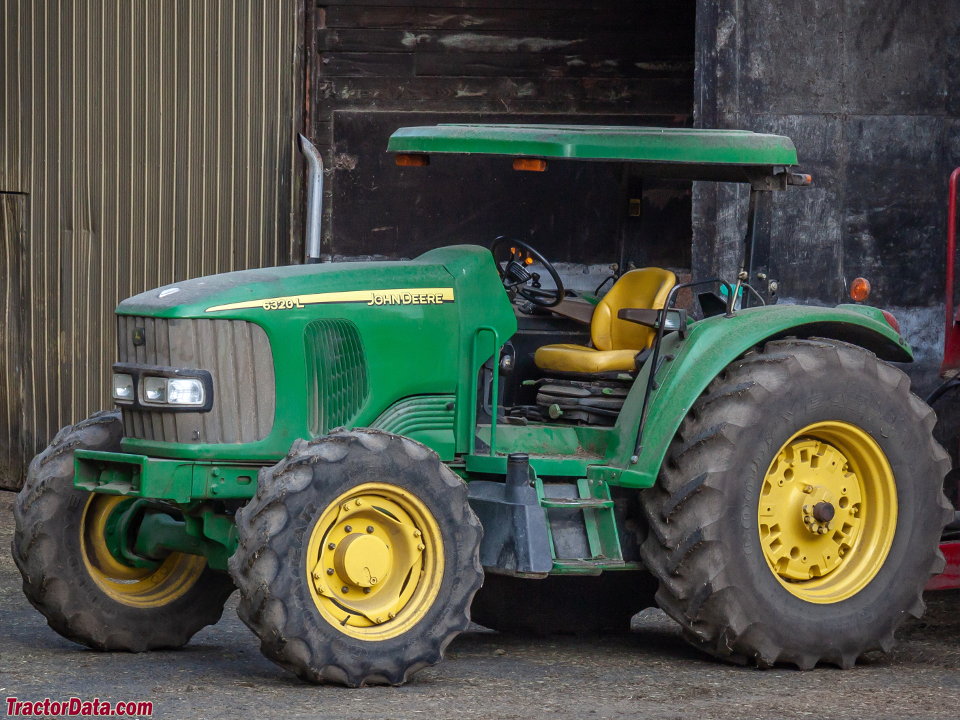

John Deere 6320L

Name: John Deere 6320L
Brand: John Deere

John Deere 6320L — Orchard/Vineyard tractor · 80 hp. Reference specifications; pending source verification.

The John Deere 6320L is a tractor boasting a rated power of 80 hp, a mid-range figure for its class. Manufactured from 2002 to 2006, it is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine paired with mechanical front-wheel drive and a hydrostatic transmission. The tractor has a listed operating weight of 3630 kg, making it suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

80 hp

Weight

3630 kg

Catalogue coverage

Variants represented

Richest spec table

93 rows

Recorded power

80 hp

Recorded weight

3630 kg

Transmissions

12-speed fully synchronized

Production years

2002-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Orchard/Vineyard tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Original price$40,400 (2007)Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

OPS. Cab optional.Reference

Variants

6320utility chassisReference

6320Llow-profile chassisReference

Engine

John Deere 4.5L 4-cyl dieselReference

Engine74.6 kWReference

John Deere PowerTech 4045HL073Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsTier IReference

Power73.8 kWReference

Air cleanerdryReference

Rated RPM2300Reference

Idle RPM875-2510Reference

Operating RPM1000-2300Reference

Torque330.9 NmReference

Torque RPM1500Reference

Firing order1-3-4-2Reference

Starter volts12Reference

Starter power3.0 kWReference

Coolant capacity13.6 LReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity15.9 LReference

Oil change500 hReference

John Deere PowerTech 4045HL270Reference

EmissionsTier IIReference

Power74.6 kWReference

Idle RPM845-2465Reference

Torque413.6 NmReference

Transmission

12-speed fully synchronizedReference

16-speed power shuttleReference

16-speed partial power shiftReference

24-speed partial power shiftReference

TransmissionJohn Deere SyncroPlusReference

Typefully synchronizedReference

Gears12 forward and 4 reverseReference

Clutchwet discReference

Oil capacity52.1 LReference

Oil typeJD Hy-GardReference

Three gears (1-3) plus reverse (R) in four ranges (A-D). Directional, gear, and range changes are synchronized and may be shifting while moving by using the clutch. Optional creeper adds an additional nine forward and three reverse speeds (ranges A-C) for a total of 21-forward and 7-reverse.Reference

TransmissionJohn Deere SyncroPlus Power ReverserReference

Typepower shuttleReference

Gears16 forward and reverseReference

Four gears (1-4) in four ranges (A-D) with left-hand reverser. Gear and range shifts are synchronized. Power shuttle shifting between forward and reverse. Only available on open-station (ROPS) equipped tractors.Reference

TransmissionJohn Deere PowrQuadReference

Typepartial power shiftReference

Oil capacity49.0 LReference

Four gears (1-4) in four ranges (A-D) with reverser lever. Clutchless power shift between gears (1-4) and direction changes (power shuttle). Range shifts (A-D) are synchronized, and may be shifted while the tractor is moving by using the clutch. Optional creeper adds an additional 12 speeds for 28 forward and reverse (ranges A-C). The PowrQuad uses a gear-shift lever while the PowrQuad Plus (cab tractors only) offers push-button gear shifting.Reference

TransmissionJohn Deere PowrQuad PlusReference

Gears24 forward and reverseReference

Oil capacity50.0 LReference

Four gears (1-4) in six ranges (A-F) with reverser lever. Push-button power shifting between gears (1-4) and power shuttle directional shifting using the reverser lever. Ranges (A-F) may be shifted on the move by using the clutch.Reference

PTO & Hydraulics

PTO (claimed)59.7 kWReference

Hydraulic system51.9 LReference

Hydraulic system48.8 LReference

Hydraulic system50.0 LReference

Typepressure and flow compensatedReference

Capacity51.9 LReference

Capacity48.8 LReference

Capacity50.0 LReference

Pressure200.0 barReference

Pump flow94.6 lpmReference

Rear TypeIIReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type540/1000 (optional)Reference

Capacities

Fuel165.0 LReference

Fuel116.2 LReference

Dimensions

Weight3630 kgReference

Front tire27/9.5-15Reference

Rear tire16.9-24 (2WD)Reference

Standard tires (ag)Front: 27/9.5-15. Rear: 16.9-24 (2WD)Reference

Standard tires (ag)Front: 10.5/80-18. Rear: 16.9-24 (4WD)Reference

Shipping weight3630 kgReference

Front tread148 to 204 cmReference

Front tread151 to 201 cmReference

Front tread139 to 173 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging volts14Reference

Battery volts12Reference

Speeds

With 16.9x24 R1 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
