Tractor · 2007Unverified

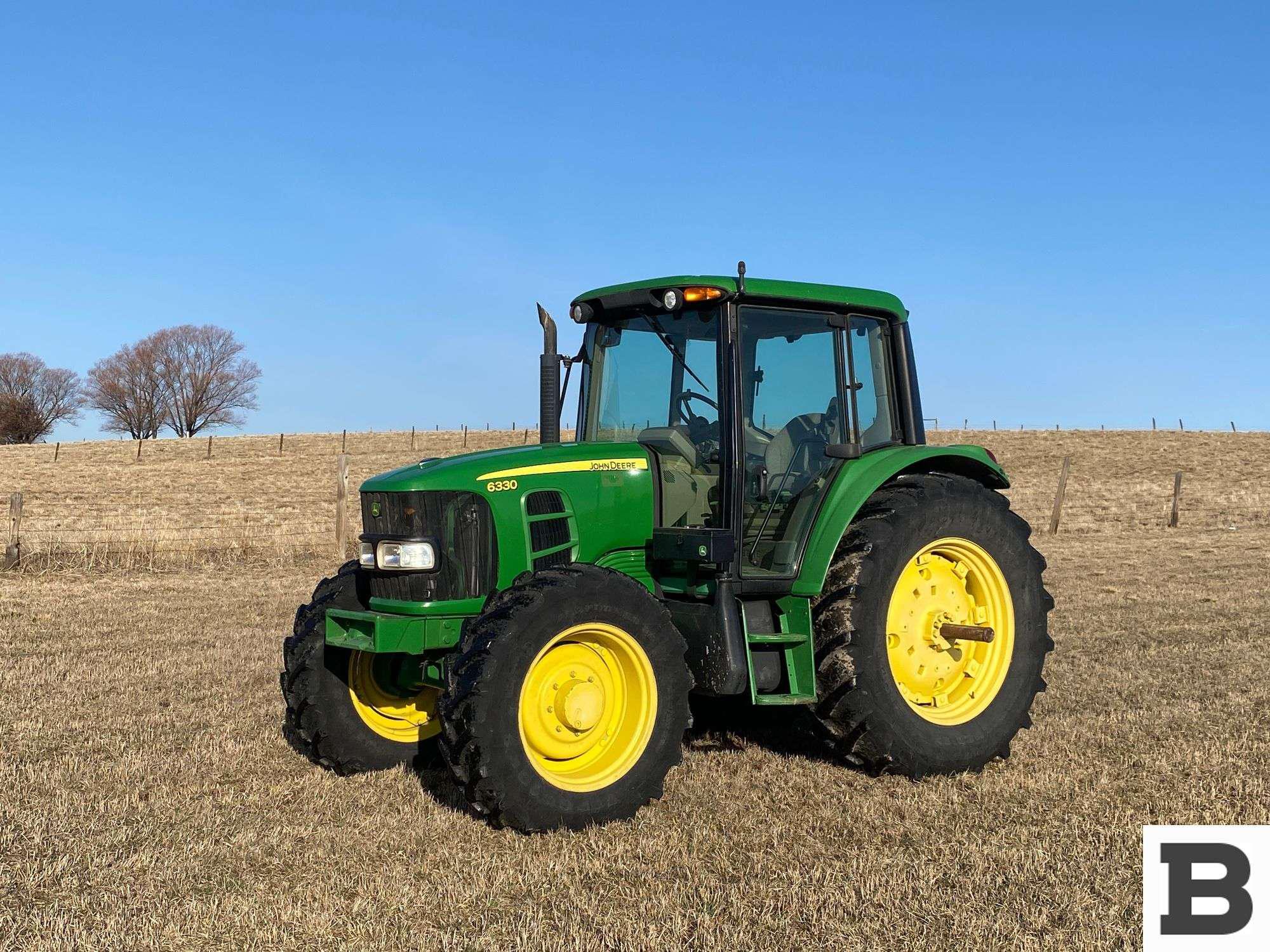

John Deere 6330

John Deere 6330 · 105 hp. Reference specifications; pending source verification.

The John Deere 6330 is a tractor with a 105 hp rating, positioning it at the middle of its class in terms of power. Manufactured from 2007 to 2012, the 6330 features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with a mechanical front-wheel drive system and a hydrostatic transmission. Its listed weight is 4536 kg, suitable for applications involving approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
105 hp
Max power
105 hp
Weight
4536 kg

Catalogue coverage

Variants represented
2
Richest spec table
109 rows
Recorded power
105 hp
Recorded weight
4536 kg
Transmissions
12-speed fully synchronized
Production years
2007-2012
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Original price$54,606 (2010)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional.Reference

Variants

6330 Premiumpremium cab and upgraded featuresReference

Engine

John Deere 4.5L 4-cyl dieselReference
Engine (gross)78.3 kWReference
John Deere 4045HL281 PowerTech EReference
turbocharged dieselReference
4-cylinder 8-valveReference
liquid-cooled vertical inlineReference
Original engine, used in the basic 6330 from 2007 through the 2009 model year.Reference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier IIIReference
Rated Power (gross)78.3 kWReference
Air cleanerdual dry elementReference
Compression19:1Reference
Rated RPM2300Reference
Idle RPM850-2460Reference
Operating RPM1500-2300Reference
Torque424.4 NmReference
Torque RPM1500Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity15.9 LReference
Coolant capacity26.5 LReference
Coolant capacity29.1 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
John Deere 4045HL288 PowerTech EReference
Replacement engine, first used in the 2010 model year.Reference
Torque RPM1600Reference
Fuel TypedieselReference
No of Cylinders4 cylinderReference
Emissions complianceTier IIIReference
Engine torque at rated speed142 kgReference
Bore and stroke4.19x5.00 inchesReference
Compression ratio19:1Reference
Cooling systemliquid-cooledReference

Transmission

12-speed fully synchronizedReference
16-speed synchronized with power shuttleReference
16-speed partial power shiftReference
24-speed partial power shiftReference
TransmissionJohn Deere SyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Oil capacity51.9 LReference
TransmissionJohn Deere PowrReverserReference
Typesynchronized with power shuttleReference
Gears16 forward and reverseReference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Clutchwet discReference
Oil capacity48.8 LReference
Oil capacity50.0 LReference
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Gear changes (1-4) and direction changes can be done while moving without the clutch. Clutch is required to shift range (A-D). Optional PowrQuad Plus adds push-button gear shifting.Reference
Gears24 forward and reverseReference
Oil capacity50.0 LReference
Four gears (1-4) in six ranges (A-E) with left-hand reverser lever. Gear changes (1-4) and direction changes can be done while moving without the clutch. Clutch is required to shift range (A-D). Optional PowrQuad Plus adds push-button gear shifting.Reference
Transmission TypeSync ShuttleReference
Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)60.4 kWReference
PTO (claimed)63.4 kWReference
Hydraulic system51.9 LReference
Typeopen-center load sensingReference
Typeclosed-center pressure-flow compensated (optional)Reference
Capacity51.9 LReference
Pressure200.0 barReference
Valves1 to 3Reference
Total flow79.9 lpmReference
Total flow109.8 lpmReference
Rear TypeII/IIIReference
Rear lift (at 24"/610mm)2018 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference

Capacities

Fuel165.0 LReference
Fuel181.7 LReference
Fuel tank181.7 LReference

Dimensions

Wheelbase240 cmReference
Weight4536 kgReference
Ground clearance46 cmReference

6330 Serial Number Location

On the main tractor frame, right side, above the front axle.Reference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps115Reference
Battery volts12Reference

Speeds

With 18.4R38 rear tires.Reference

General

Make & ModelJohn DeereReference
SCV controlJoystickReference
Country of manufacturerGermanyReference

Power

Max Power105 hpReference

PTO

PTO Power85 hpReference
Rear PTO PowerAvailableReference
Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference
Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)29 gpmReference
Maximum operating pressure2,900 psiReference
Remote Valves1 to 3 ValvesReference
Rear Hitch category (SAE designation)Category II/IIIReference

Dimensions & weight

Overall weight4,535.9 kgReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
