Tractor · 1992Unverified

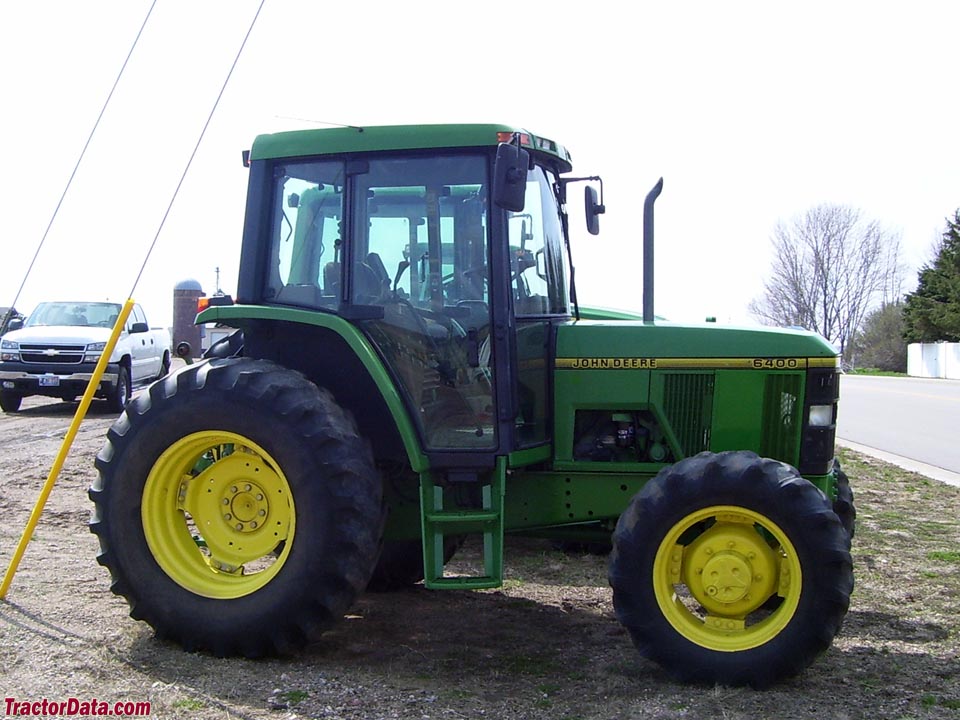

John Deere 6400
John Deere 6400 — Utility tractor · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Max power
67.2 kW
Weight
7607 to 9985 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Original price was $32,500 in 1998Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. ComfortGard Cab optional.Reference
Variants
6400utility tractorReference
6400Llow-profileReference
6400SPMexican marketReference
Engine
John Deere 4.5L 4-cyl dieselReference
ROPS Fuel tank109.8 LReference
Cab Fuel tank165.0 LReference
Drawbar (tested)54.6 kWReference
John Deere CD4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Fuel use17.9 l/hourReference
Rated RPM2300Reference
Idle RPM1840-2300Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity12.1 LReference
Coolant capacity13.7 LReference
Coolant capacity17.5 LReference
Max power67.2 kWReference
Power at rated engine speed64.7 kWReference
Max power53.0 kWReference
Max power65.4 kWReference
Power at rated engine speed63.5 kWReference
Max power54.6 kWReference
Transmission
12-speed fully synchronizedReference
16-speed partial power shiftReference
21-speed partially synchronizedReference
28-speed partial power shiftReference
TransmissionJohn Deere SyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutchtriple 9-inch wet disc PermaClutch 2Reference
Standard transmission. Three gears, plus reverse, in four ranges.Reference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle. Shuttle may be either right or left hand.Reference
TransmissionJohn Deere SyncroPlus CreeperReference
Typepartially synchronizedReference
Gears21 forward and 7 reverseReference
Adds a creeper range to the SyncroPlus, engaged by a separate lever.Reference
TransmissionJohn Deere PowrQuad CreeperReference
Gears28 forward and reverseReference
Creeper range provides an additional 12 speeds to the PowrQuad transmission.Reference
PTO & Hydraulics
PTO (claimed)63.4 kWReference
PTO (tested)67.2 kWReference
Typeclosed-center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Valves1 to 5Reference
Total flow70.8 lpmReference
Total flow94.6 lpmReference
Rear TypeIIReference
Controllower link draft sensingReference
Rear lift (at 24"/610mm)2683 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed66.0 kWReference
Power at rated PTO speed64.2 kWReference
Dimensions
Wheelbase240 cmReference
Weight7607 to 9985 poundsReference
Front tire7.50-18Reference
Rear tire18.4-34 (2WD)Reference
Standard tires (ag)Front: 7.50-18. Rear: 18.4-34 (2WD)Reference
Standard tires (ag)Front: 13.6-24. Rear: 18.4-34 (4WD)Reference
Standard tires (ag)Front: 13.6-38. Rear: 13.6-46 (High-Clearance)Reference
Clearance (front axle)47 cmReference
Clearance (front axle)67 cmReference
Clearance (rear axle)75 cmReference
Front tread148 to 248 cmReference
Front tread151 to 201 cmReference
Rear tread155 to 268 cmReference
4529 kgReference
Shipping3450 kgReference
Shipping3680 kgReference
Shipping3740 kgReference
Shipping3970 kgReference
John Deere 6400 attachments
front-end loaderReference
6400 Serial Number Location
Serial number tag on the right side of the Deere 6400 tractor frame, above the front axle.Reference
6400 Serial Numbers
1993100000Reference
1994117697Reference
1995135565Reference
1996153567Reference
1997177240Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
John Deere 620 loaderReference
John Deere 640NSL loaderReference
John Deere 640SL loaderReference
Test results
OECD 1520: diesel 12-speed 4WDReference
OECD 1520: diesel 16-speed 4WDReference
Diesel 12-speed 4WDDecember 1993 - April 1994, Link: OCED Tractor Test 1520 fileReference
PTO performanceReference
Fuel use17.8 l/hourReference
Fuel use18.2 l/hourReference
Drawbar performanceReference
Gear 3B used for power test.Reference
Max pull5395 kgReference
Gear 1B used for pull test.Reference
Diesel 16-speed 4WDDecember 1993 - April 1994, Link: OCED Tractor Test 1520 fileReference
Fuel use18.5 l/hourReference
Gear 1C used for power test.Reference
Max pull5631 kgReference
Gear 4A used for pull test.Reference
Speeds
With 18.4-30 rear tires.Reference
With 18.4-30 rear tires. Reverse speeds are 20% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
