Tractor · 1996Unverified

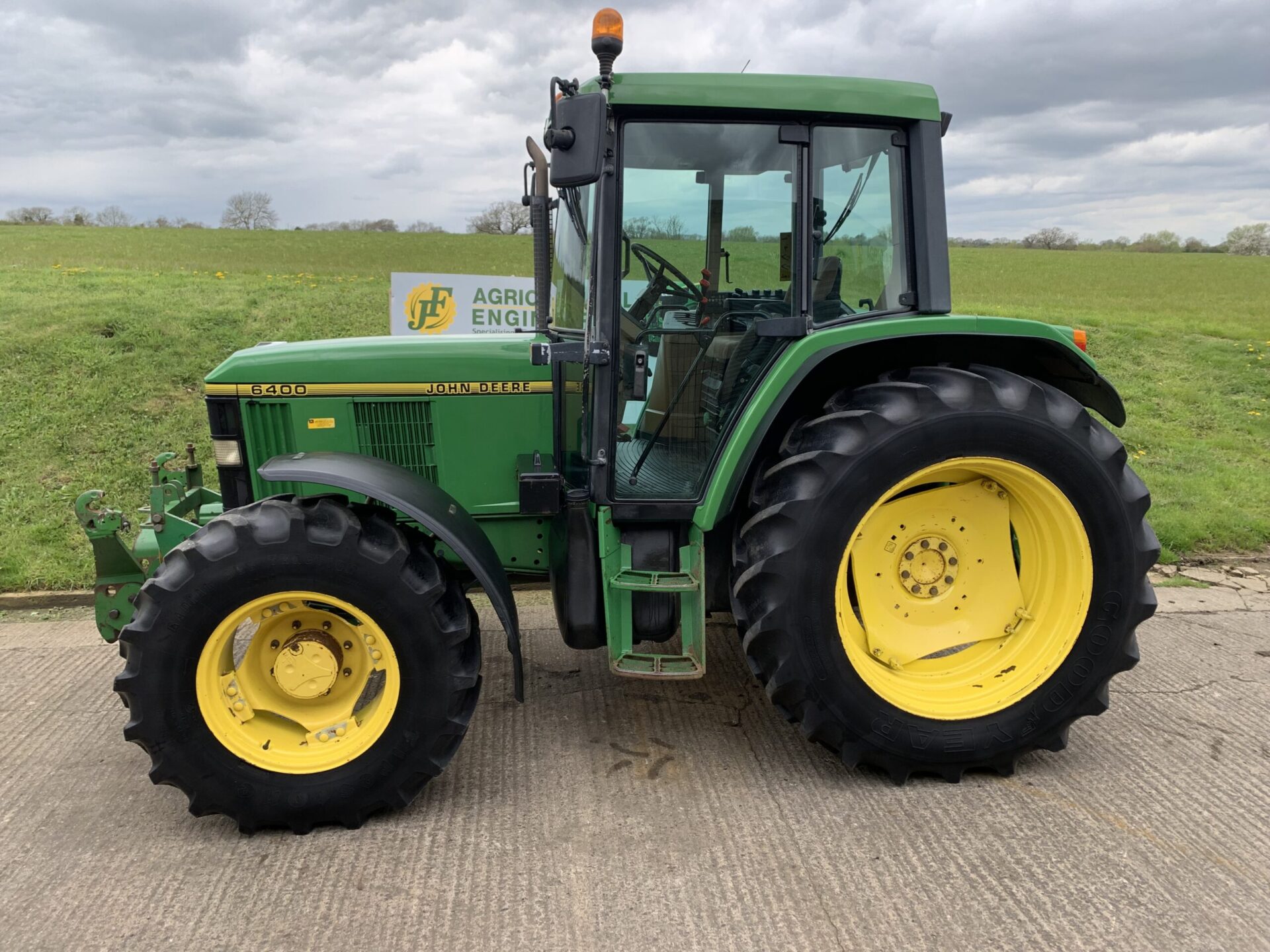

John Deere 6400 SE
John Deere 6400 SE · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
4100 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank160.1 LReference
Engine74.6 kWReference
John Deere 4045 TLReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Power74.6 kWReference
Rated RPM2300Reference
Torque350.0 NmReference
Torque RPM1540Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed fully synchronizedReference
16-speed power shuttleReference
TransmissionJohn Deere SyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
TransmissionJohn Deere Power ReverserReference
Typepower shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
Pressure200.0 barReference
Total flow54.0 lpmReference
Rear lift5148 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase240 cmReference
Weight4100 kgReference
Front tire13.6R24Reference
Rear tire16.9R38Reference
Standard tires (ag)Front: 13.6R24. Rear: 16.9R38Reference
Length420 cmReference
Height (cab)268 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
