Tractor · 1992Unverified

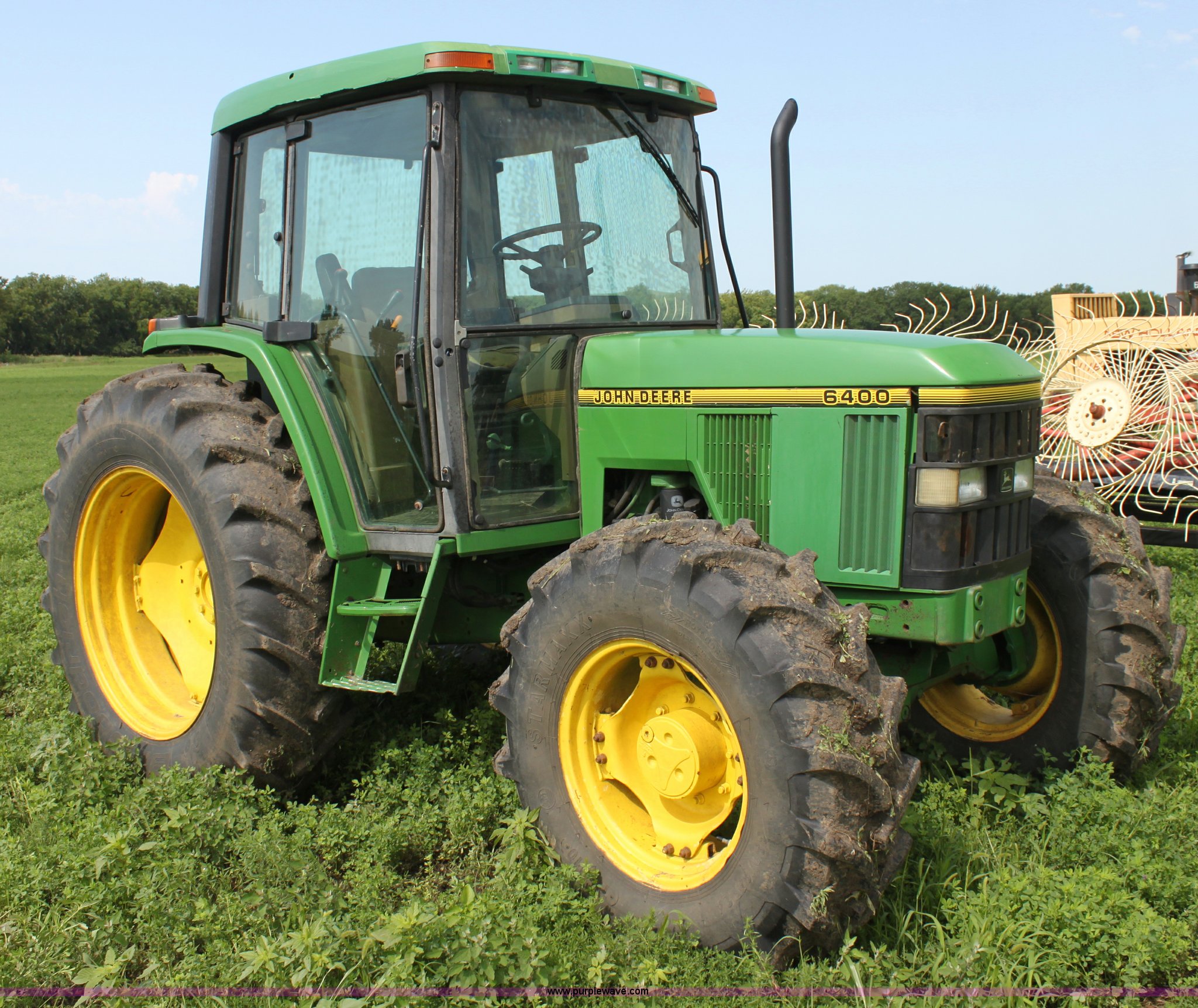

John Deere 6400L

Name: John Deere 6400L
Brand: John Deere

John Deere 6400L — Orchard/Vineyard tractor · 85 hp. Reference specifications; pending source verification.

The John Deere 6400L is a tractor with an 85 hp rated power, categorised as mid-range in its class. Manufactured from 1992 to 1998, it features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. The 6400L has an operating weight of 7607 to 8379 pounds, and is suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

85 hp

Weight

7607 to 8379 pounds

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

85 hp

Recorded weight

3450 kg

Transmissions

12-speed fully synchronized

Production years

1992-1998

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Orchard/Vineyard tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Two- or four-wheel driveReference

Power steeringReference

Differential hydraulic wet disc brakesReference

ROPS. Cab optional.Reference

Variants

6400utility tractorReference

6400Llow-profileReference

Engine

John Deere 4.5L 4-cyl dieselReference

Engine73.8 kWReference

John Deere 4045Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

Power73.8 kWReference

Compression17.8:1Reference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Starter power3.1 kWReference

Oil capacity12.0 LReference

Coolant capacity11.0 LReference

Transmission

12-speed fully synchronizedReference

21-speedReference

16-speed partial power shiftReference

28-speed partial power shiftReference

TransmissionJohn Deere SyncroPlusReference

Typefully synchronizedReference

Gears12 forward and 4 reverseReference

Oil capacity51.9 LReference

Three gears, plus reverse, in four ranges.Reference

TransmissionJohn Deere SyncroPlus CreeperReference

Gears21 forward and 7 reverseReference

TransmissionJohn Deere PowrQuadReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Oil capacity48.8 LReference

Four power shift gears in four synchronized ranges, with reverser.Reference

TransmissionJohn Deere PowrQuad CreeperReference

Gears28 forward and reverseReference

PTO & Hydraulics

PTO (claimed)63.4 kWReference

Typeclosed center pressure flow compensatedReference

Pressure200.0 barReference

Valves2Reference

Total flow68.1 lpmReference

Total flow96.1 lpmReference

Rear TypeIIReference

Rear lift2683 kgReference

Rear PTO Type540/1000Reference

Capacities

Fuel113.6 LReference

Front axle6.4 LReference

Front hubs3.4 LReference

Dimensions

Wheelbase240 cmReference

Weight7607 to 8379 poundsReference

Front tire27/9.5-15Reference

Rear tire18.4-26Reference

Ag front27/9.5-15 (2WD)Reference

Ag front10.5/80-18 (4WD)Reference

Ag rear18.4-26Reference

Length414 cmReference

Width211 cmReference

Height (steering wheel)173 cmReference

Height (ROPS)233 cmReference

Height (Folded ROPS)174 cmReference

2WD Shipping weight3450 kgReference

4WD Shipping weight3800 kgReference

Ground clearance37 cmReference

John Deere 6400L attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery CCA780Reference

Battery volts12Reference

Battery AH110Reference

Battery AH154Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
