Tractor · 1999Unverified

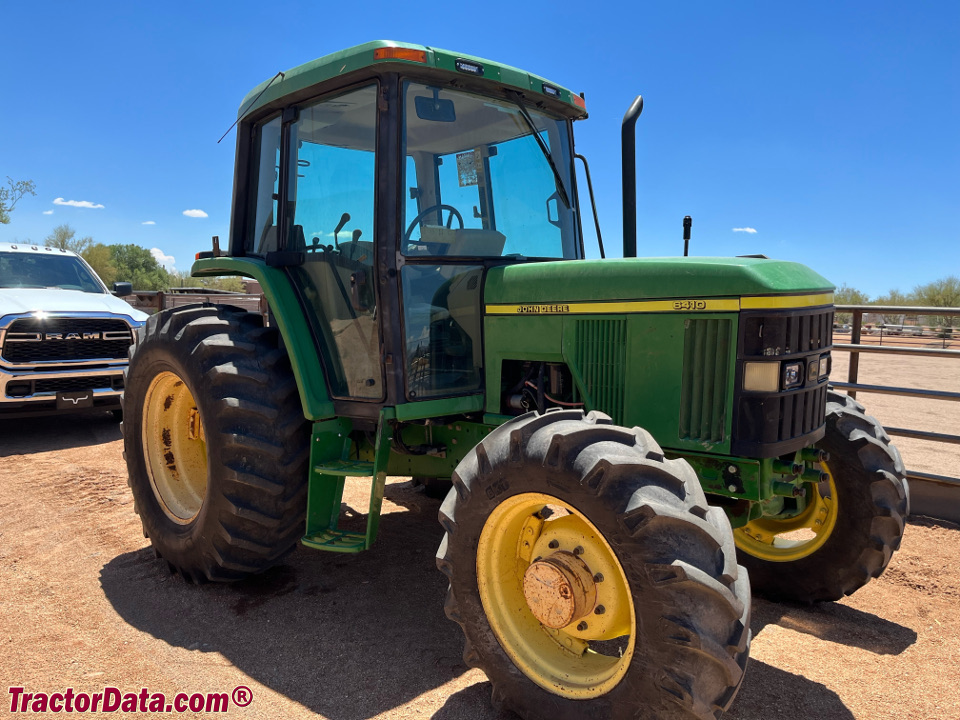

John Deere 6410
John Deere 6410 — Utility tractor · 104 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
104 hp
Max power
73.1 kW
Weight
7607 to 9680 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post ROPS. ComfortGard cab optional with air-conditioning.Reference
Variants
6410utility tractorReference
6410Llow-profileReference
6410Slow-profile cabReference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank116.2 LReference
Fuel tank165.0 LReference
Fuel tank181.7 LReference
Engine (gross)77.6 kWReference
Drawbar (tested)55.8 kWReference
John Deere 4045TL056Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Power (gross)77.6 kWReference
Compression17.8:1Reference
Rated RPM2300Reference
Operating RPM1500-2300Reference
Torque440.7 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity12.0 LReference
ROPS Coolant capacity11.0 LReference
Cab Coolant capacity13.5 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Max power73.1 kWReference
Power at rated engine speed67.4 kWReference
Max power55.8 kWReference
Transmission
12-speed fully synchronizedReference
16-speed four-speed power shiftReference
24-speed four-speed power shiftReference
TransmissionSyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutchwet discReference
Three gears (1-3), plus reverse (R) in four ranges (A-D).Reference
TransmissionSyncroPlus Power ReverserReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four synchronized gears (1-4) in four ranges (A-D) with left-hand power reverser.Reference
TransmissionPowrQuadReference
Clutchhydraulic wet discReference
Four power shift gears (1-4) in four synchronized ranges (A-D) with reverser.Reference
Gears24 forward and reverseReference
Four power shift gears (1-4) in six synchronized ranges (A-F) with reverser.Reference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
PTO (tested)73.1 kWReference
Typeclosed center pressure-flow compensatingReference
Pressure200.0 barReference
Valves1 to 4Reference
Pump flow96.1 lpmReference
Pump flow71.5 lpmReference
Rear TypeIIReference
Controlelectronic lower-link draft sensingReference
Rear lift2683 kgReference
Front HitchoptionalReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2143Reference
Engine RPM540E@1684Reference
Engine RPM1000@2208Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@2185Reference
Power at rated PTO speed69.0 kWReference
Dimensions
Wheelbase240 cmReference
Weight7607 to 9680 poundsReference
Front tire7.50-18Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
Length413 cmReference
Width203 cmReference
2WD Clearance (front axle)58 cmReference
4WD Clearance (front axle)48 cmReference
Flange rear axleReference
Rack-and-pinion rear axle78 by 2268 mmReference
Rack-and-pinion rear axle78 by 2555 mmReference
2WD ROPS Shipping3450 kgReference
2WD Cab Shipping3680 kgReference
4WD ROPS Shipping3740 kgReference
4WD Cab Shipping3970 kgReference
4WD Cab Operating4390 kgReference
Steering wheel182 cmReference
John Deere 6410 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps90Reference
Cab Charging amps115Reference
Battery CCA830Reference
Battery CCA1230Reference
Battery volts12Reference
Battery AH110Reference
Battery AH154Reference
Attachment overview
John Deere 620 loaderReference

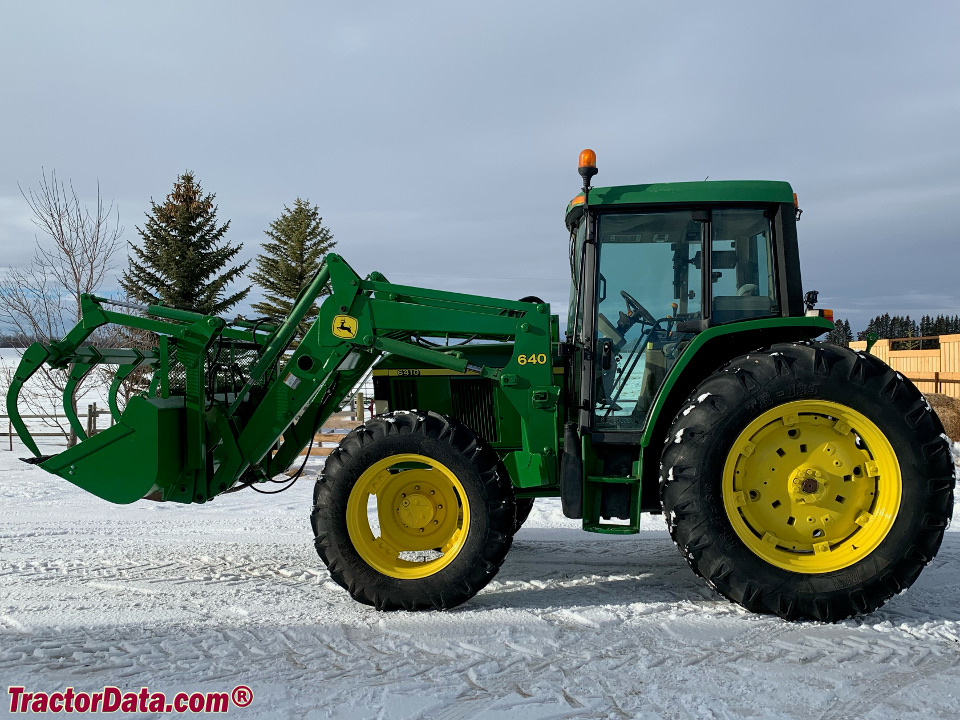

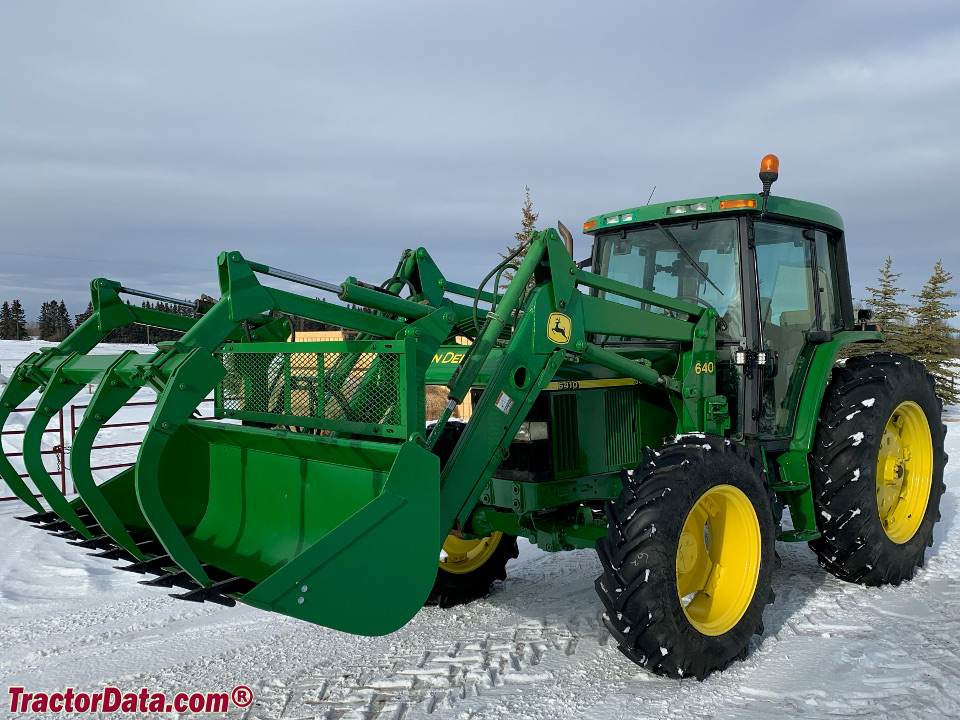

John Deere 640 loaderReference
John Deere 640SL loaderReference
John Deere 6410 Height
ROPS280 cmReference
Cab265 cmReference
Exhaust263 cmReference
Test results
Diesel PowrQuad 4WDMay 1998 - June 1998, Link: OCED Tractor Test 1806 fileReference
PTO performanceReference
Fuel use20.4 l/hourReference
Fuel use20.8 l/hourReference
Drawbar performanceReference
Gear 1C used for power test.Reference
Max pull4300 kgReference
Gear 2B used for pull test.Reference
Speeds
With 18.4-30 rear tires.Reference
With 18.4-30 rear tires. Reverse speeds are 20% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
