Tractor · 2003Unverified

John Deere 6415

Name: John Deere 6415
Brand: John Deere

John Deere 6415 — Utility tractor · 105 hp. Reference specifications; pending source verification.

The John Deere 6415 is a tractor model rated at approximately 105 horsepower, a mid-range figure for its class. It was produced from 2003 to 2007 and features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The operating weight of the tractor ranges from 7695 to 8987 pounds. It is suited to operations on land areas of 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

105 hp

Max power

71.3 kW

Weight

7695 to 8987 pounds

Catalogue coverage

Variants represented

Richest spec table

135 rows

Recorded power

105 hp

Transmissions

12-speed fully synchronized

Production years

2003-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. ComfortVantage Cab optional with air-conditioning.Reference

Variants

6415utilityReference

6415HChigh-clearanceReference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank165.0 LReference

Engine (gross)78.0 kWReference

Engine (net)74.6 kWReference

Drawbar (tested)54.5 kWReference

John Deere 4045Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

Rated Power (net)74.6 kWReference

Rated Power (gross)78.0 kWReference

Compression17.8:1Reference

Rated RPM2300Reference

Operating RPM1500-2300Reference

Firing order1-3-4-2Reference

Starter volts12Reference

Starter power3.1 kWReference

Oil capacity15.9 LReference

ROPS Coolant capacity11.0 LReference

Cab Coolant capacity13.5 LReference

Max power71.3 kWReference

Power at rated engine speed65.2 kWReference

Max power54.5 kWReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,300 RPMReference

Engine torque at rated speed131.5 kgReference

Bore and stroke4.15x5.00 inchesReference

Compression ratio17.8:1Reference

Cooling systemliquid-cooledReference

Transmission

12-speed fully synchronizedReference

16-speed power shuttleReference

16-speed four-speed power shiftReference

TransmissionSyncroPlusReference

Typefully synchronizedReference

Gears12 forward and 4 reverseReference

Clutchwet discReference

Three synchronized gears (1-3) plus reverse (R) in four synchronized ranges (A-D).Reference

TransmissionSyncroPlus ReverserReference

Typepower shuttleReference

Gears16 forward and reverseReference

Reverser option adds left-hand power shuttle lever to SyncroPlus transmission. Four synchronized gears (1-4) in four synchronized ranges (A-D) with shuttle lever.Reference

TransmissionPowrQuadReference

Typefour-speed power shiftReference

Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle lever.Reference

Transmission TypeSync ShuttleReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)63.4 kWReference

PTO (tested)71.3 kWReference

Typeconstant-flow load-sensingReference

Valves1 to 4Reference

Pump flow66.2 lpmReference

Rear TypeIIReference

Controlelectro-hydraulic lower-link draft sensingReference

Rear lift (at 24"/610mm)2280 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Power at rated PTO speed67.6 kWReference

Dimensions

Wheelbase240 cmReference

Weight7695 to 8987 poundsReference

Front tire10.00-16Reference

2WD Rear tire18.4-34Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-34Reference

4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-34Reference

2WD Optional tires (ag)Front: 10.00-16. Rear: 18.4-30Reference

2WD Optional tires (ag)Front: 10.00-16. Rear: 18.4-38Reference

4WD Optional tires (ag)Front: 12.4-24. Rear: 18.4-30Reference

4WD Optional tires (ag)Front: 12.4-24. Rear: 18.4-38Reference

4WD Optional tires (ag)Front: 13.6-24. Rear: 18.4-30Reference

4WD Optional tires (ag)Front: 13.6-24. Rear: 18.4-34Reference

4WD Optional tires (ag)Front: 13.6-24. Rear: 18.4-38Reference

Length413 cmReference

Height (exhaust)246 cmReference

Flange rear axleReference

2WD ROPS Shipping3490 kgReference

2WD Cab Shipping3891 kgReference

4WD ROPS Shipping3687 kgReference

4WD Cab Shipping4076 kgReference

John Deere 6415 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Battery CCA830Reference

Battery volts12Reference

Battery AH110Reference

Attachment overview

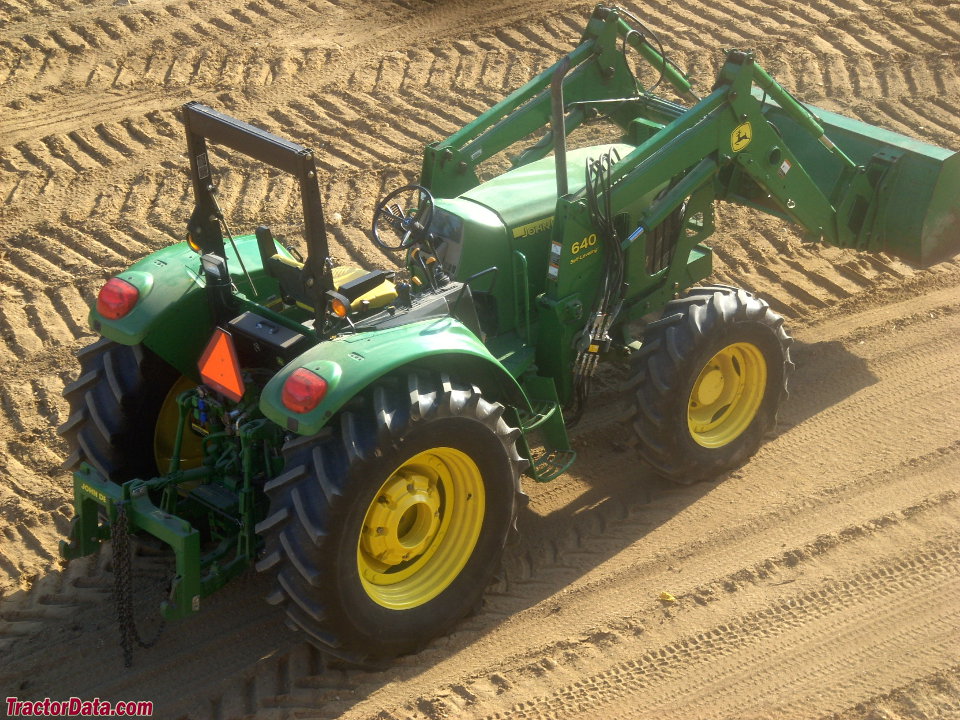

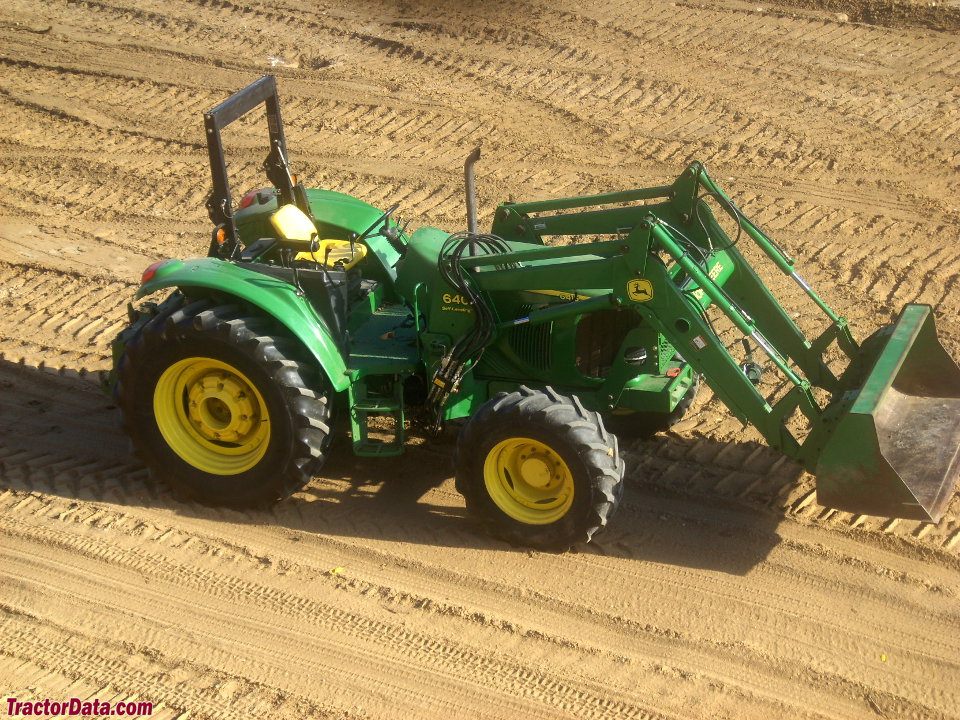

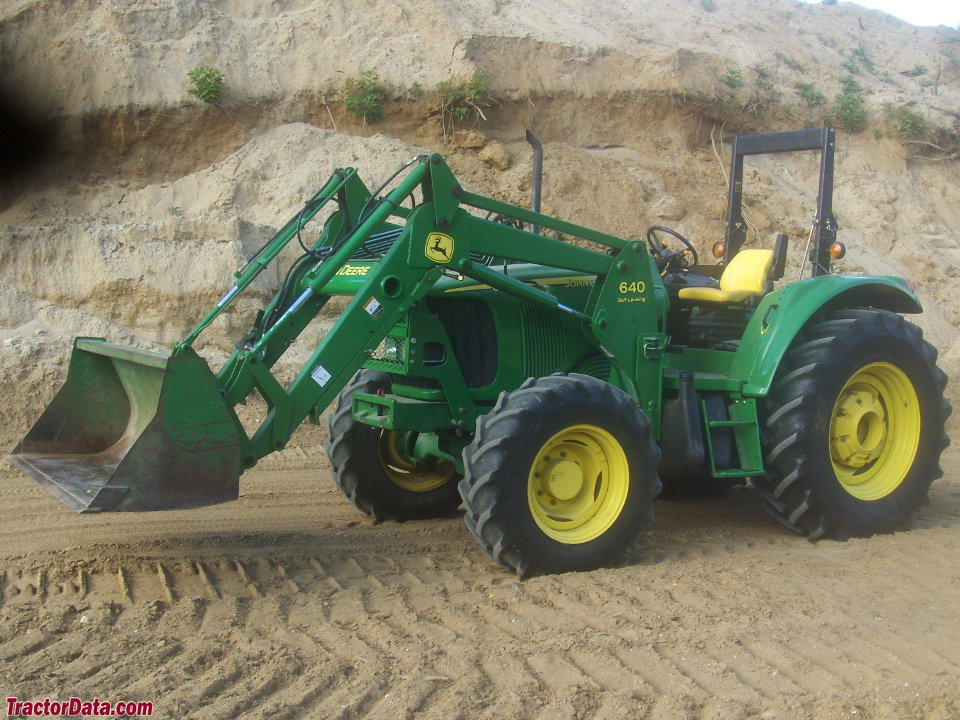

John Deere 620 loaderReference

John Deere 640 loaderReference

The John Deere model 620 loader was only compatible with 6415 two-wheel drive tractors.Reference

Test results

Diesel 16-speed 4WDSeptember 2003 - January 2004, Link: OCED Tractor Test 2127 fileReference

PTO performanceReference

Fuel use22.3 l/hourReference

Fuel use21.6 l/hourReference

Drawbar performanceReference

Fuel use22.0 l/hourReference

Max pull4111 kgReference

Speeds

With 18.4-34 rear tires.Reference

With 18.4-34 rear tires. Reverse speeds are 20% faster than forward speeds.Reference

With 18.4-38 rear tires. Reverse speeds are 20% faster than forward speeds.Reference

General

Make & ModelJohn DeereReference

Rear Axle TypeFlange | Rack-and-pinionReference

Country of manufacturerBrazilReference

Capacities

Capacity276 ciReference

Crankcase oil volume12.7 qtsReference

PTO

PTO Power90 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic Wet DiscReference

Steering typeHydrostatic PowerReference

Hydraulics

Hydraulics TypeClosed-Center Gear PumpReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 3 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity2,469.8 kgReference

Rear Hitch Sensing Typeelectronic lower linkReference

Dimensions & weight

Overall Height271.5 cmReference

Overall Length457.2 cmReference

Overall weight3,687.7 kgReference

Wheels & tyres

Rear Wheel Type23.1-30Reference

Rear wheel tread range64.4 to 75.5 inchesReference

Front Wheel Type14.9-26Reference

Front Wheel tread range63.6 to 84.8 inchesReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
