Tractor · 2007Unverified

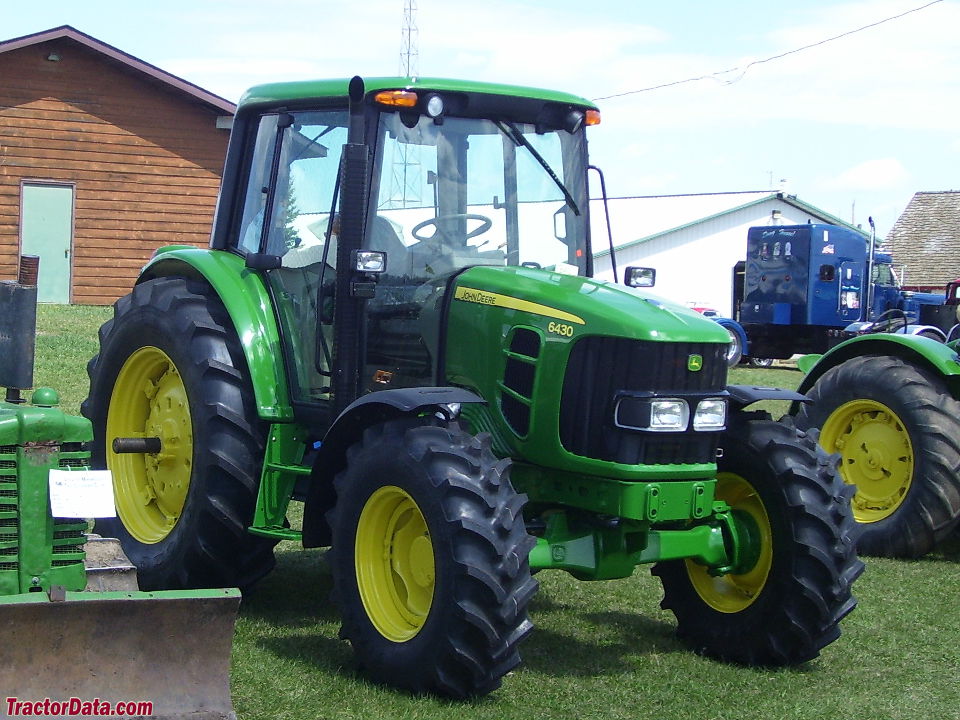

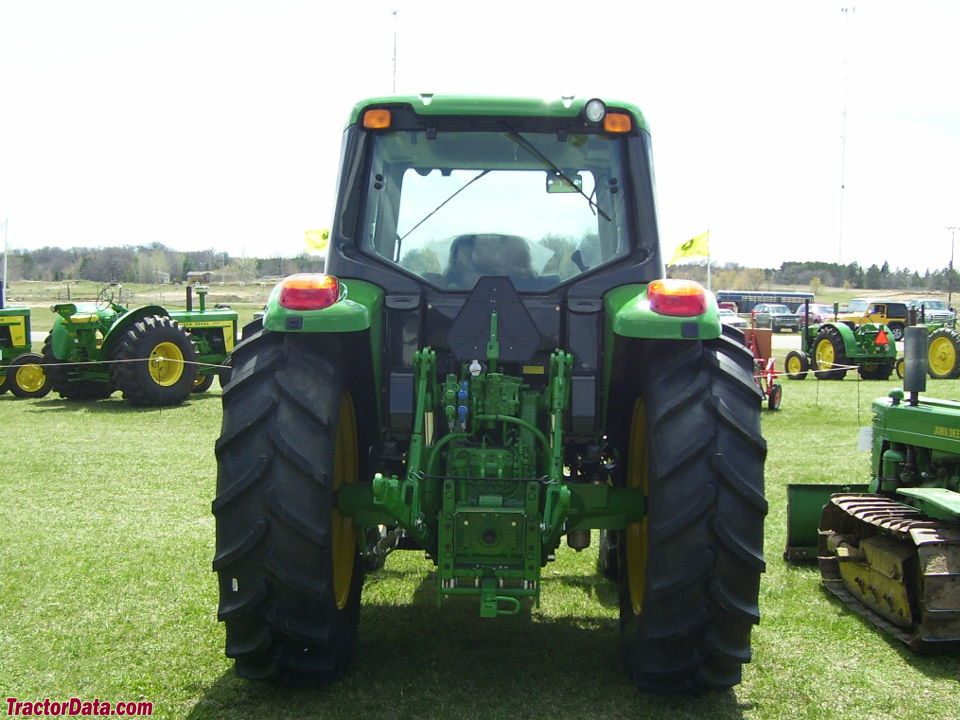

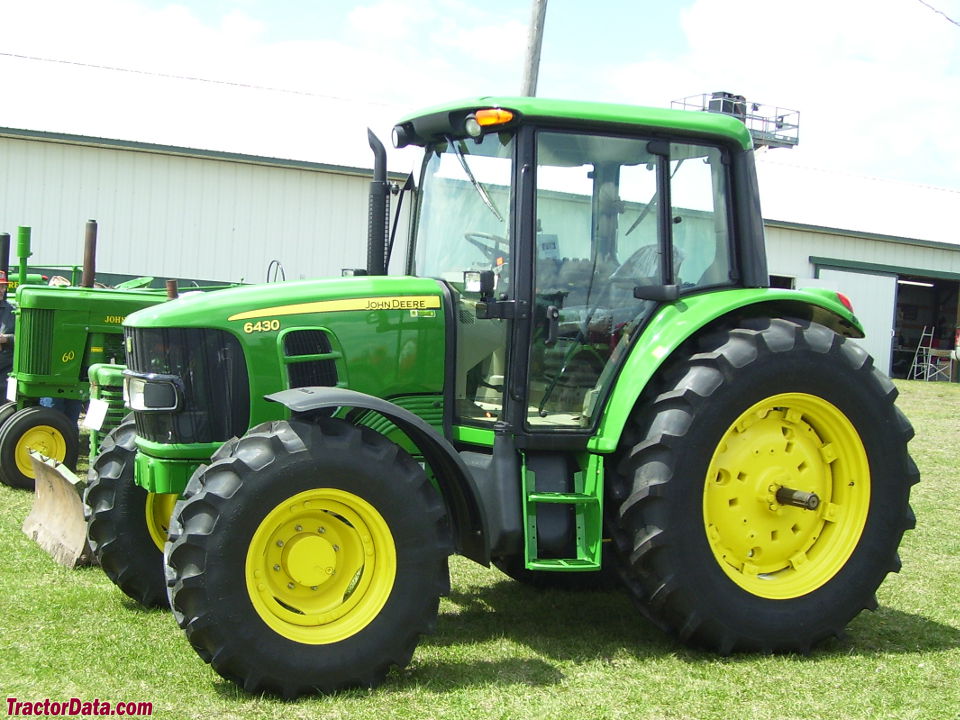

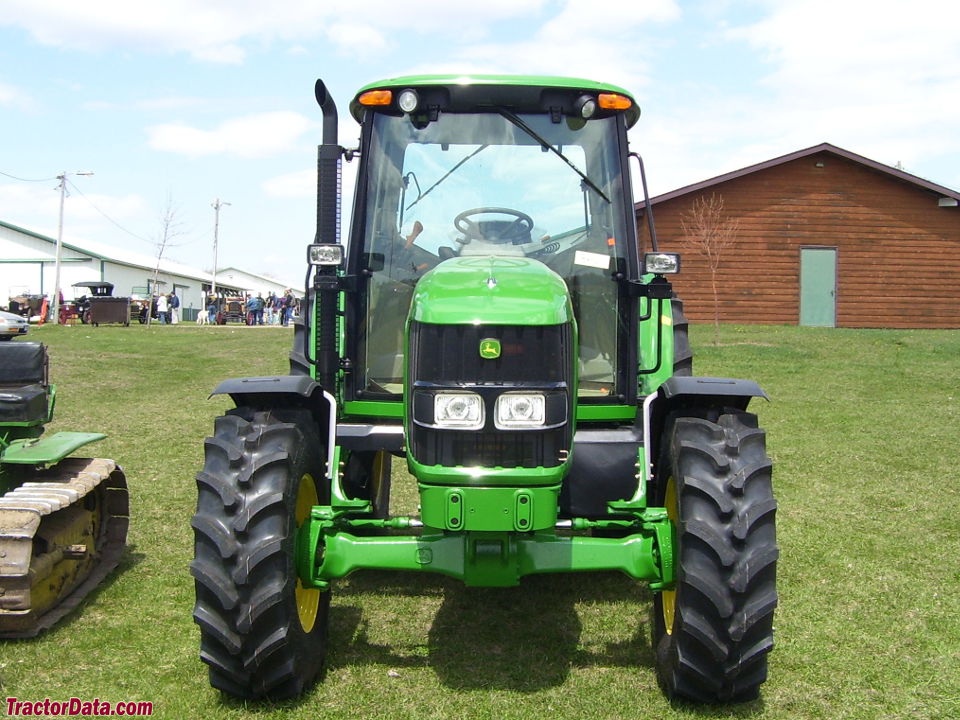

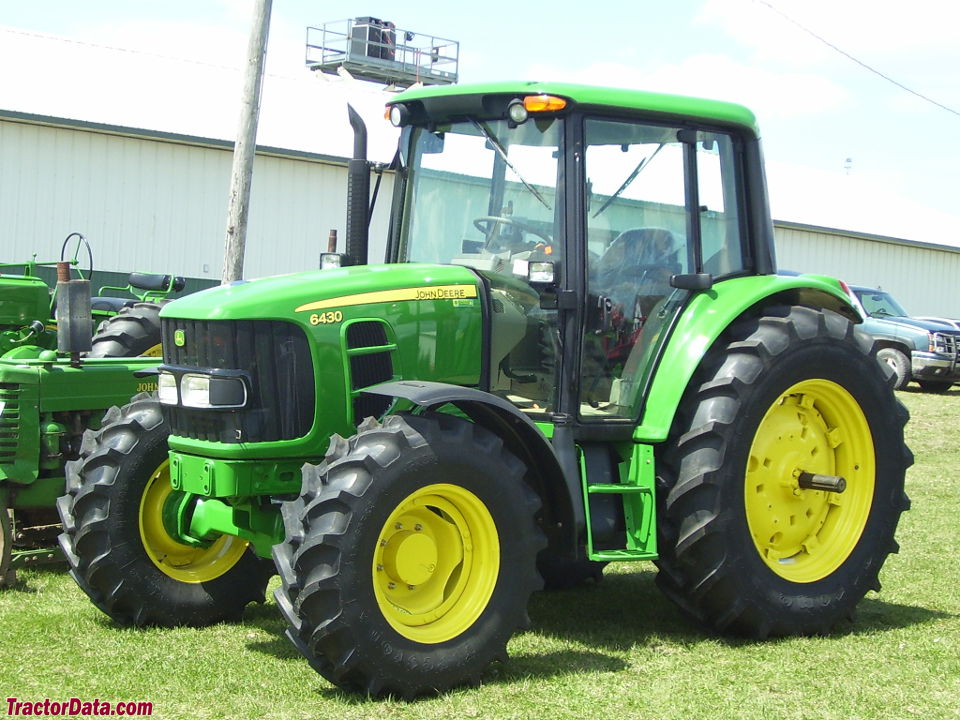

John Deere 6430
John Deere 6430 · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Max power
82.8 kW
Weight
4536 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
6430 Premiumpremium cab and upgraded featuresReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)89.5 kWReference
Drawbar (tested)66.0 kWReference
John Deere 4045HL281 PowerTech EReference
turbocharged dieselReference
4-cylinder 8-valveReference
liquid-cooled vertical inlineReference
Original engine, used in the basic 6330 from 2007 through the 2009 model year.Reference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier IIIReference
Rated Power (gross)85.8 kWReference
Air cleanerdual dry elementReference
Compression19:1Reference
Rated RPM2300Reference
Idle RPM850-2460Reference
Operating RPM1500-2300Reference
Torque466.5 NmReference
Torque RPM1500Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity15.9 LReference
Coolant capacity26.5 LReference
Coolant capacity29.1 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
John Deere 4045HL288 PowerTech EReference
Replacement engine, first used in the 2010 model year.Reference
Rated Power (gross)89.5 kWReference
Torque482.7 NmReference
Torque RPM1600Reference
Max power82.8 kWReference
Power at rated engine speed76.4 kWReference
Max power66.0 kWReference
Transmission
12-speed fully synchronizedReference
16-speed synchronized with power shuttleReference
16-speed partial power shiftReference
24-speed partial power shiftReference
TransmissionJohn Deere SyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Oil capacity51.9 LReference
TransmissionJohn Deere PowrReverserReference
Typesynchronized with power shuttleReference
Gears16 forward and reverseReference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Clutchwet discReference
Oil capacity48.8 LReference
Oil capacity50.0 LReference
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Gear changes (1-4) and direction changes can be done while moving without the clutch. Clutch is required to shift range (A-D). Optional PowrQuad Plus adds push-button gear shifting.Reference
Gears24 forward and reverseReference
Oil capacity50.0 LReference
Four gears (1-4) in six ranges (A-E) with left-hand reverser lever. Gear changes (1-4) and direction changes can be done while moving without the clutch. Clutch is required to shift range (A-D). Optional PowrQuad Plus adds push-button gear shifting.Reference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
PTO (claimed)73.8 kWReference
PTO (tested)82.8 kWReference
Hydraulic system51.9 LReference
Typeopen-center load sensingReference
Typeclosed-center pressure-flow compensated (optional)Reference
Capacity51.9 LReference
Pressure200.0 barReference
Valves1 to 3Reference
Total flow79.9 lpmReference
Total flow109.8 lpmReference
Rear TypeII/IIIReference
Rear lift (at 24"/610mm)2018 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Power at rated PTO speed78.6 kWReference
Capacities
Fuel165.0 LReference
Fuel181.7 LReference
Dimensions
Wheelbase240 cmReference
Weight4536 kgReference
Ground clearance46 cmReference
6430 Serial Number Location
On the main tractor frame, right side, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps115Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDApril 12 - 25, 2011Link: OCED Tractor Test 1987 fileReference
PTO performanceReference
Fuel use25.4 l/hourReference
Fuel use25.7 l/hourReference
Drawbar performanceReference
Max pull4592 kgReference
Speeds
With 18.4R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
