Tractor · 1981Unverified

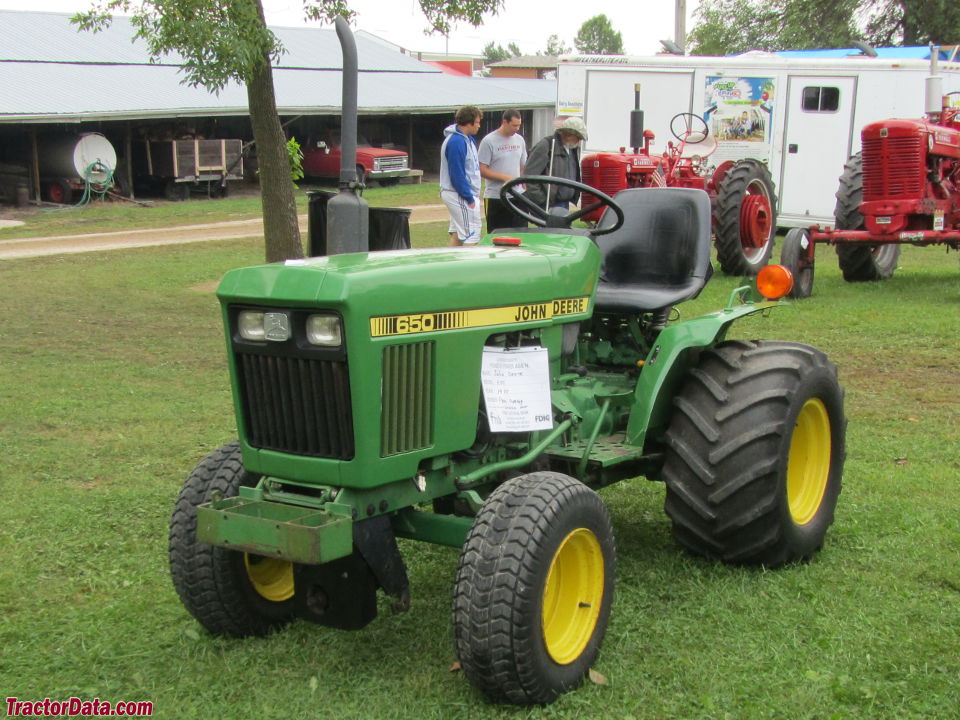

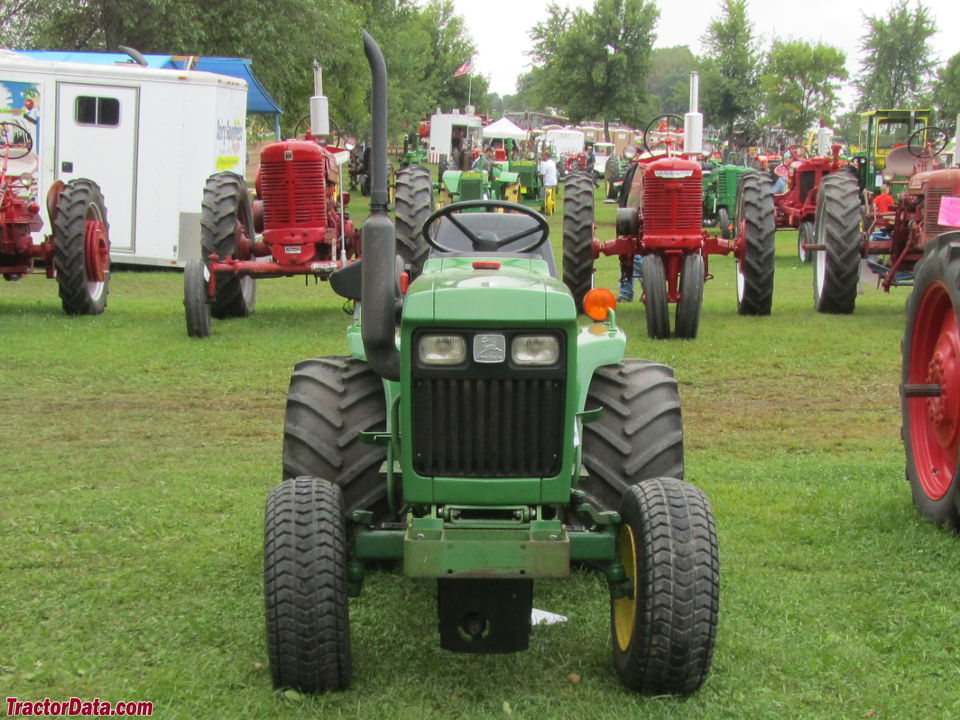

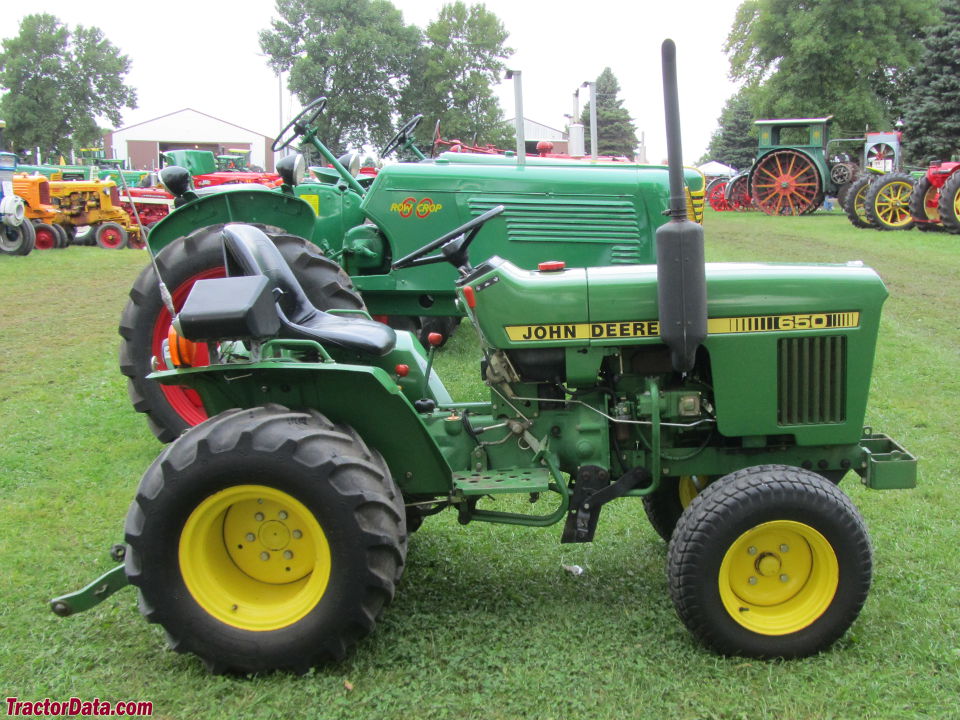

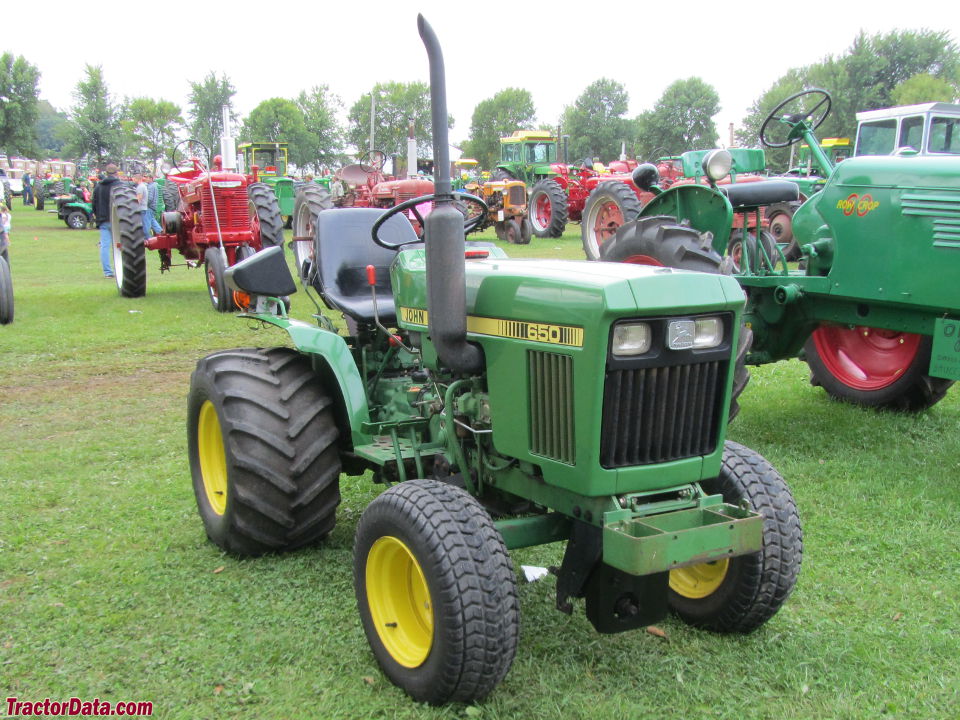

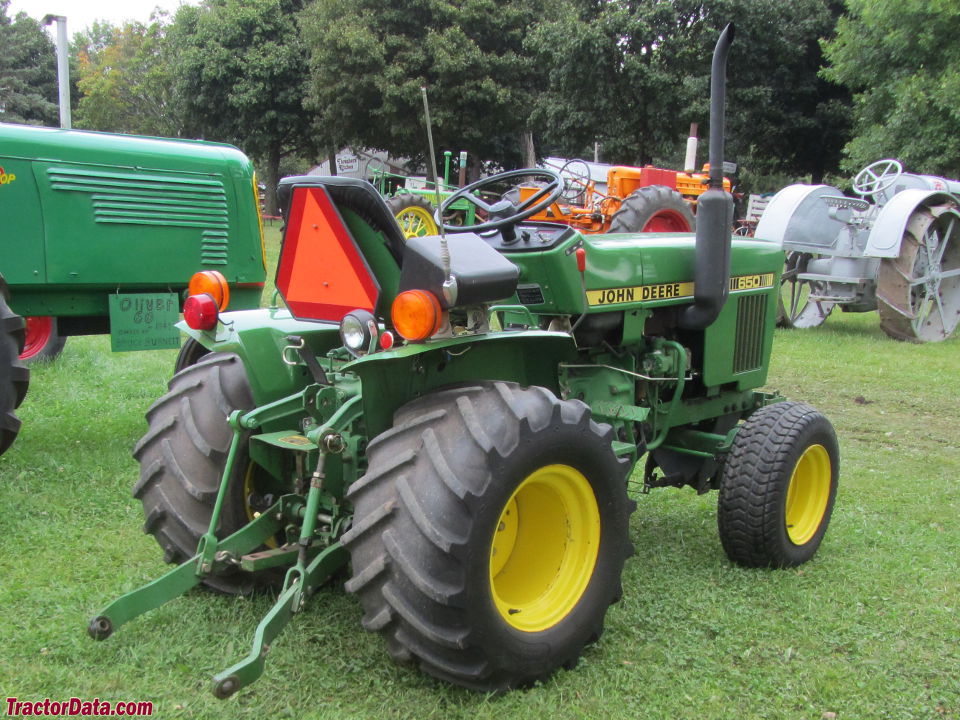

John Deere 650
John Deere 650 — 50 Compact Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1530 to 1640 pounds
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerYanmarReference
Compact Utility tractorReference
Built in JapanReference
Original price$6,030 (1983 2WD )Reference
Original price$8,400 (1989 2WD )Reference
Original price$9,300 (1989 4WD )Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference

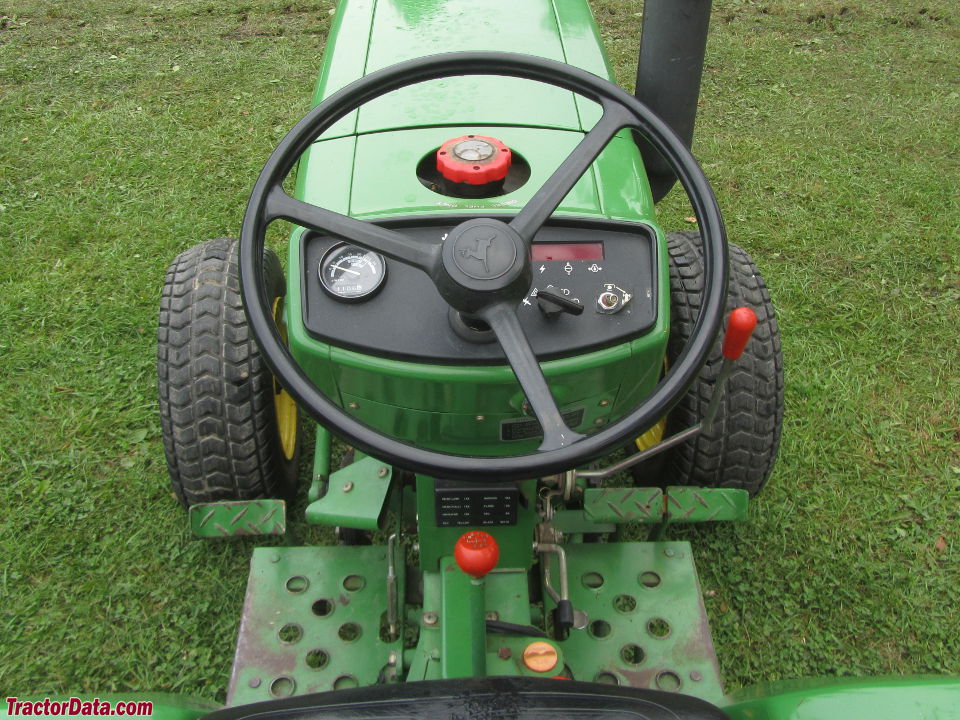

SteeringmanualReference
SteeringpowerReference
Differential mechanical dry, internal expanding shoe brakesReference

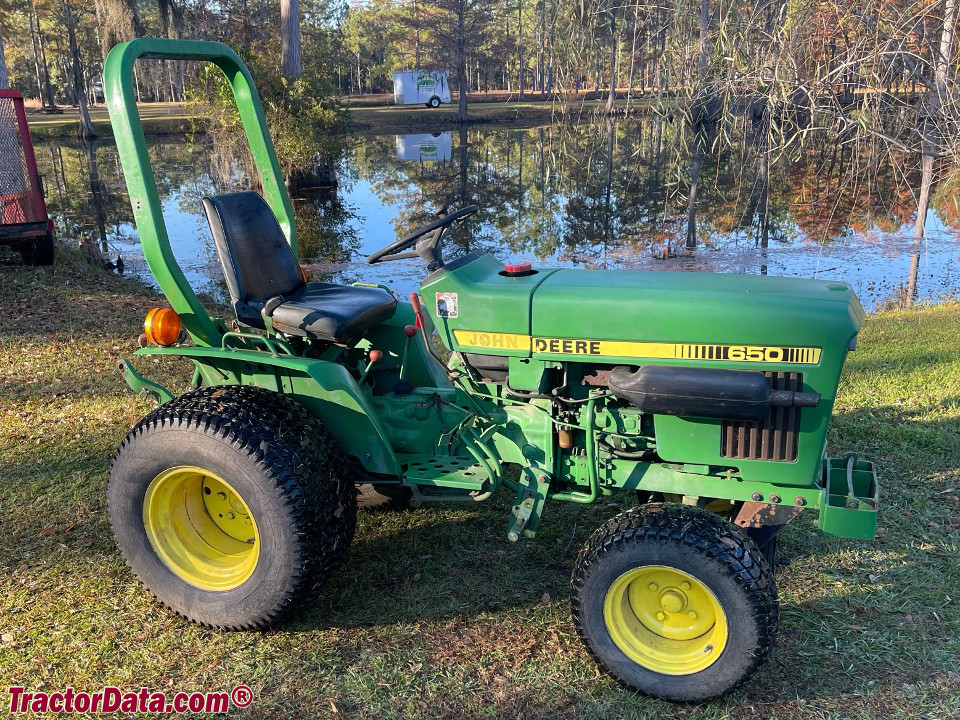

Two-post fixed ROPS.Reference
Engine
Yanmar 0.9L 2-cyl dieselReference
Engine (gross)12.7 kWReference
Yanmar 2T80Reference
dieselReference
2-cylinderReference
liquid-cooled inlineReference
Displacement0.9 LReference
Bore/Stroke80 x 85 mmReference
Power (gross)12.7 kWReference
Air cleanerdryReference
Pre-heatingtherostartReference
Compression22.5:1Reference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity2.4 LReference
Coolant capacity3.8 LReference
Intake valve clearance0.203 mmReference
Exhaust valve clearance0.203 mmReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch200mm dry discReference
Oil capacity13.2 LReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
PTO (claimed)10.8 kWReference
Hydraulic system14.2 LReference
Typeopen centerReference
Capacity14.2 LReference
Pressure140.0 barReference
Valves2Reference

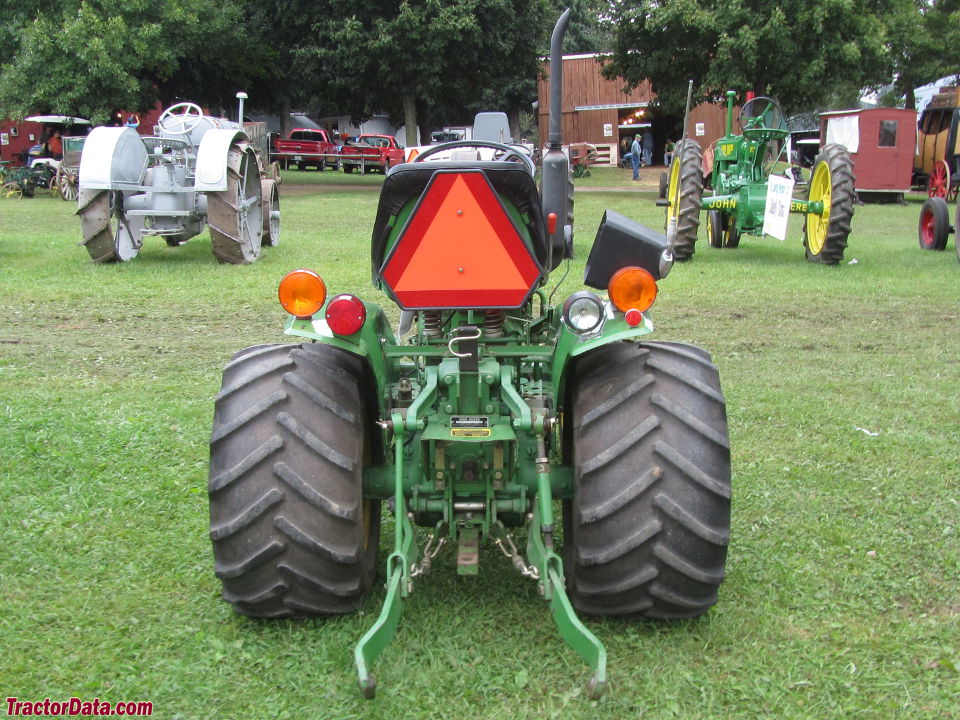

Rear TypeIReference
Controlposition controlReference
Rear PTOtransmissionReference
Clutch200mm over-running dry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2350Reference
Front PTOindependentReference
Clutchelectro-magneticReference
Capacities
Fuel23.5 LReference
Dimensions
Wheelbase142 cmReference
Weight1530 to 1640 poundsReference
Front tire5.00-12Reference
Rear tire9.5-16Reference
Weight140 kgReference
Weight294 kgReference
Standard tires (ag)Front: 5.00-12. Rear: 9.5-16Reference
Standard tires (ag)Front: 6-12. Rear: 9.5-16Reference
Lawn/turf front23/8.5-12Reference
Lawn/turf rear31/15.5-15Reference
Length273 cmReference
Width109 cmReference
2WD Clearance (front axle)34 cmReference
4WD Clearance (front axle)26 cmReference
2WD Front tread83 cmReference
4WD Front tread86 cmReference
Rear tread81/88 cmReference
2WD Shipping694 kgReference
4WD Shipping743 kgReference
Max Drawbar249 kgReference
John Deere 650 attachments
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
650 Serial Number Location
Serial number plate on the rear of the tractor, above the PTO shaft.Reference
650 Serial Numbers
19811000Reference
19823539Reference
19836250Reference
198410543Reference
198515001Reference
198619001Reference
198722501Reference
198824298Reference
Final25426Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps15Reference
Battery CCA370Reference
Battery volts12Reference
Battery GroupBCI 24Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
John Deere 67 loaderReference
John Deere 60 loaderReference
BackhoeReference
Advertised attachments included the model 448 tiller and a 54-inch rotary mower.Reference

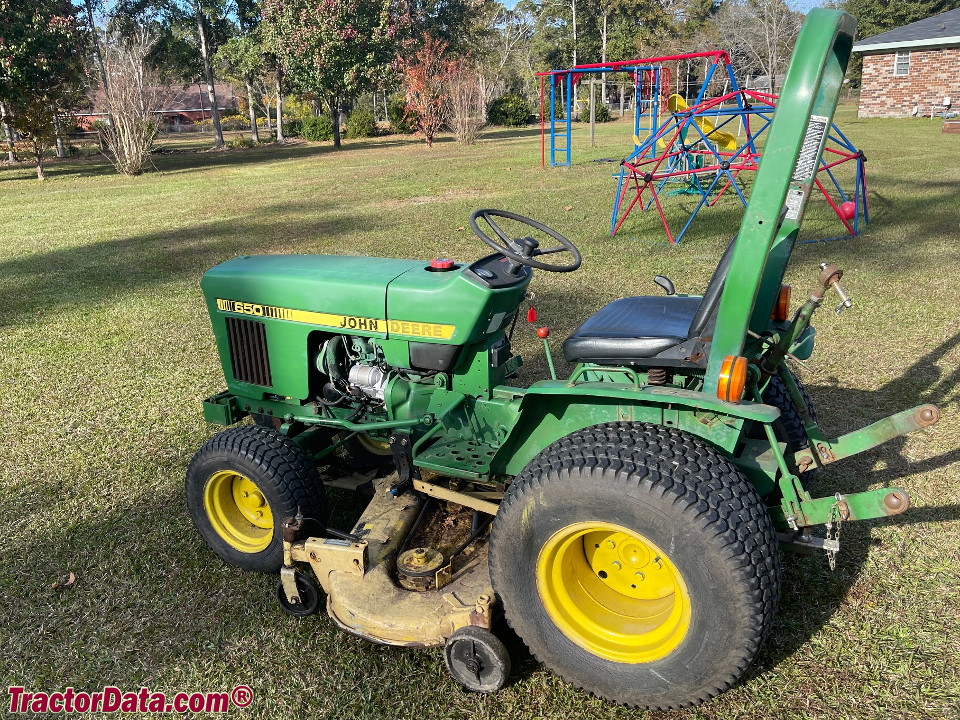

60" Mower deck
Typemid-mount John Deere 160Reference
Type3-bladeReference
Cutting width152 cmReference
Overall width184 cmReference
John Deere 7 Backhoe
Backhoe typeJohn Deere 7 BackhoeReference
Transport height175 cmReference
Digging depth228 cmReference
Reach from pivot289 cmReference
Loading height177 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
John Deere 650 Height
2WD Hood109 cmReference
4WD Hood113 cmReference
ROPS186 cmReference
Exhaust191 cmReference
Speeds
With 9.5-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
