Tractor · 1994Unverified

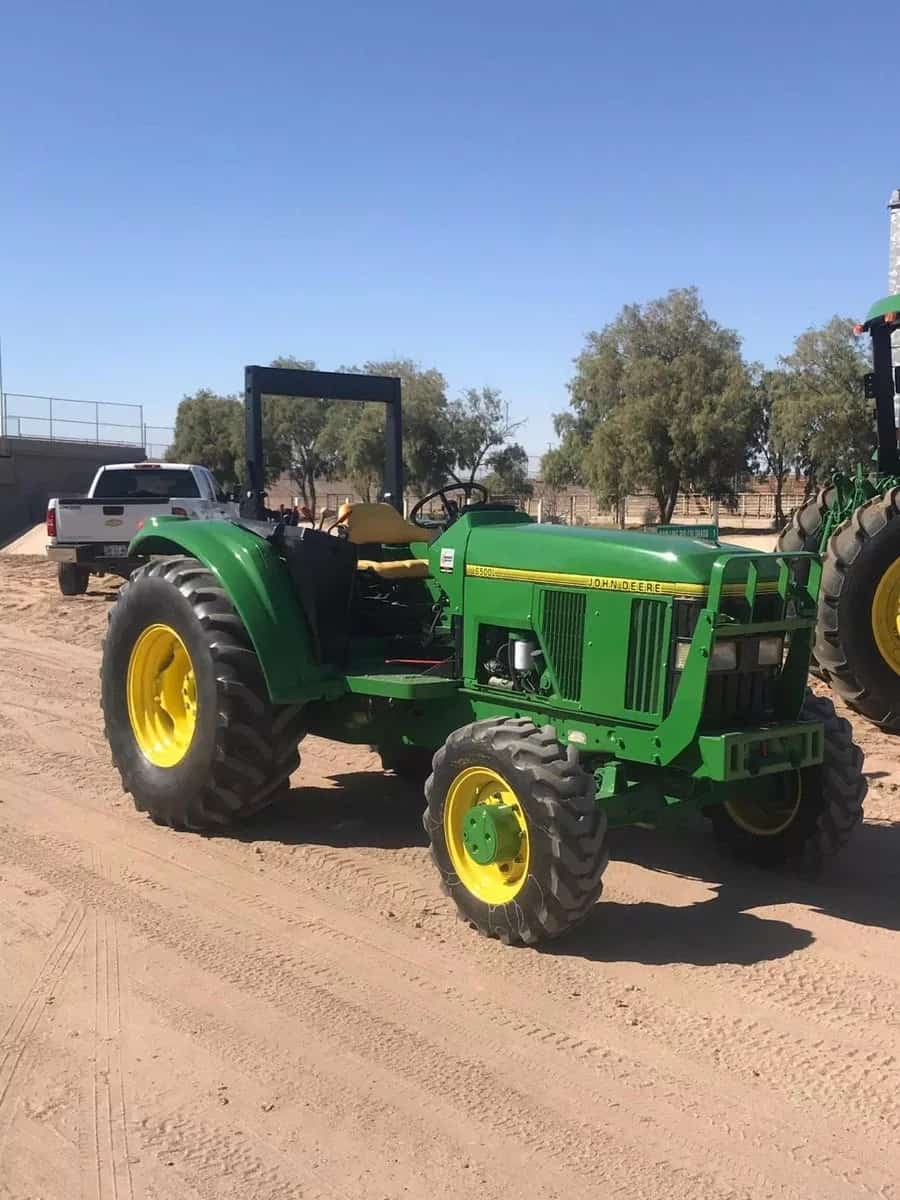

John Deere 6500L
John Deere 6500L — Orchard/Vineyard tractor · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
7740 to 8379 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Orchard/Vineyard tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two- or four-wheel driveReference
Differential hydraulic wet disc brakesReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine85.0 kWReference
John Deere 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Power85.0 kWReference
Compression17.8:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Starter power3.1 kWReference
Oil capacity12.0 LReference
Coolant capacity11.0 LReference
Transmission
16-speed partial power shiftReference
28-speed partial power shiftReference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Oil capacity51.9 LReference
Four power shift gears in four ranges. Optional left-hand reverser allows clutchless shuttle shifting.Reference
TransmissionJohn Deere PowrQuad CreeperReference
Gears28 forward and reverseReference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
Hydraulic system51.9 LReference
Hydraulic system48.8 LReference
Typeclosed center pressure flow compensatedReference
Capacity51.9 LReference
Capacity48.8 LReference
Pressure200.0 barReference
Valves2Reference
Total flow71.5 lpmReference
Total flow96.1 lpmReference
Rear TypeIIReference
Rear lift2683 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel113.6 LReference
Front axle6.4 LReference
Front hubs3.4 LReference
Dimensions
Wheelbase240 cmReference
Weight7740 to 8379 poundsReference
Front tire27/9.5-15Reference
Rear tire18.4-26Reference
Ag front27/9.5-15 (2WD)Reference
Ag front10.5/80-15 (4WD)Reference
Ag rear18.4-26Reference
Length413 cmReference
Height (cab)244 cmReference
2WD Shipping weight3510 kgReference
4WD Shipping weight3800 kgReference
Ground clearance39 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery CCA780Reference
Battery volts12Reference
Battery AH110Reference
Battery AH154Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
