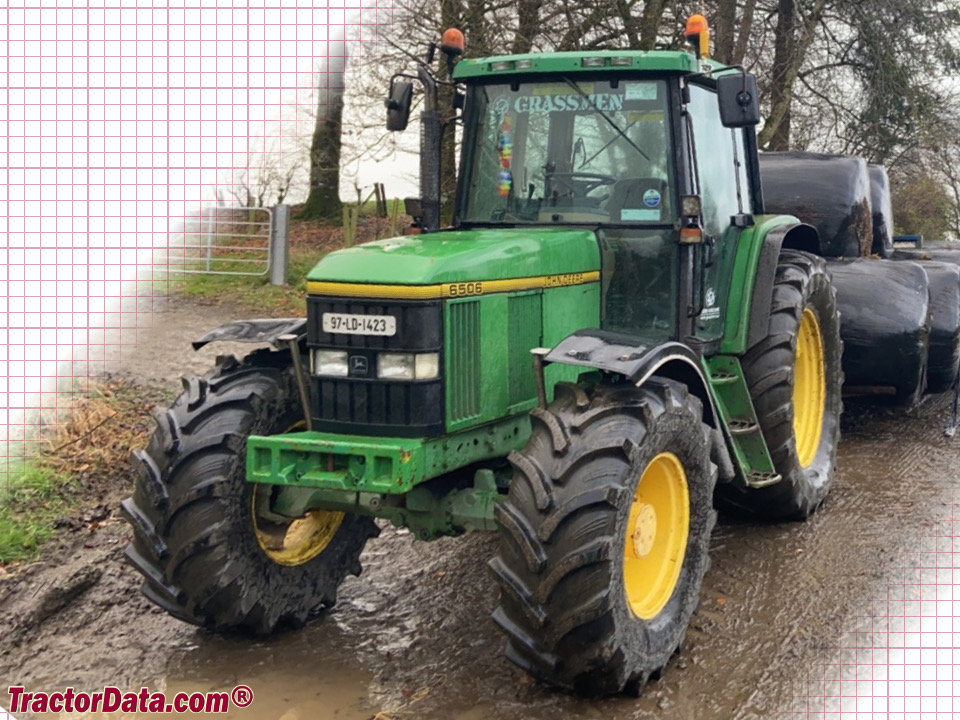

The John Deere 6506 is a tractor with a rated output of 105 hp, situated within the middle of its class in terms of power. This model was manufactured from 1995 to 1997. It features a 6-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a powershift transmission. The listed weight of the tractor is 4649 kg, and it is suitable for working areas of approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
4649 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
105 hp
Recorded weight
4649 kg
Transmissions
20-speed partial power shift
Production years
1995-1997
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank207.0 LReference
Engine78.3 kWReference
John Deere 6068Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power78.3 kWReference
Rated RPM2300Reference
Torque430.1 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed partial power shiftReference
16-speedReference
24-speedReference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears20 forward and reverseReference
Clutchwet discReference
Four power shift gears (1-4) in five ranges (A-E) with power shuttle.Reference
Gears16 forward and 12 reverseReference
Gears24 forward and 16 reverseReference
PTO & Hydraulics
Pressure200.0 barReference
Total flow60.0 lpmReference
Rear lift5474 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase264 cmReference
Weight4649 kgReference
Front tire16.9R24Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 16.9R24. Rear: 18.4R38Reference
Length450 cmReference
Height (cab)280 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
