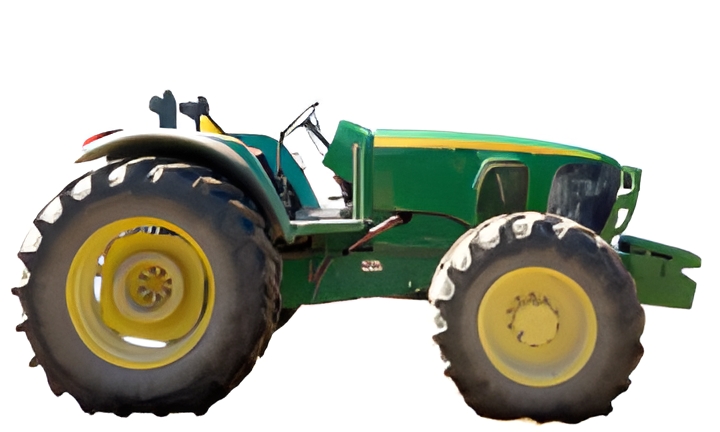

John Deere 6515
John Deere 6515 — Utility tractor · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic wet discReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab available.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine (gross)85.8 kWReference
Engine (net)82.0 kWReference
Engine (max)88.0 kWReference
John Deere 6068HL270Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
EmissionsStage IReference
Rated Power (net)82.0 kWReference
Rated Power (gross)85.8 kWReference
Maximum Power (gross)88.0 kWReference
Cooling systemviscous fanReference
Rated RPM2300Reference
Idle RPM845-2465Reference
Operating RPM1000-2300Reference
Torque474.6 NmReference
Torque RPM1500Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
12-speed fully synchronizedReference
16-speed power shuttleReference
TransmissionSyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutchwet discReference
Three gears (1-3), plus reverse (R), in four ranges (A-D).Reference
TransmissionPowrReverserReference
Typepower shuttleReference
Gears16 forward and reverseReference
Four gears (1-4) in four ranges (A-D) with left-hand shuttle shift.Reference
PTO & Hydraulics
PTO (claimed)68.6 kWReference
2WD Hydraulic system51.9 LReference
4WD Hydraulic system54.9 LReference
Typeopen centerReference
2WD Capacity51.9 LReference
4WD Capacity54.9 LReference
Pressure175.1 barReference
Pump flow54.1 lpmReference
Rear TypeIIIN/IIReference
Controlmechanical top-link draft sensingReference
Rear lift6014 kgReference
Rear PTOindependentReference
Clutchmechanical wet discReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Engine RPM540@2124Reference
Engine RPM1000@2208Reference
Capacities
Fuel207.0 LReference
6515 Serial Numbers
Location:Serial number plate on the right side of the tractor frame.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging volts14Reference
Battery volts12Reference
Battery AH110Reference
Speeds
With 18.4-30 rear tires. Reverse speeds are 4% faster than forward. 30 KPH transmission shown, 40 KPH option available.Reference
