Tractor · 2006Unverified

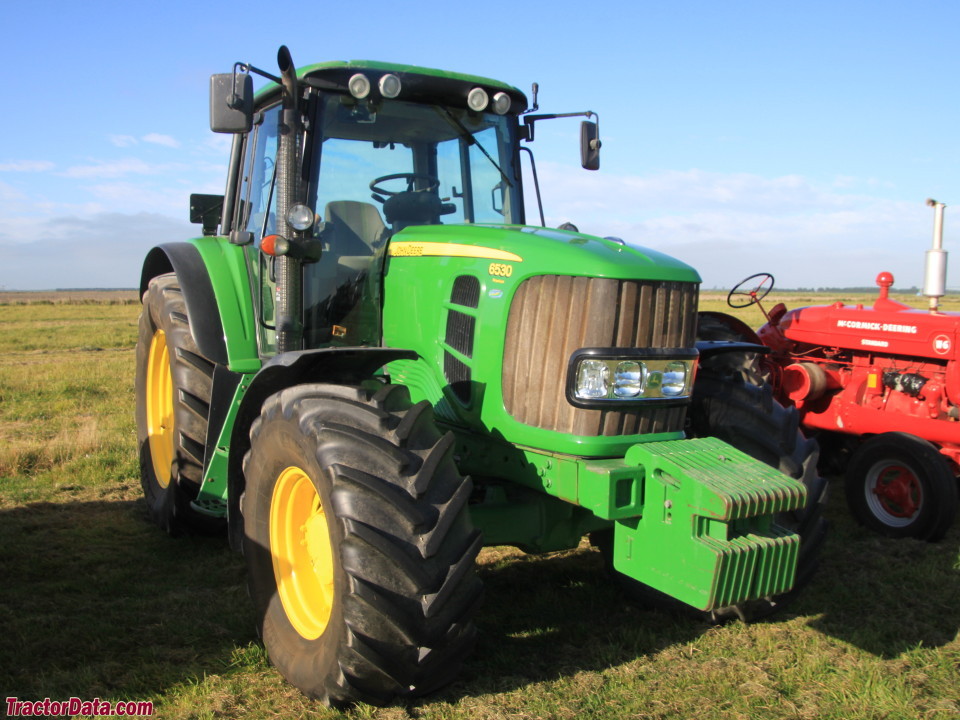

John Deere 6530 Premium

Name: John Deere 6530 Premium
Brand: John Deere

John Deere 6530 Premium · 120 hp. Reference specifications; pending source verification.

The John Deere 6530 Premium is a tractor model with a rated power output of 120 hp, positioning it at the more powerful end of its class. This model was manufactured from 2006 to 2008. It features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. The tractor has an operating weight of 5080 kg and is suitable for operations on 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

120 hp

Weight

5080 kg

Catalogue coverage

Variants represented

Richest spec table

98 rows

Recorded power

120 hp

Recorded weight

5080 kg

Transmissions

24-speed partial power shift

Production years

2006-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Four-wheel driveReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Engine (gross)89.5 kWReference

Engine (net)85.8 kWReference

Engine (max)95.4 kWReference

John Deere 6068HL480Reference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke106 x 127 mmReference

EmissionsTier IIIReference

Emission controlexhaust gas recirculation (EGR)Reference

Rated Power (net)85.8 kWReference

Rated Power (gross)89.5 kWReference

Maximum Power (net)91.7 kWReference

Maximum Power (gross)95.4 kWReference

Fuel systemhigh-pressure common rail injectionReference

Cooling systemviscous fanReference

Air cleanerdry elementReference

Rated RPM2300Reference

Idle RPM845-2465Reference

Operating RPM1300-2300Reference

Torque490.9 NmReference

Torque RPM1500Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Starter power3.0 kWReference

Oil capacity19.5 LReference

Oil change500 hReference

Coolant capacity28.0 LReference

Coolant change1500 hReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Transmission

24-speed partial power shiftReference

36-speed partial power shiftReference

infinitely variable transmission (IVT)Reference

TransmissionJohn Deere PowrQuad PlusReference

Typepartial power shiftReference

Gears24 forward and reverseReference

ClutchPermaClutch II wet discReference

Oil capacity53.0 LReference

Four power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. Optional de-clutch button allows range shifting without using the foot clutch.Reference

TransmissionJohn Deere AutoQuad PlusReference

AutoQuad Plus adds automatic load-matched gear shifting to the PowrQuad transmission. Available in 40kph or 50kph speeds.Reference

TransmissionJohn Deere CreeperReference

Gears36 forward and reverseReference

The optional creeper adds an additional twelve speeds to the PowrQuad or AutoQuad transmission.Reference

TransmissionJohn Deere AutoPowrReference

Typeinfinitely variable transmission (IVT)Reference

Gearsinfinite forward and reverseReference

Oil capacity62.0 LReference

The AutoPowr IVT is controlled by left-hand shuttle and a right-hand speed lever with speed wheel. The speed wheel sets the maximum speed. When set below 2kph, the transmission is automatically in creeper mode. AutoPowr available with 40kph and 50kph maximum speeds.Reference

PTO & Hydraulics

PTO (claimed)76.1 kWReference

Boost PTO (claimed)89.5 kWReference

Hydraulic system53.0 LReference

IVT Hydraulic system62.1 LReference

Typeload-sensing pressure-flow compensating (PFC)Reference

Capacity53.0 LReference

IVT Capacity62.1 LReference

Pressure200.0 barReference

Valves4 (Max)Reference

Pump flow60.2 lpmReference

Optional Pump flow110.1 lpmReference

Rear TypeIIINReference

Control15.9Reference

Optional Control29.1Reference

Rear lift (at ends)6749 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/540E/1000Reference

Engine RPM540@2143Reference

Engine RPM540E@1684Reference

Engine RPM1000@2208Reference

Front PTO Type1000Reference

Engine RPM1000@2185Reference

Capacities

Fuel207.0 LReference

Optional Fuel249.8 LReference

Max capacity9498 kgReference

Dimensions

Wheelbase264 cmReference

Weight5080 kgReference

Front tire420/70R28Reference

Rear tire18.4R38Reference

Standard tires (ag)Front: 420/70R28. Rear: 18.4R38Reference

Length429 cmReference

Width231 cmReference

Height274 cmReference

Front tread162 to 211 cmReference

Rear tread162 to 202 cmReference

Shipping5080 kgReference

Max rear axle6799 kgReference

6530 Premium Serial Numbers

Location:Front-right side of main tractor frame, above front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
