Tractor · 2009Unverified

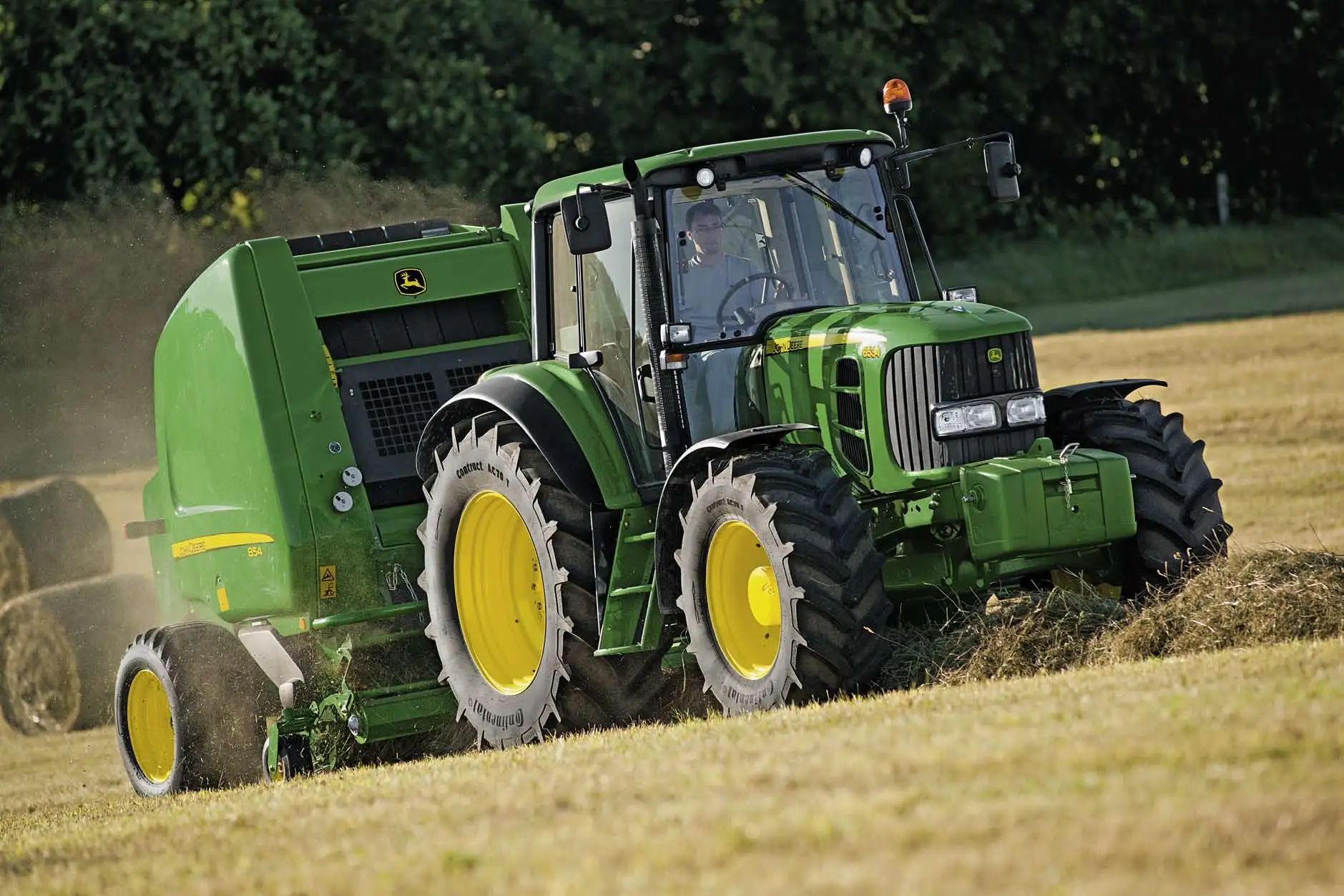

John Deere 6534

Name: John Deere 6534
Brand: John Deere

John Deere 6534 · 125 hp. Reference specifications; pending source verification.

The John Deere 6534 is a tractor with a rated power output of 125 hp, placing it at the higher end of its class. Production of the 6534 model spanned 2009 to 2011. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. Its operating weight is listed as 5166 kg, making it suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

125 hp

Weight

5166 kg

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

125 hp

Recorded weight

5166 kg

Transmissions

12-speed synchronized

Production years

2009-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Four-wheel driveReference

Differential lockrear electro-hydraulic wet discReference

Hydraulic wet disc brakesReference

Two-post foldable Roll-Guard ROPS. Cab with air-conditioning optional.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Engine (gross)93.2 kWReference

Engine (net)89.5 kWReference

Engine (max)97.7 kWReference

John DeereReference

turbocharged dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsTier IIIReference

Rated Power (net)89.5 kWReference

Rated Power (gross)93.2 kWReference

Maximum Power (net)94.0 kWReference

Maximum Power (gross)97.7 kWReference

Fuel systemhigh-pressure common rail injectionReference

Cooling systemviscous fanReference

Air cleanerdry elementReference

Rated RPM2300Reference

Firing order1-3-4-2Reference

Starter volts12Reference

Oil capacity16.0 LReference

Oil change500 hReference

Coolant capacity24.0 LReference

Coolant change3000 hReference

Transmission

12-speed synchronizedReference

16-speed power shuttleReference

16-speed partial power shiftReference

24-speed partial power shiftReference

TransmissionJohn Deere SyncroPlusReference

TypesynchronizedReference

Gears12 forward and 4 reverseReference

Clutchdual 225mm wet disc PermaClutchReference

Oil capacity50.0 LReference

Three gears (1-3), plus reverse (R) in four ranges (A-D).Reference

TransmissionJohn Deere PowrReverserReference

Typepower shuttleReference

Gears16 forward and reverseReference

The PowrReverser transmission adds a left-hand shuttle lever to the SynchroPlus transmission. Reverse gear is replaced with a fourth gear in each range. Reverse speeds slightly higher than the matching forward speed.Reference

TransmissionJohn Deere PowrQuad PlusReference

Typepartial power shiftReference

Four gears (1-4) in four ranges (A-D) with left-hand shuttle lever. Power shift between gears. Clutch must be used to shift between ranges. Reverse speeds are slightly higher than forward speeds. Optional creeper provides an additional 12 speeds in ranges A-C, from 0.26 kph to 1.5 kph. PowrQuad Plus provides push-button gear shifting on the range-shift lever.Reference

Gears24 forward and reverseReference

Four gears (1-4) in six ranges (A-F) with left-hand shuttle lever. Power shift between gears. Clutch must be used to shift between ranges. Reverse speeds are slightly higher than forward speeds. Optional creeper provides an additional 12 speeds in ranges A-C, from 0.16 kph to 1.12 kph. PowrQuad Plus provides push-button gear shifting on the range-shift lever.Reference

Capacities

Fuel207.0 LReference

Optional Fuel249.8 LReference

PTO & Hydraulics

Hydraulic system50.0 LReference

Typeconstant flow load sensingReference

Capacity50.0 LReference

Pressure200.0 barReference

Pump flow81.0 lpmReference

Rear TypeIIReference

Rear TypeII/IIIN (optional)Reference

Controlload and depth control with electronic lower-link sensingReference

Rear lift5080 kgReference

Rear lift5833 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/540E/1000Reference

Engine RPM540@2143Reference

Engine RPM540E@1684Reference

Engine RPM1000@2208Reference

Front PTO Type1000Reference

Dimensions

Wheelbase264 cmReference

Weight5166 kgReference

Front tire420/70R28Reference

Rear tire18.4R38Reference

Standard tires (ag)Front: 420/70R28. Rear: 18.4R38Reference

Length472 cmReference

Width231 cmReference

Height283 cmReference

Shipping weight5166 kgReference

Max weight8500 kgReference

6534 Serial Numbers

Location:Front-right side of main tractor frame, above front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Optional Charging amps154Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
