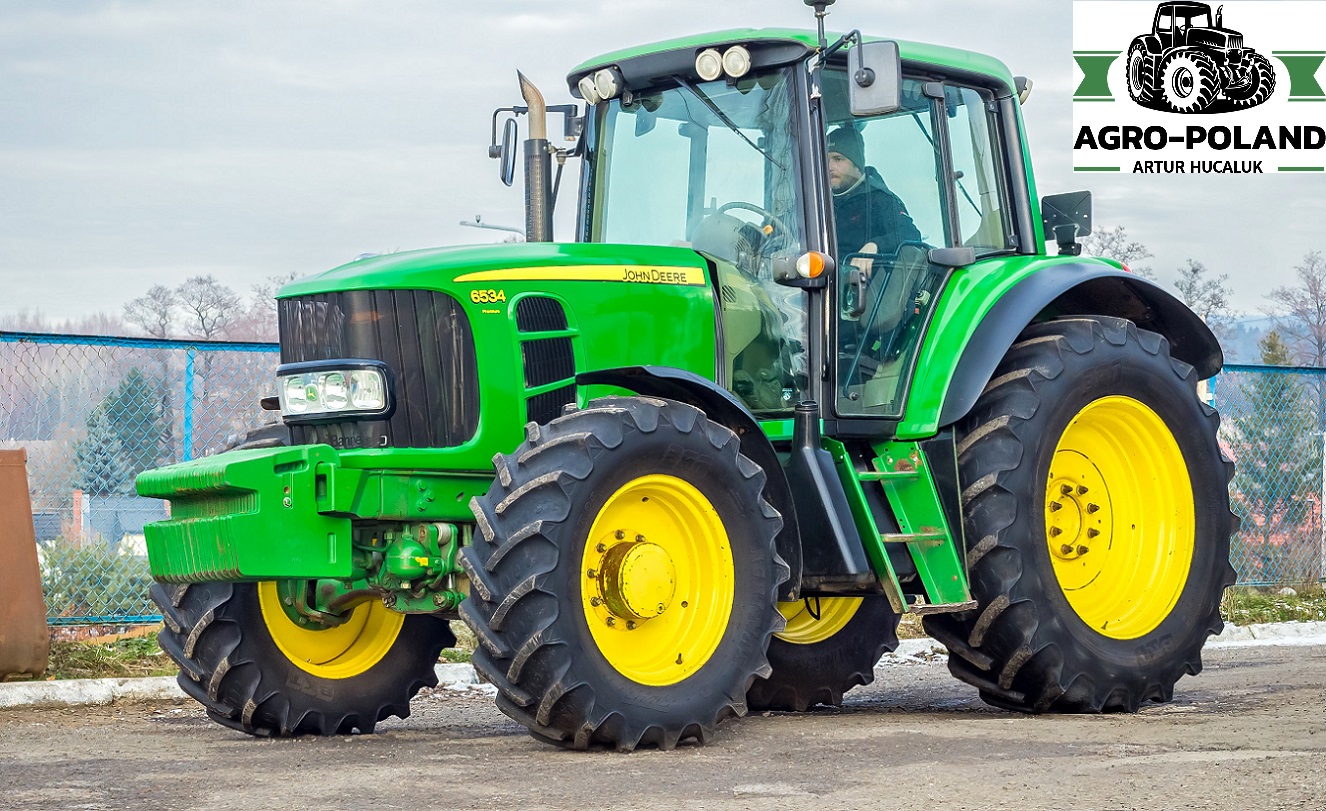

John Deere 6534 Premium
John Deere 6534 Premium · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Weight
4948 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel driveReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)93.2 kWReference
Engine (net)89.5 kWReference
Engine (max)99.9 kWReference
John Deere PowerTech Plus 4V-CRReference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier IIIReference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (net)89.5 kWReference
Rated Power (gross)93.2 kWReference
Maximum Power (net)96.2 kWReference
Maximum Power (gross)99.9 kWReference
Fuel systemhigh-pressure common rail injectionReference
Cooling systemviscous fanReference
Air cleanerdry elementReference
Rated RPM2300Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity16.0 LReference
Oil change500 hReference
Coolant capacity24.0 LReference
Coolant change1500 hReference
Transmission
24-speed partial power shiftReference
36-speed partial power shiftReference
infinitely variable transmission (IVT)Reference
TransmissionJohn Deere PowrQuad PlusReference
Typepartial power shiftReference
Gears24 forward and reverseReference
ClutchPermaClutch II wet discReference
Oil capacity53.0 LReference
Four power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. Optional de-clutch button allows range shifting without using the foot clutch.Reference
TransmissionJohn Deere AutoQuad PlusReference
AutoQuad Plus adds automatic load-matched gear shifting to the PowrQuad transmission. Available in 40kph or 50kph speeds.Reference
TransmissionJohn Deere CreeperReference
Gears36 forward and reverseReference
The optional creeper adds an additional twelve speeds to the PowrQuad or AutoQuad transmission.Reference
TransmissionJohn Deere AutoPowrReference
Typeinfinitely variable transmission (IVT)Reference
Gearsinfinite forward and reverseReference
Oil capacity62.0 LReference
The AutoPowr IVT is controlled by left-hand shuttle and a right-hand speed lever with speed wheel. The speed wheel sets the maximum speed. When set below 2kph, the transmission is automatically in creeper mode. AutoPowr available with 40kph and 50kph maximum speeds.Reference
Capacities
Fuel207.0 LReference
Optional Fuel249.8 LReference
PTO & Hydraulics
Hydraulic system53.0 LReference
IVT Hydraulic system62.1 LReference
Typeload-sensing pressure-flow compensating (PFC)Reference
Capacity53.0 LReference
IVT Capacity62.1 LReference
Valves4 (Max)Reference
Pump flow71.2 lpmReference
Pump flow110.1 lpmReference
Rear TypeIIINReference
Controlload and depth control with electronic lower-link sensingReference
Rear lift (at ends)6586 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/540E/1000Reference
Engine RPM540@2143Reference
Engine RPM540E@1684Reference
Engine RPM1000@2208Reference
Front PTO Type1000Reference
Dimensions
Wheelbase264 cmReference
Weight4948 kgReference
Front tire420/70R28Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 420/70R28. Rear: 18.4R38Reference
Length429 cmReference
Width231 cmReference
Height274 cmReference
Shipping weight4948 kgReference
Max weight9498 kgReference
6534 Premium Serial Numbers
Location:Front-right side of main tractor frame, above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
