Tractor · 1986Unverified

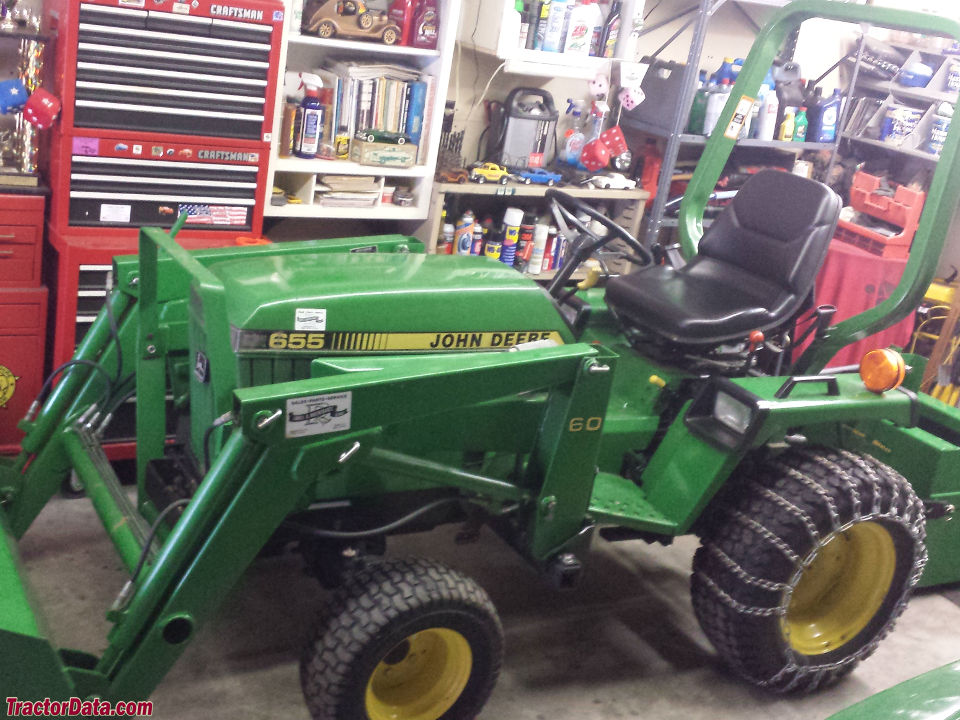

John Deere 655
John Deere 655 — 55 Compact Series · 11 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
11 hp
Weight
1565 to 1635 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Horicon, Wisconsin, USAReference
Original price was $10,000 in 1990Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post Roll-Gard ROPS. Optional canopy and high ROPS with extra headroom. Optional weather enclosure.Reference
Engine
Yanmar 0.7L 3-cyl dieselReference
Engine11.9 kWReference
Yanmar 3TN66UJReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement0.7 LReference
Bore/Stroke66 x 64 mmReference
Power11.9 kWReference
Air cleanerdry elementReference
Pre-heatingglow plugsReference
Compression22.4:1Reference
Rated RPM3200Reference
Operating RPM1400-3425Reference
Starter volts12Reference
Coolant capacity3.8 LReference
Oil capacity2.4 LReference
Transmission
hydrostaticReference
TransmissionSundstrand Series 17Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity17.0 LReference
Oil typeHy-Gard Low-ViscosityReference
Hydrostatic transmission controlled by two right-side foot pedals. Cruise control is standard.Reference
PTO & Hydraulics
PTO (claimed)7.9 kWReference
Hydraulic system17.0 LReference
Typeopen centerReference
Capacity17.0 LReference
Pressure141.3 barReference
Valves0 to 2Reference
Pump flow15.1 lpmReference
Total flow15.1 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)356 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@3200Reference
Mid PTOindependentReference
Mid PTO Type2100Reference
Engine RPM2100@3200Reference
Capacities
Fuel15.1 LReference
Front axle2.1 LReference
Dimensions
Wheelbase129 cmReference
Weight1565 to 1635 poundsReference
Front tire4.00-12Reference
2WD Rear tire7.2-16Reference
Weight92 kgReference
2WD Standard tires (ag)Front: 4.00-12. Rear: 7.2-16Reference
4WD Standard tires (ag)Front: 5-12. Rear: 7.2-16Reference
4WD Optional tires (ag)Front: 6-12. Rear: 8.3-16Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear27x10.50-15Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear31x12.50-15Reference
Length213 cmReference
Length256 cmReference
Width103 cmReference
Width121 cmReference
Height (hood)129 cmReference
Height (ROPS)188 cmReference
2WD Weight709 kgReference
4WD Weight741 kgReference
2WD Clearance (front axle)27 cmReference
4WD Clearance (front axle)22 cmReference
John Deere 655 attachments
50" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
655 Serial Number Location
Serial number plate on the rear of the John Deere 655, below the PTO shaft.Reference
655 Serial Numbers
1986360001Reference
1987420001Reference
1988475001Reference
1989600001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA491Reference
Battery volts12Reference
Attachment overview
50" mid-mount mower deckReference
SnowblowerReference
BladeReference
John Deere 51 loaderReference
John Deere 60 loaderReference
50" Mower deck
Typemid-mount John DeereReference
Type3-blade with hydraulic liftReference
Cutting width127 cmReference
Overall width154 cmReference
Cut height3 to 19 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
