Tractor · 1993Unverified

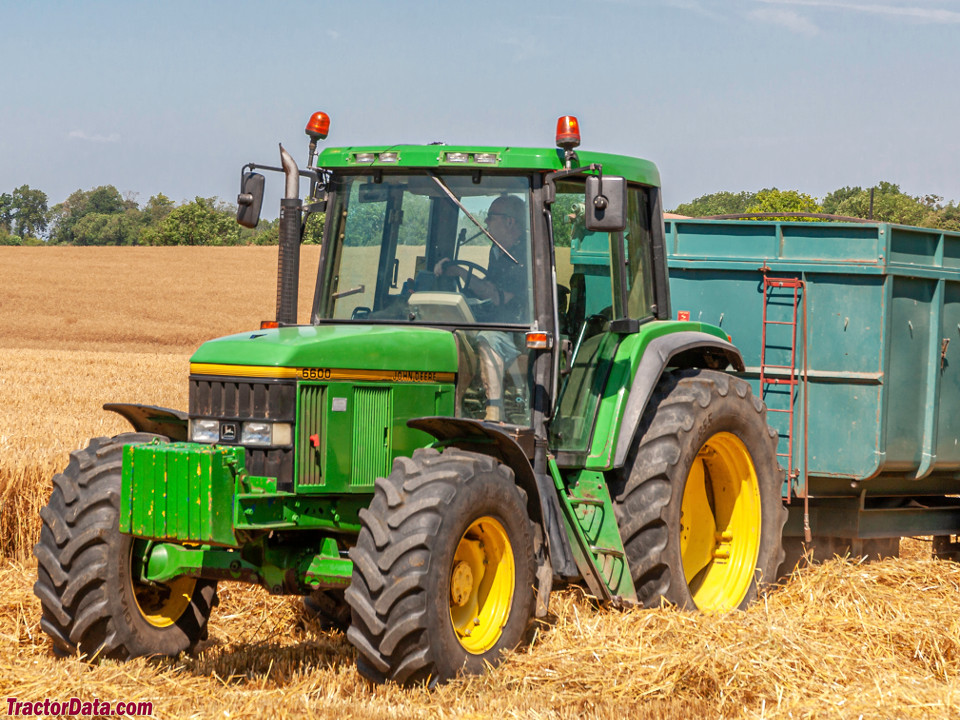

John Deere 6600
John Deere 6600 — Row-Crop tractor · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
4649 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
John Deere 5.9L 6-cyl dieselReference
Fuel tank207.0 LReference
Engine82.0 kWReference
John Deere 6068Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke106 x 110 mmReference
Power82.0 kWReference
Rated RPM2100Reference
Torque455.1 NmReference
Torque RPM1400Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed partial power shiftReference
16-speedReference
24-speedReference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears20 forward and reverseReference
Clutchwet discReference
Four power shift gears (1-4) in five ranges (A-E) with power shuttle.Reference
Gears16 forward and 12 reverseReference
Gears24 forward and 16 reverseReference
PTO & Hydraulics
Typeclosed centerReference
Pressure200.0 barReference
Pump flow60.2 lpmReference
Pump flow96.1 lpmReference
Rear TypeII/IIINReference
Rear lift6178 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Engine RPM540@2017Reference
Engine RPM540E@1684Reference
Engine RPM1000@2208Reference
Front PTOindependentReference
Dimensions
Wheelbase264 cmReference
Weight4649 kgReference
Front tire16.9R26Reference
Rear tire18.8R38Reference
Ag front16.9R26Reference
Ag rear18.8R38Reference
Length450 cmReference
Width231 cmReference
Height (cab)281 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Charging amps120Reference
Battery CCA850Reference
Battery volts12Reference
Battery AH174Reference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
