Tractor · 1998Unverified

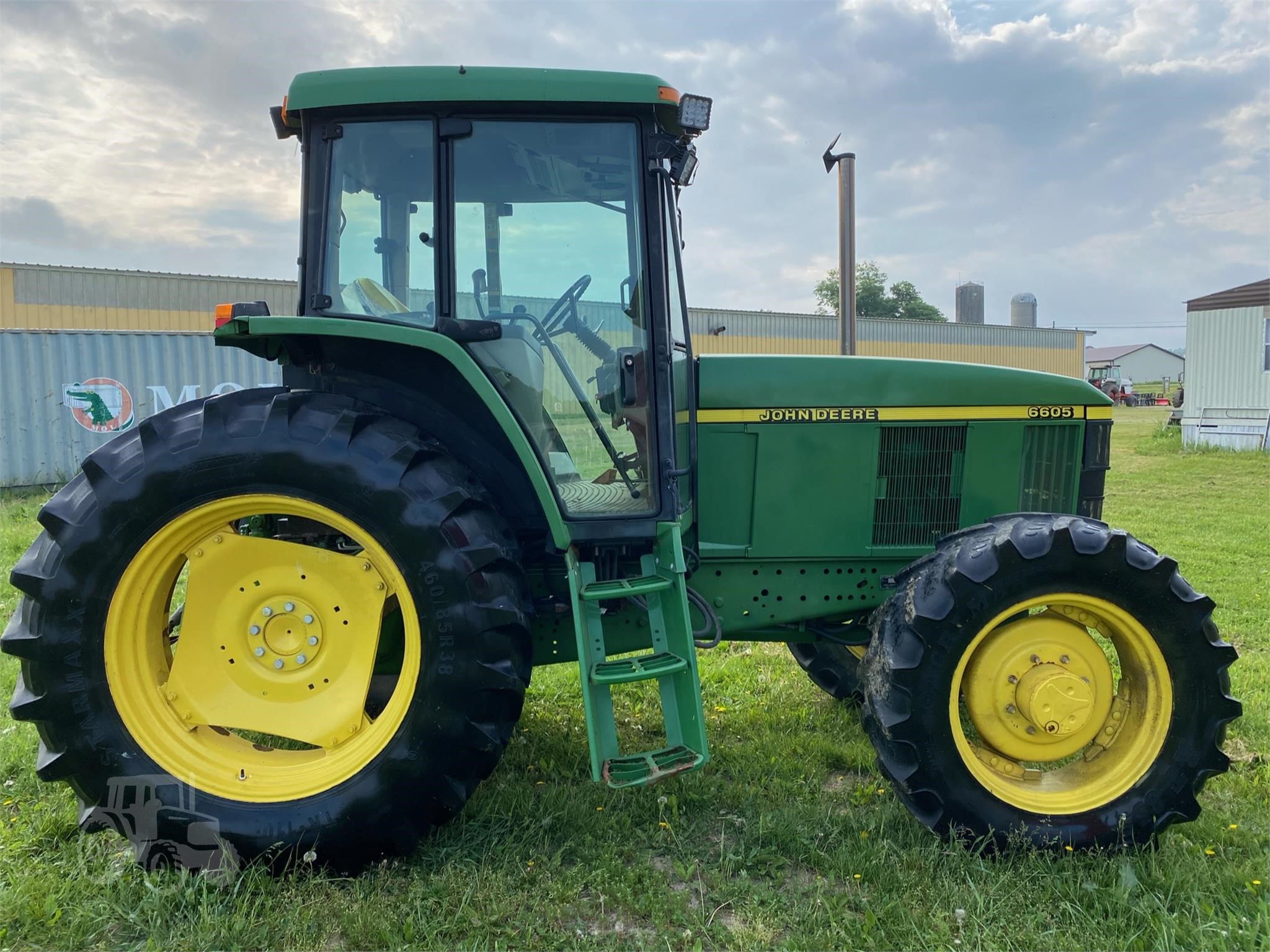

John Deere 6605
John Deere 6605 — Advantage Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
8776 to 10252 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Original price was $36,900 in 1999Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Advantage Cab optional with air-conditioning.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank207.0 LReference
John Deere 6068Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Air cleanerdry dual elementReference
Compression17:1Reference
Rated RPM2100Reference
Idle RPM825-2510Reference
Operating RPM1000-2300Reference
Torque494.9 NmReference
Torque RPM1400Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Starter power3.4 kWReference
Oil capacity12.0 LReference
ROPS Coolant capacity13.0 LReference
Cab Coolant capacity15.5 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
12-speed fully synchronizedReference
16-speed power shuttleReference
TransmissionJohn Deere SyncroVantageReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Oil capacity51.9 LReference
Three gears (1-3) plus reverse (R) with four ranges (A-D).Reference
TransmissionJohn Deere SyncroVantage Power ReverserReference
Typepower shuttleReference
Gears16 forward and reverseReference
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Power shuttle allows direction changes without using the clutch.Reference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
Typeconstant-flow load-sensingReference
Pressure172.4 barReference
Valves1Reference
Total flow66.2 lpmReference
Rear TypeIIReference
Controlposition control with optional draft controlReference
Rear lift2683 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2143Reference
Engine RPM1000@2208Reference
Dimensions
2WD Wheelbase264 cmReference
4WD Wheelbase270 cmReference
Weight8776 to 10252 poundsReference
Front tire10.00-16Reference
Rear tire18.4-38 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 18.4-38 (2WD)Reference
Standard tires (ag)Front: 12.4-28. Rear: 18.4-38 (4WD)Reference
Length450 cmReference
Flange rear axleReference
Optional rack-and-pinion rear axle78 by 2555 mmReference
Rear tread151/161/171/181/191 cmReference
Rear tread156 to 270 cmReference
Shipping3980 kgReference
Shipping4246 kgReference
Shipping4380 kgReference
Shipping4650 kgReference
Max Drawbar1399 kgReference
Max Drawbar1598 kgReference
Max Drawbar800 kgReference
Max rear axle6500 kgReference
Steering wheel219 cmReference
6605 Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above the front axle.Reference
1998206500Reference
1999233000Reference
2000261400Reference
2002322111Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery CCA1230Reference
Battery volts12Reference
Battery AH154Reference
Capacities
Max capacity7994 kgReference
John Deere 6605 Height
ROPS286 cmReference
Exhaust273 cmReference
Speeds
With 18.4-38 rear tires.Reference
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
