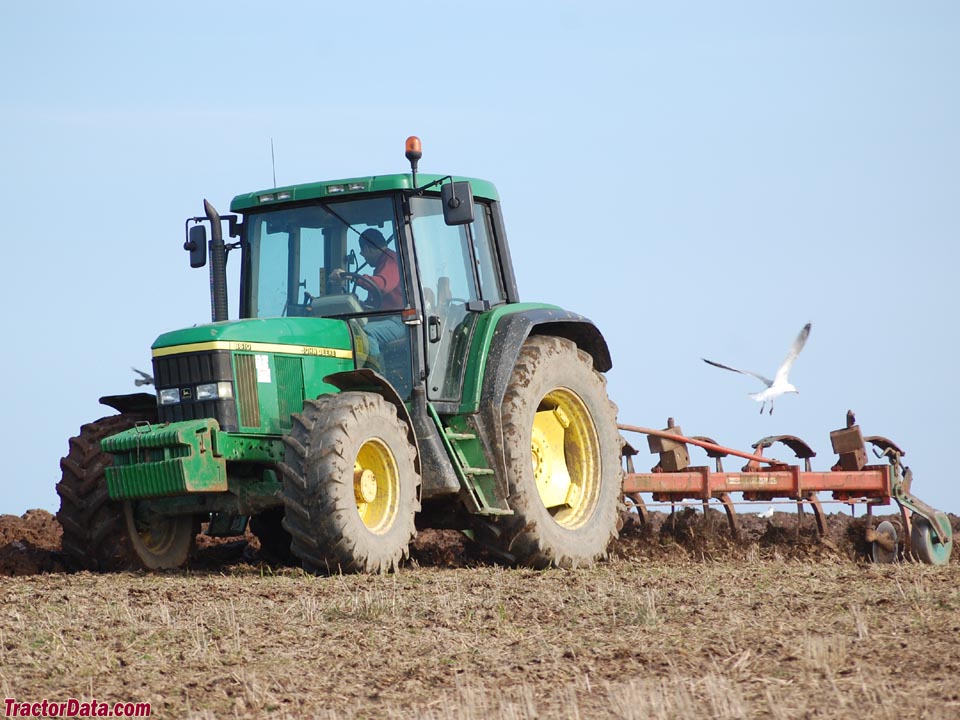

John Deere 6610
John Deere 6610 — Row-Crop tractor · 101 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
101 hp
Weight
4717 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockelectro-hydraulic wet discReference
Power steeringReference
Hydraulic wet disc brakesReference
TechCenter cab standard with air-conditioning.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank207.0 LReference
Engine85.0 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
inlineReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power85.0 kWReference
Rated RPM2300Reference
Torque486.8 NmReference
Torque RPM1300Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Starter power3.1 kWReference
Oil capacity19.7 LReference
Coolant capacity12.9 LReference
Coolant capacity15.5 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
24-speed four-speed power shiftReference
TransmissionJohn Deere PowrQuadReference
Typefour-speed power shiftReference
Gears24 forward and reverseReference
Four power shift gears (1-4) in four or six synchronized ranges (A-D/F) with power shuttle. Optional PowrQuad Plus provides push-button gear shifting on the range lever. Available creeper provides an addition 12 speeds forward and reverse.Reference
TransmissionJohn Deere AutoQuad IIReference
Four push-button power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. Automatic shifting and cruise control. Available creeper provides an addition 12 speeds forward and reverse.Reference
PTO & Hydraulics
PTO (claimed)75.3 kWReference
Typeclosed-center load sensingReference
Pressure200.0 barReference
Valves4Reference
Pump flow62.8 lpmReference
Pump flow96.1 lpmReference
Rear TypeII/IIINReference
Controlelectronic lower-link draft sensingReference
Rear Armstelescopic link endsReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2143Reference
Engine RPM540E@1684Reference
Engine RPM1000@2208Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Engine RPM1000@2185Reference
Dimensions
Wheelbase264 cmReference
Weight4717 kgReference
Front tire16.9R26Reference
Rear tire18.4R38Reference
Ag front16.9R26Reference
Ag rear18.4R38Reference
Length453 cmReference
Width231 cmReference
Height (cab)280 cmReference
Shipping weight4717 kgReference
Max weight8500 kgReference
Clearance (front axle)52 cmReference
Front tread161 to 211 cmReference
Rear tread161 to 213 cmReference
John Deere 6610 attachments
front-end loaderReference
6610 Serial Numbers
Location:Plate located on right side of main tractor frame.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging amps115Reference
Battery volts12Reference
Battery AH154Reference
Battery AH174Reference
Speeds
40 kph transmission with 16.9-38 rear tires. Reverse speeds are about 15% faster than forward.Reference
