Tractor · 1989Unverified

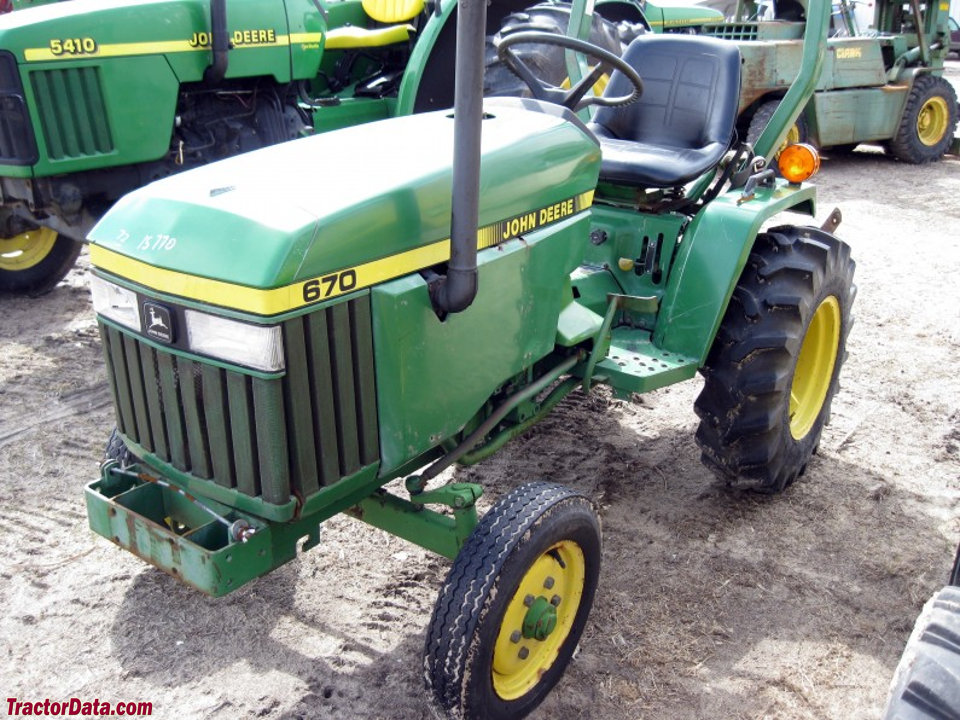

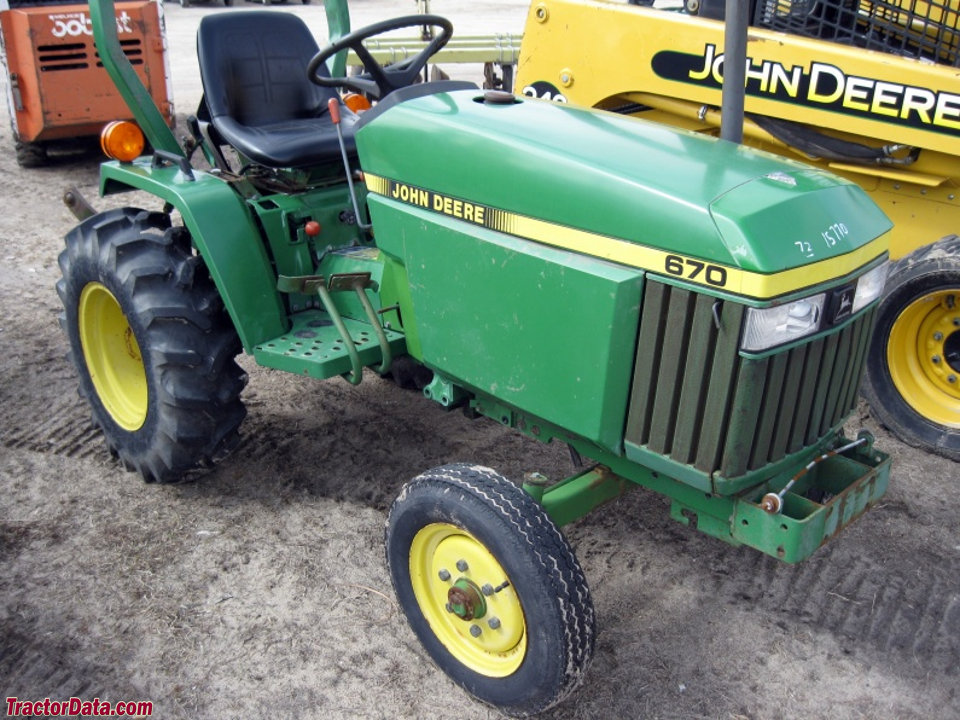

John Deere 670
John Deere 670 — 70 Compact Series · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
1730 to 1860 pounds
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerYanmarReference
Compact Utility tractorReference
Built in JapanReference
Original price$11,800 (1997 2WD )Reference
Original price$13,550 (1997 4WD )Reference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Dry shoe brakesReference
Two-post ROPS.Reference
Engine
Yanmar 0.9L 3-cyl dieselReference
Engine (gross)14.4 kWReference
Engine (net)13.8 kWReference
Yanmar 3TNA72Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 72 mmReference
Power (net)13.8 kWReference
Power (gross)14.4 kWReference
Fuel systemindirect injectionReference
Air cleanerdry elementReference
Pre-heatingglow plugsReference
Compression22.3:1Reference
Rated RPM2850Reference
Starter volts12Reference
Oil capacity2.6 LReference
Coolant capacity3.8 LReference
Transmission
8-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears8 forward and 2 reverseReference
Clutch215mm dry discReference
Oil capacity15.1 LReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
PTO (claimed)11.9 kWReference
Hydraulic system15.1 LReference
Typeopen centerReference
Capacity15.1 LReference
Pressure141.3 barReference
Rear valves2Reference
Mid valves2Reference
Pump flow20.8 lpmReference
Total flow20.8 lpmReference
Total flow37.1 lpmReference
Steering flow16.3 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)358 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540Reference
Engine RPM540@2600Reference
Mid PTOliveReference
Mid PTO Type2100Reference
Engine RPM2100@2600Reference
Capacities
Fuel23.8 LReference
Front axle3.0 LReference
Dimensions
Wheelbase142 cmReference
Weight1730 to 1860 poundsReference
Front tire5.00-12Reference
2WD Rear tire9.5-16Reference
Weight156 kgReference
Weight356 kgReference
2WD Standard tires (ag)Front: 5.00-12. Rear: 9.5-16Reference
4WD Standard tires (ag)Front: 6-12. Rear: 9.5-16Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear31x15.5-15Reference
Length276 cmReference
Width108 cmReference
2WD Weight784 kgReference
4WD Weight843 kgReference
Clearance (drawbar)24 cmReference
2WD Front tread95 cmReference
4WD Front tread93 cmReference
Rear tread83 to 102 cmReference
John Deere 670 attachments
60" mid-mount mower deckReference
bladeReference
front-end loaderReference
backhoeReference
670 Serial Number Location
Serial number plate on the rear of the tractor, below the PTO.Reference
670 Serial Numbers
19891001Reference
1990010001Reference
1991104013Reference
1992114751Reference
1993120001Reference
1994130001Reference
1995140001Reference
1996150001Reference
1997160001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps20Reference
Battery CCA420Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
BladeReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount John Deere 160Reference
Type3-bladeReference
Cutting width152 cmReference
Overall width184 cmReference
Cut height2 to 22 cmReference
John Deere 7 Backhoe
Backhoe typeJohn Deere 7 BackhoeReference
Transport height175 cmReference
Bucket width22 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
Bucket width48 cmReference
2-Foot flat digging depth228 cmReference
Reach from pivot289 cmReference
Loading height177 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force496 kgReference
Dipperstick force882 kgReference
John Deere 670 Height
Hood120 cmReference
ROPS194 cmReference
Exhaust185 cmReference
Speeds
With 9.5-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
