Tractor · 1997Unverified

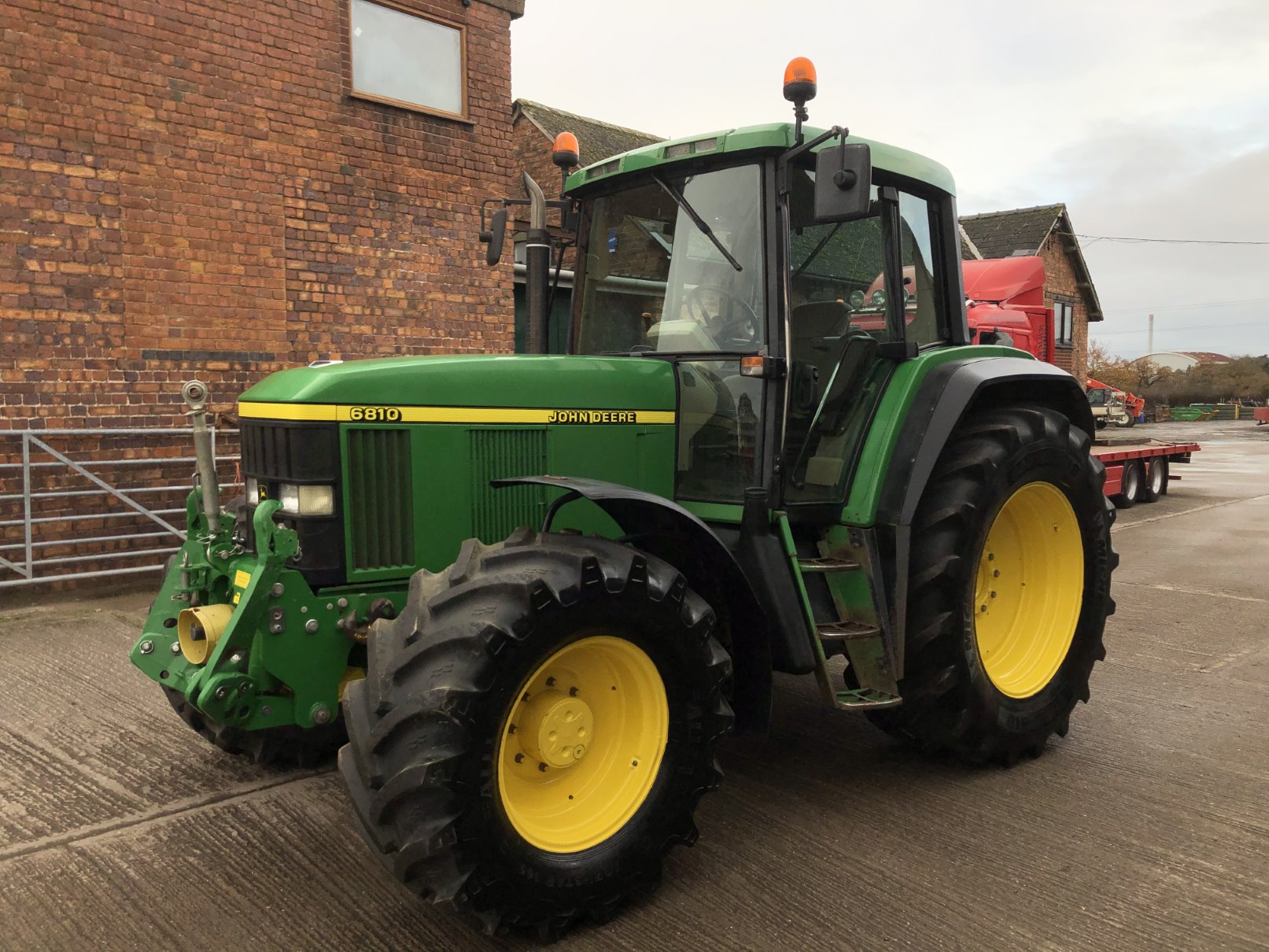

John Deere 6810
John Deere 6810 — Row-Crop tractor · 113 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
113 hp
Weight
5171 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockelectro-hydraulic wet discReference
Power steeringReference
Hydraulic wet disc brakesReference
TechCenter cab standard with air-conditioning.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank207.0 LReference
Fuel tank249.8 LReference
Engine93.2 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
inlineReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power93.2 kWReference
Rated RPM2100Reference
Torque583.1 NmReference
Torque RPM1400Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Starter power3.1 kWReference
Oil capacity19.7 LReference
Coolant capacity15.5 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
20-speedReference
18-speed full power shiftReference
TransmissionJohn Deere PowrQuadReference
Gears20 forward and reverseReference
TransmissionJohn Deere PowrShiftReference
Typefull power shiftReference
Gears18 forward and 7 reverseReference
TransmissionJohn Deere AutoPowrReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)84.3 kWReference
Typeclosed-center load sensingReference
Pressure200.0 barReference
Valves4Reference
Pump flow62.8 lpmReference
Pump flow96.1 lpmReference
Rear TypeII/IIINReference
Controlelectronic lower-link draft sensingReference
Rear Armstelescopic link endsReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Engine RPM540@1995Reference
Engine RPM540E@1743Reference
Engine RPM1000@1995Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase264 cmReference
Weight5171 kgReference
Front tire420/70R28Reference
Rear tire520/70R38Reference
Ag front420/70R28Reference
Ag rear520/70R38Reference
Length456 cmReference
Width236 cmReference
Height (cab)288 cmReference
Shipping weight5171 kgReference
Max weight10001 kgReference
Clearance (front axle)54 cmReference
Front tread170 to 211 cmReference
Rear tread172 to 202 cmReference
John Deere 6810 attachments
front-end loaderReference
6810 Serial Numbers
Location:Plate located on right side of main tractor frame.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging amps115Reference
Battery volts12Reference
Battery AH154Reference
Battery AH174Reference
Speeds
50 KPH transmission with 18.4-38 rear tires. Reverse speeds are 15% faster than forward.Reference
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
