Tractor · 2001Unverified

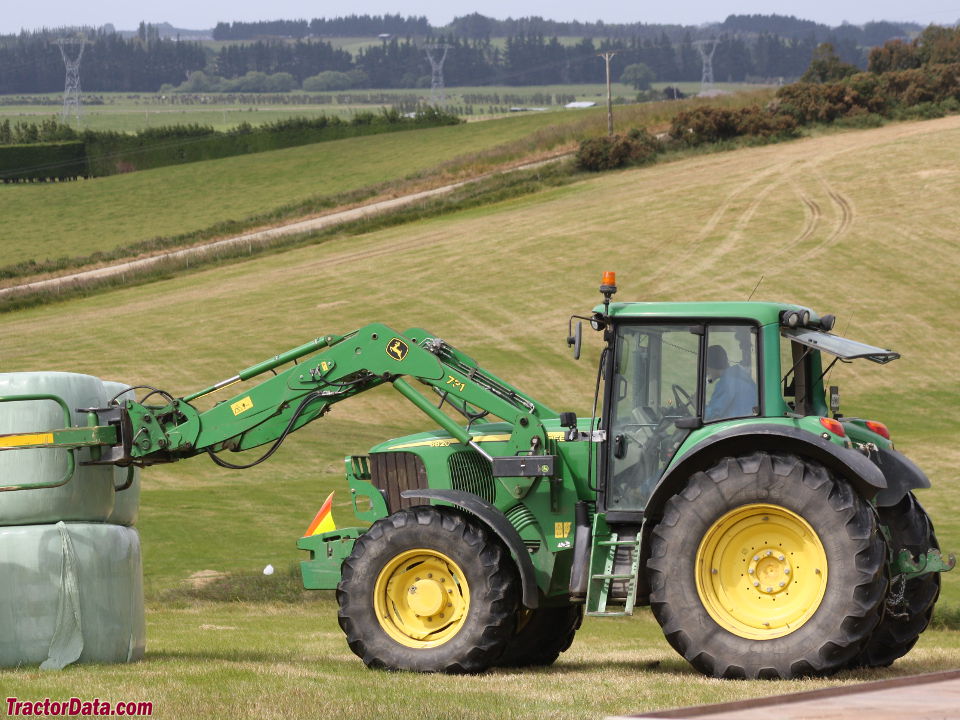

John Deere 6820 Premium
John Deere 6820 Premium — Model year 2001-20032003-2006 · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
5581 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank250.2 LReference
Engine (net)100.7 kWReference
John Deere 6068TReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (net)100.7 kWReference
Rated RPM2100Reference
Idle RPM850-2250Reference
Operating RPM1300-2100Reference
Torque618.3 NmReference
Torque RPM1400Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
20-speed partial power shiftReference
TransmissionPowrQuad PlusReference
Typepartial power shiftReference
Gears20 forward and reverseReference
TransmissionAutoQuad IIReference
PTO & Hydraulics
PTO (claimed)91.0 kWReference
Typeclosed center load sensingReference
Pressure200.0 barReference
Pump flow96.1 lpmReference
Rear TypeII/IIINReference
Rear lift8400 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Weight5581 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
5581 kgReference
Max front axle4399 kgReference
Max front axle4799 kgReference
Max rear axle7795 kgReference
6820 Premium Serial Numbers
Location:Right side of main tractor frame.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging amps115Reference
Battery volts12Reference
Capacities
Max capacity10498 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
