Tractor · 2006Unverified

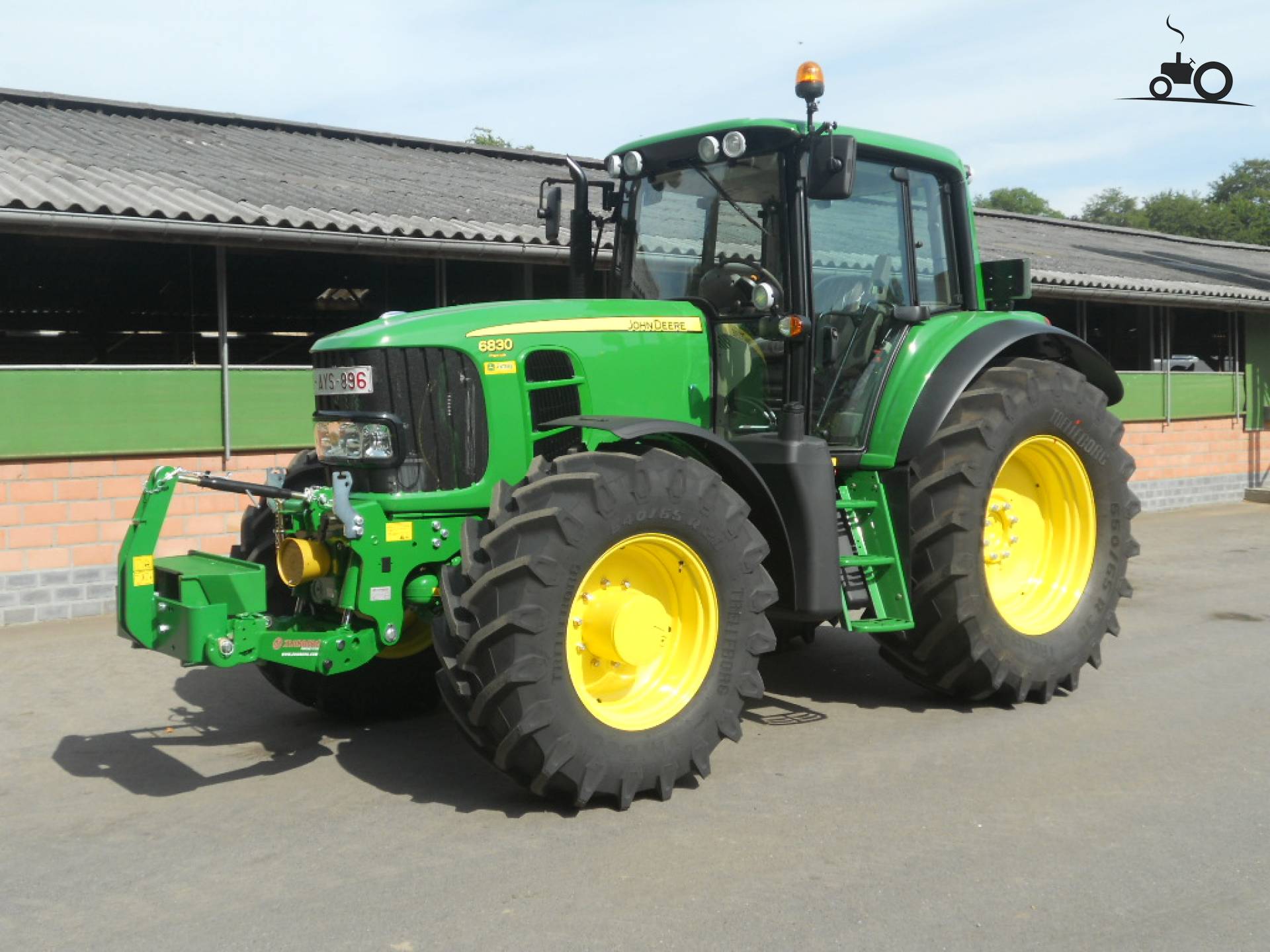

John Deere 6830
John Deere 6830 — Model year 2006-20082009-2011 · 140 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
140 hp
Weight
5633 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel driveReference
Differential lockrear electro-hydraulic wet discReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine (gross)104.4 kWReference
Engine (net)100.7 kWReference
Engine (max)109.6 kWReference
John Deere 6068HL281Reference
turbocharged dieselReference
6-cylinder 12-valveReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier IIIReference
Rated Power (net)100.7 kWReference
Rated Power (gross)104.4 kWReference
Maximum Power (net)105.1 kWReference
Maximum Power (gross)109.6 kWReference
Fuel systemhigh-pressure common rail injectionReference
Cooling systemviscous fanReference
Air cleanerdry elementReference
Rated RPM2100Reference
Idle RPM850-2250Reference
Operating RPM1500-2100Reference
Torque625.1 NmReference
Torque RPM1500Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity19.5 LReference
Oil change500 hReference
Coolant capacity28.0 LReference
Coolant change3000 hReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
20-speed partial power shiftReference
32-speed partial power shiftReference
TransmissionJohn Deere PowrQuad PlusReference
Typepartial power shiftReference
Gears20 forward and reverseReference
Clutchdual 225mm wet disc PermaClutchReference
Oil capacity50.0 LReference
Four gears (1-4) in five ranges (A-E) with left-hand shuttle lever. Push-button power shift between gears. Clutch must be used to shift between ranges. Reverse speeds are about 4% faster than corresponding forward speeds.Reference
TransmissionJohn Deere PowrQuad Plus CreeperReference
Gears32 forward and reverseReference
Optional creeper adds an additional twelve speeds to the PowrQuad transmission in ranges A-C.Reference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
Hydraulic system50.0 LReference
Typeconstant flowReference
Typepressure and flow compensated optional (PFC)Reference
Capacity50.0 LReference
Pressure200.0 barReference
Pump flow81.0 lpmReference
PFC Pump flow110.1 lpmReference
Rear TypeII/IIINReference
Controlload and depth control with electronic lower-link sensingReference
Rear lift7588 kgReference
Rear lift8563 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/540E/1000Reference
Engine RPM540@1995Reference
Engine RPM540E@1743Reference
Engine RPM1000@1995Reference
Front PTO Type1000Reference
Capacities
Fuel249.8 LReference
Optional Fuel325.1 LReference
Max capacity10001 kgReference
Dimensions
Wheelbase264 cmReference
Weight5633 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Length475 cmReference
Width238 cmReference
Height292 cmReference
Front tread162 to 211 cmReference
Rear tread162 to 202 cmReference
Shipping5633 kgReference
Max rear axle7500 kgReference
6830 Serial Numbers
Location:Front-right side of main tractor frame, above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Optional Charging amps154Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
