Tractor · 2001Unverified

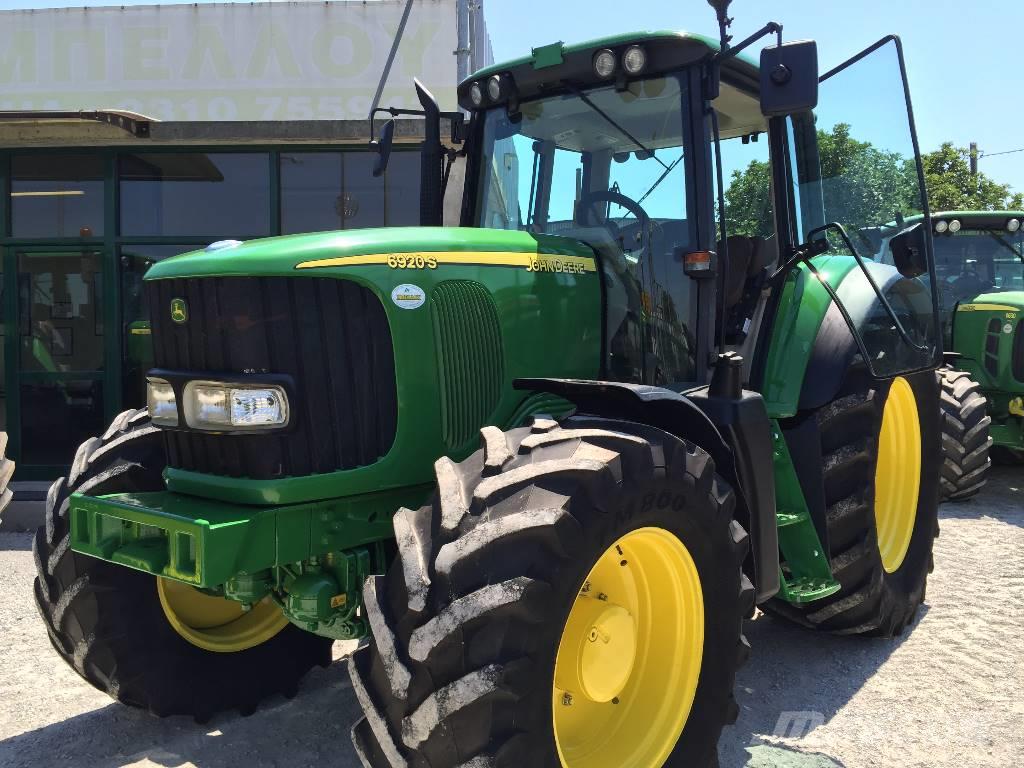

John Deere 6920S Premium

Name: John Deere 6920S Premium
Brand: John Deere

John Deere 6920S Premium — Model year 2001-20032003-2006 · 160 hp. Reference specifications; pending source verification.

The John Deere 6920S Premium is a tractor with a rated power output of approximately 160 hp, placing it at the higher end of its class. This model was manufactured between 2001 and 2006. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The tractor has a listed operating weight of 5880 kg and is suitable for operations covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

160 hp

Weight

5880 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

160 hp

Recorded weight

5880 kg

Transmissions

20-speed partial power shift

Production years

2001-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Cab standard.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Fuel tank250.2 LReference

Engine (net)119.3 kWReference

John Deere 6068TReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke106 x 127 mmReference

Rated Power (net)119.3 kWReference

Rated RPM2100Reference

Idle RPM850-2250Reference

Operating RPM1300-2100Reference

Torque684.8 NmReference

Torque RPM1400Reference

Firing order1-5-3-6-2-4Reference

StarterelectricReference

Starter volts12Reference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Transmission

20-speed partial power shiftReference

TransmissionPowrQuad PlusReference

Typepartial power shiftReference

Gears20 forward and reverseReference

TransmissionAutoQuad IIReference

PTO & Hydraulics

PTO (claimed)105.1 kWReference

PTO (claimed)101.4 kWReference

Typeclosed center load sensingReference

Pressure200.0 barReference

Pump flow96.1 lpmReference

Rear TypeII/IIINReference

Rear lift8400 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Weight5880 kgReference

Front tire16.9R28Reference

Rear tire20.8R38Reference

Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference

5880 kgReference

Max front axle4599 kgReference

Max front axle4998 kgReference

Max rear axle7795 kgReference

6920S Premium Serial Numbers

Location:Right side of main tractor frame.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Charging amps115Reference

Battery volts12Reference

Capacities

Max capacity10999 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
